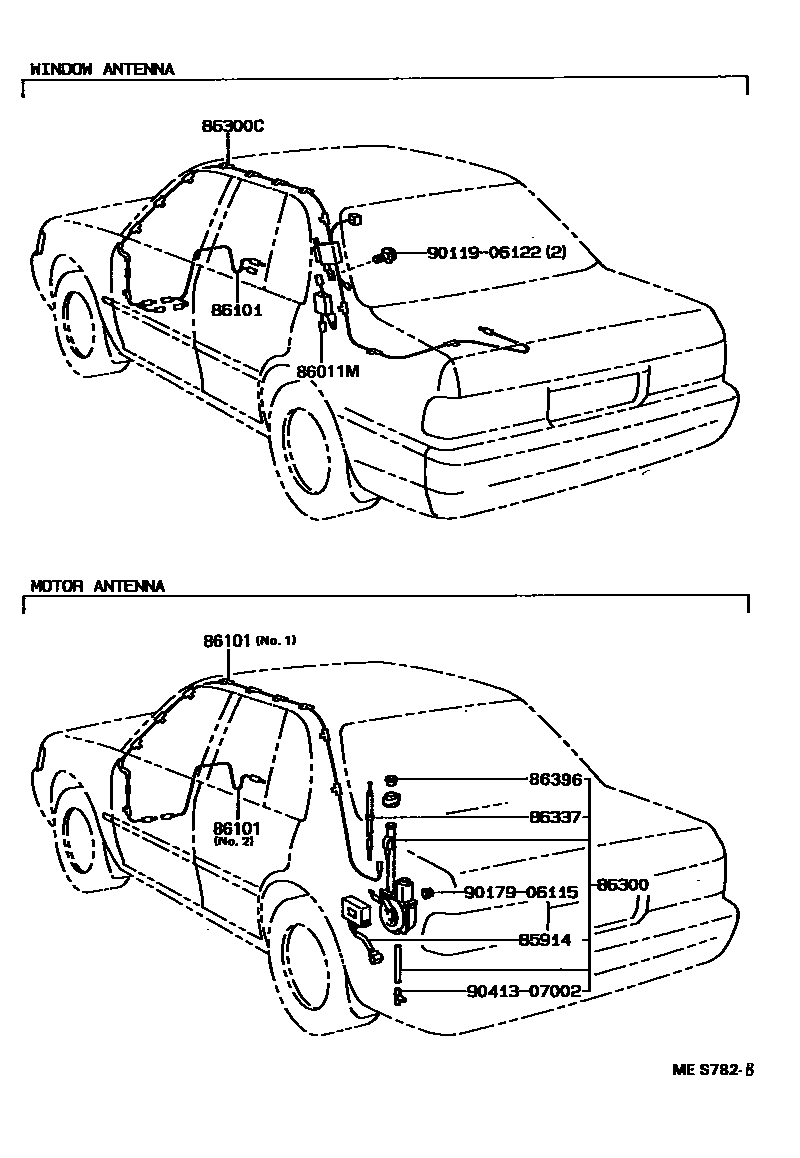

ANTENNA

0001 1 0002 1 0003 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-33010iJZS133..4FC199110-199205

main85914-33010iJZS133..4FC199205-199210

86011MFILTER, NOISE

main90980-05092iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)199110

main90980-05230iJZS131,LS131..SALEX..(TDEC,TWC)199110-199512

main90980-05233iJZS131..SALEX;GS130,131,LS130,131,YS130..SED199110-199512

86101CORD SUB-ASSY, ANTENNA

main86101-30310iJZS133..4FC199110-199205

main86101-30310iJZS133..4FC199205-199210

main86101-30360iGS130..DLX,STD199110-199512

sub86101-30361

main86101-30360iGS136,LS136..DLX,SDX199110-199704

sub86101-30361

main86101-30361iGS136199704

main86101-30370iJZS131,LS131..SALEX..(TDEC,TWC)199110-199512

main86101-30410iGS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

sub86101-31021

main86101-30420iJZS133..4FC199205-199210

main86101-30420iJZS133..4FC199110-199205

main86101-31010iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)199110-199704

main86101-31011iGS13#,JZS130,LS130199704

main86101-31020iGS130,JZS130,LS130..WG199110-199704

sub86101-31021

main86101-31021iGS130,JZS130,LS130199704

main86101-31040iJZS130..ROY199512-199704

main86101-31041iJZS130..ROY199704

main86101-31050iJZS130..ROY199512-199704

main86101-31051iJZS130..ROY199704

main86101-91712iGS136..STD199110-199308

86300ANTENNA ASSY, W/HOLDER

main86300-30750iJZS133..4FC199110-199205

main86300-30750iJZS133..4FC199205-199210

main86300-91708iGS136..STD199110-199308

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30710iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

main86300-30720iGS130,YS130..DLX,DLXA,STD199110-199512

main86300-30730iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

main86300-30740iJZS131,LS131..SALEX199110-199308

main86300-30741iJZS131,133..ROY199308-199512

main86300-30820iGS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX)199110-199512

main86300-31040iGS130,JZS130,LS130..WG199110

main86300-31050iGS130,JZS130,LS130..WG199110-199704

main86300-31051iGS130,JZS130,LS130199704

main86300-31060iJZS130..ROY199512

main86300-31090iJZS130..ROY199512-199704

main86300-31091iJZS130..ROY199704

main86300-3A030iJZS131..SALEX199308-199512

86337ROD & PIPE, SEALED W/CABLE

main86337-30750iJZS133..4FC199110-199205

main86337-30750iJZS133..4FC199205-199210

86396NUT, ANTENNA

main86396-30040iJZS133..4FC199110-199205

main86396-30040iJZS133..4FC199205-199210

9011906122

main90119-06122

9017906115

main90179-06115

9041307002

main90413-07002

10 parts on this diagram · 3 diagrams in section
