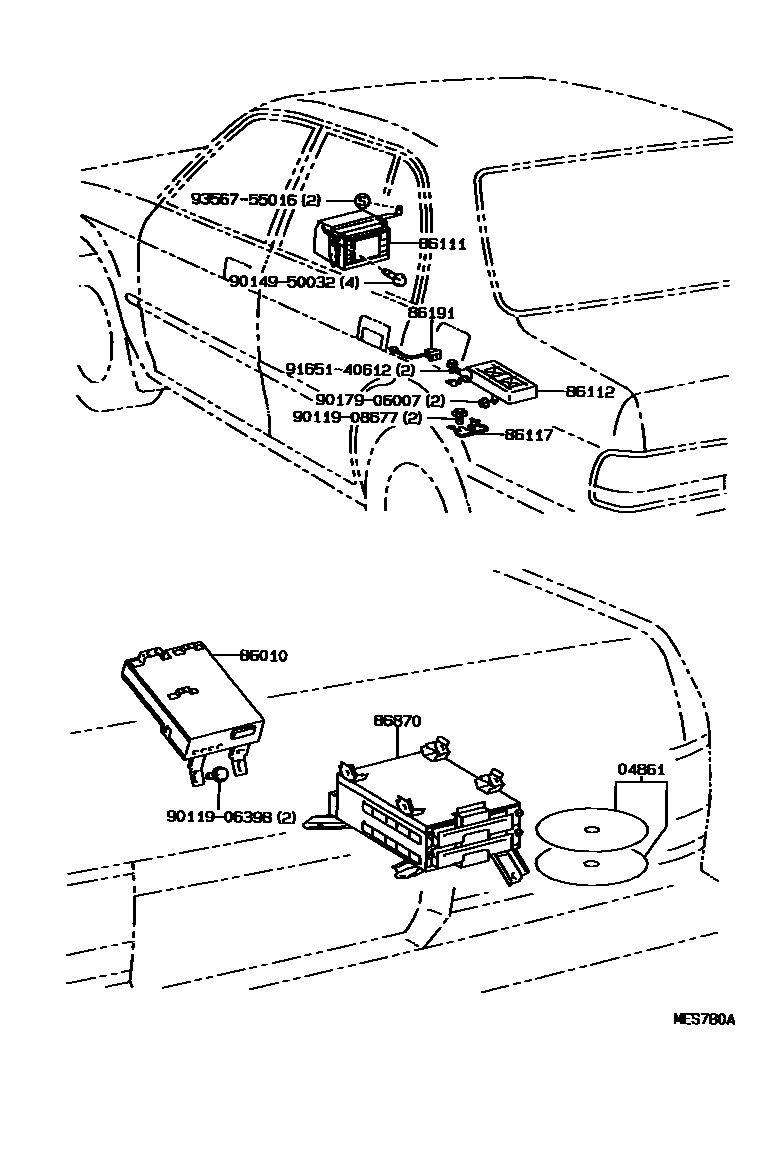

NAVIGATION & FRONT MONITOR DISPLAY

04861DISK KIT, DISC PLAYER

main86807-24010iJZS131,133,135..4FC..(ROY,ROYG)199401-199412

main86807-24020iJZS131,133,135..4FC..(ROY,ROYG)199509-199512

main86807-30010iJZS131,133,135..4FC..(ROY,ROYG)199110-199308

main86807-30020iJZS131,133,135..4FC..(ROY,ROYG)199308-199401

main86807-30030iJZS131,133,135..4FC..(ROY,ROYG)199412-199509

86010TUNER ASSY, TELEVISION

main86010-30060iJZS131,133,135..4FC..(ROY,ROYG)199110-199308

main86010-30090iJZS131,133,135..4FC..(ROY,ROYG)199308-199512

86111MULTI-DISPLAY

main86111-30060iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-30060iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-30030iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86017-24010iJZS130..ROY199512-199803

main86191-30020iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

main86191-32010iJZS130..ROY199803

86870PLAYER ASSY, CD-ROM

main86871-30020iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

9011906398

main90119-06398

9011908677

main90119-08677

9014950032

main90149-50032

9017906007

main90179-06007

9165140612

main91651-40612

9356755016

main93567-55016

13 parts on this diagram · 1 diagram in section
