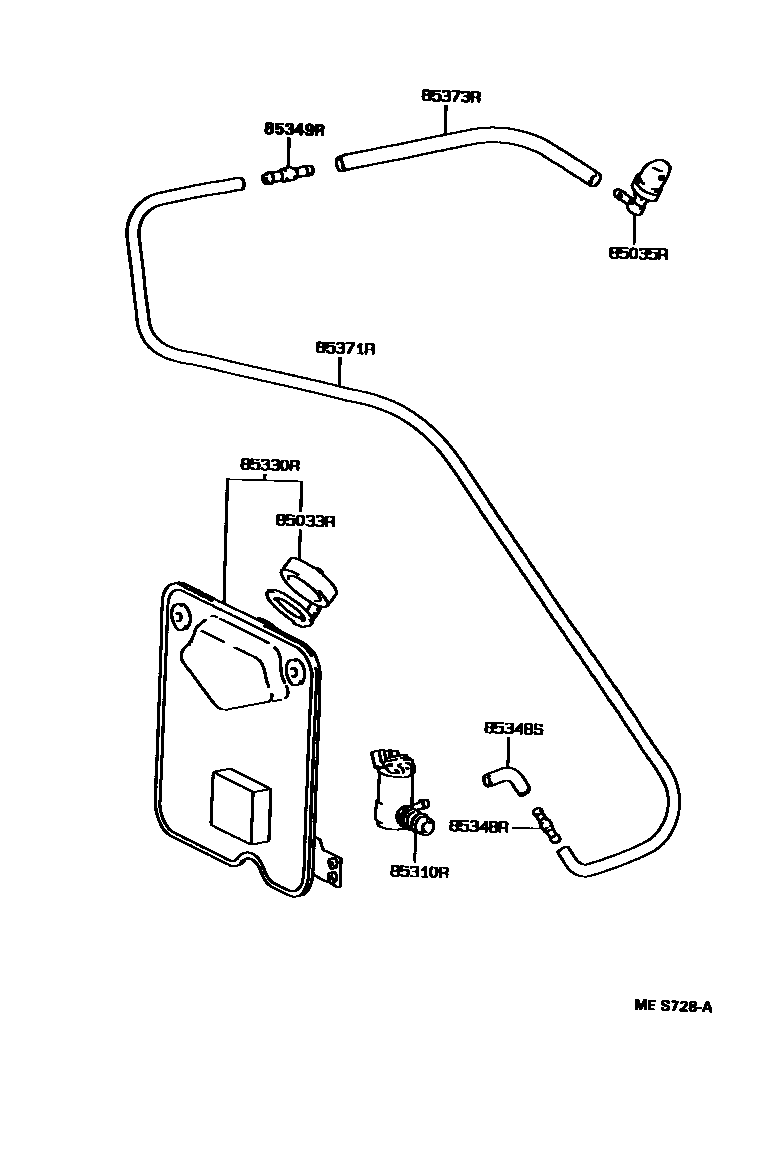

REAR WASHER

0001 1 0002 1

85033RCAP ASSY, REAR WASHER

main85332-20070iGS136,LS136199110

main85332-32010iGS130,JZS130,LS130..WG199110

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-91702iGS130,136,JZS130,LS130,136..V,WG199110

85310RMOTOR ASSY, REAR WASHER

main85310-22080iGS136,LS136199110

main85310-89115iGS130,JZS130,LS130..WG199110

85330RJAR ASSY, REAR WASHER

main85330-20251iGS136,LS136199110

main85331-91703iGS130,JZS130,LS130..WG199110

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-12250iGS130,JZS130,LS130..WG199110

main85349-89122iGS136,LS136199110-199308

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iGS130,136,JZS130,LS130,136..V,WG199110

85349RJOINT, REAR WASHER HOSE, NO.5

main85031-12250iGS136,LS136199110

main85349-89122×2iGS130,JZS130,LS130..WG199110

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85343-91701iGS136,LS136199110

main85353-91701iGS130,JZS130,LS130..WG199110

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iGS130,136,JZS130,LS130,136..V,WG199110

9 parts on this diagram · 2 diagrams in section
