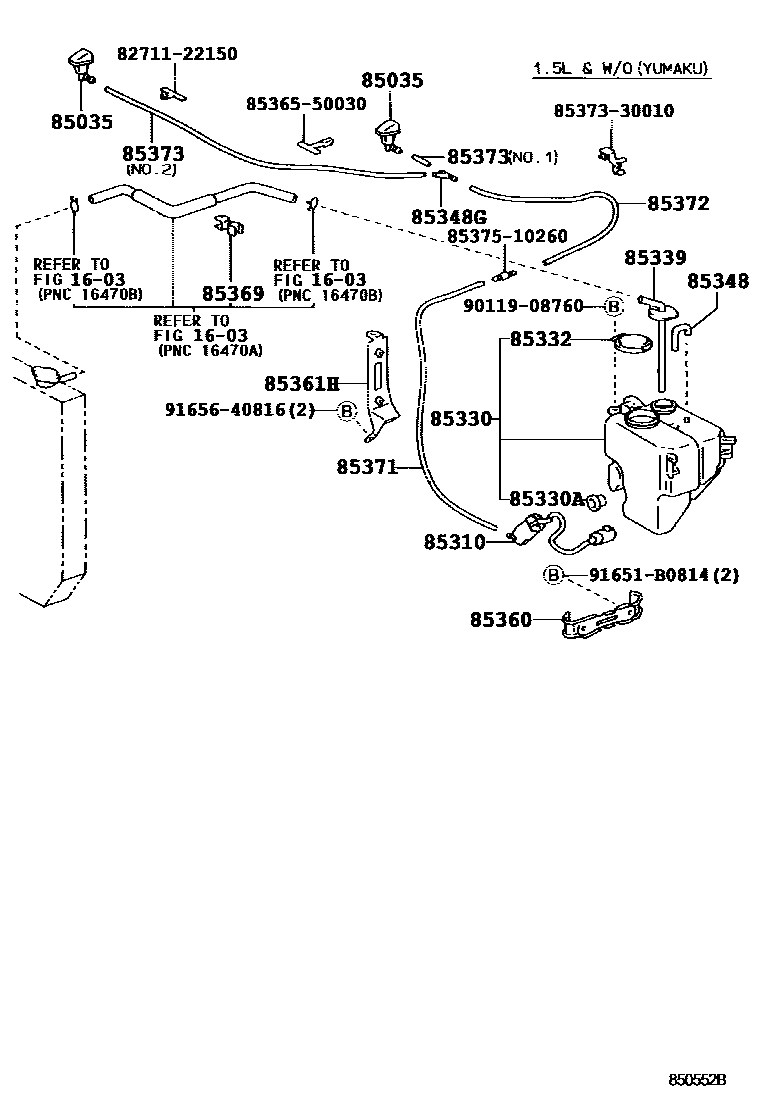

WINDSHIELD WASHER
1603RADIATOR & WATER OUTLET
85035NOZZLE SUB-ASSY, WASHER
WARM GRAY PEARL MICA,29T
SUPER WHITE 4,050
SUPER WHITE 2,040
WHITE PM,2BU
SUPER SILVER 3 M,176
SILVER ME,199
main85381-30020-C1×2iGS130..SED..(DLX,ROY,SALEX,SDX);GS131,JZS131,LS130,131,YS130..SED..(DLX,SALEX,SDX); GS130..WG; GS136..SDX; JZS130,LS130..WG; JZS131,133,135..ROY,ROYG199110-199308
BLACK,183 ,202 ,6K2 ,8J5; BLACK,183 ,202 ,8J5; BLACK,183 ,8J5; BLACK,20U ,8J5; BLACK,8J5
MEDIUM BEIGE M,4H6
BEIGE MM,4K9
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85339CAP SUB-ASSY, RESERVE TANK
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85360BRACKET ASSY, WINDSHIELD WASHER
85361HBRACKET, WASHER
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iJZS13#..4FC..(ROY,ROYG); JZS13#..4HC;GS131,JZS130,131,LS130,131..4FC..SALEX199110-199308
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22150
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8537330010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-30010
8537510260HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-10260
9011908760
main90119-08760
91651B0814
main91651-B0814
9165640816
main91656-40816
22 parts on this diagram · 7 diagrams in section
