WIRING & CLAMP

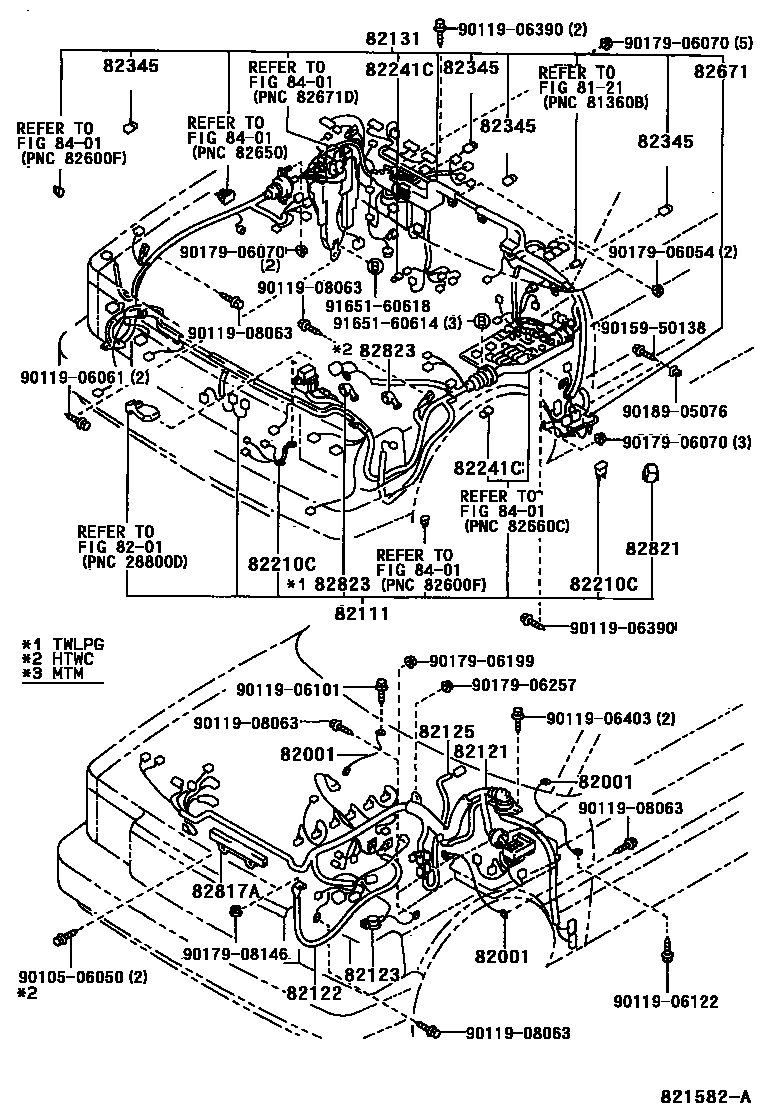

Parts diagram
8121INTERIOR LAMP
→ Go to FIG 81-21
82001CABLE, BOND, NO.1
main90980-07200i199112-199512
E/G-DASH
main90980-07308i199308
E/G-BODY
main90980-07338i199308
E/G-DASH
main90980-07343×2i199110-199112
T/M-FRAME
main90980-07356i199110-199308
T/M-FLOOR; T/M-FROOL
main90980-07357i199110
IGNITER
main90980-07358i199110
ALT
main90980-07369i199210
E/G-DASH
8201BATTERY & BATTERY CABLE
→ Go to FIG 82-01
82111WIRE, ENGINE ROOM MAIN
main82111-3A580i199110-199308
main82111-3A581i199308-199512
main82111-3A600i199110-199308
main82111-3A601i199308-199512
main82111-3A610i199110-199308
main82111-3A611i199308-199512
main82111-3A620i199110-199308
main82111-3A621i199308-199512
main82111-3A660i199110-199308
main82111-3A661i199308-199512
main82111-3A670i199110-199308
main82111-3A671i199308-199512
main82111-3A672i199512-199609
main82111-3A673i199609-199703
main82111-3A674i199703
main82111-3A680i199110-199308
main82111-3A681i199308-199512
main82111-3A720i199110-199308
main82111-3A721i199308-199512
main82111-3A730i199110-199308
main82111-3A731i199308-199509
main82111-3A732i199512-199609
main82111-3A733i199609-199703
main82111-3A734i199703
main82111-3A741i199110-199308
main82111-3A742i199308-199512
main82111-3A750i199110-199308
main82111-3A751i199308-199509
main82111-3A752i199512-199609
main82111-3A753i199609-199703
main82111-3A754i199703
main82111-3A780i199110-199308
main82111-3A781i199308-199409
main82111-3A790i199110-199308
main82111-3A791i199308-199409
main82111-3A800i199110-199204
main82111-3A801i199204-199308
main82111-3A802i199308-199512
main82111-3A803i199512
main82111-3A810i199110-199204
main82111-3A811i199204-199308
main82111-3A820i199110-199204
main82111-3A821i199204-199308
main82111-3A822i199308-199512
main82111-3A823i199512-199809
main82111-3A830i199110-199204
main82111-3A831i199204-199308
main82111-3A840i199112-199204
main82111-3A841i199204-199210
main82111-3A842i199210-199308
main82111-3A843i199308-199512
main82111-3A850i199112-199204
main82111-3A851i199204-199210
main82111-3A852i199210-199308
main82111-3A853i199308-199512
main82111-3A860i199112-199204
main82111-3A861i199204-199210
main82111-3A862i199210-199308
main82111-3A863i199308-199412
main82111-3A864i199412-199512
main82111-3F630i199210-199308
main82111-3F631i199308-199512
main82111-3F640i199210-199308
main82111-3F641i199308-199512
main82111-3K320i199512-199809
main82111-3K330i199512-199609
main82111-3K331i199609
82121WIRE, ENGINE
main82121-30570i199110-199211
main82121-30571i199211-199308
main82121-30580i199110-199211
main82121-30581i199211-199308
main82121-30590i199110-199211
main82121-30591i199211-199308
main82121-30600i199110-199211
main82121-30601i199211-199308
main82121-30610i199110-199212
main82121-30611i199212-199308
main82121-30612i199308-199512
main82121-30613i199512-199703
main82121-30614i199703-199709
main82121-30615i199709
main82121-30620i199110-199208
main82121-30621i199208-199308
main82121-30622i199308-199509
main82121-30630i199110-199208
main82121-30631i199208-199409
main82121-30650i199112-199211
main82121-30651i199211-199308
main82121-30652i199308-199412
main82121-30653i199412-199512
main82121-30660i199112-199308
main82121-30661i199308-199512
main82121-30772i199308-199311
main82121-30773i199311-199504
main82121-30774i199504-199512
main82121-30782i199308-199311
main82121-30783i199311-199504
main82121-30784i199504-199512
main82121-30792i199308-199504
main82121-30793i199504-199512
main82121-30794i199512-199609
main82121-30795i199609-199703
main82121-30796i199703-199709
main82121-30797i199709
main82121-30802i199308-199504
main82121-30803i199504-199512
82122WIRE, ENGINE, NO.2
main82122-30310i199110-199308
main82122-30311i199308
main82122-30330i199112-199308
main82122-30331i199308-199512
main82122-30340i199112-199308
main82122-30341i199308-199512
main82122-30380i199110-199308
main82122-30381i199308
main82122-30400i199110
main82122-30410i199110
main82122-30420i199110
main82122-30430i199110
main82122-30440i199110-199409
main82122-30450i199112-199512
82123WIRE, ENGINE, NO.3
main82123-30131i199112-199512
main82123-30160i199110
main82123-30170i199110
main82123-30220i199110-199512
main82123-30221i199512
82125WIRE, TRANSMISSION
main82125-30180i199110-199308
main82125-30190i199110-199512
main82125-30200i199110-199512
main82125-30210i199110
main82125-30220i199210-199512
main82125-30231i199112-199512
main82125-30251i199112-199210
main82125-30252i199210-199512
main82125-30320i199112-199210
main82125-30330i199112-199512
main82125-30450i199512
82131WIRE, COWL
main82131-31280i199110-199512
main82131-31300i199110-199204
main82131-31301i199204-199210
main82131-31310i199110-199409
main82131-31320i199110-199308
main82131-31321i199308-199512
main82131-31322i199512-199703
main82131-31323i199703-199709
main82131-31324i199709
main82131-31330i199110-199308
main82131-31331i199308-199512
main82131-3K280i199110-199308
main82131-3K281i199308-199512
main82131-3K290i199110-199308
main82131-3K291i199308-199512
main82131-3K300i199110-199308
main82131-3K301i199308-199512
main82131-3K310i199110-199308
main82131-3K311i199308-199512
main82131-3K320i199110-199308
main82131-3K321i199308-199512
main82131-3K330i199110-199308
main82131-3K331i199308-199512
main82131-3K340i199110-199308
main82131-3K341i199308-199512
main82131-3K350i199110-199308
main82131-3K351i199308-199512
main82131-3K360i199110-199308
main82131-3K361i199308-199512
main82131-3K370i199110-199308
main82131-3K371i199308-199512
main82131-3K380i199110-199308
main82131-3K381i199308-199512
main82131-3K390i199110-199210
main82131-3K391i199210-199308
main82131-3K392i199308-199512
main82131-3K393i199512-199703
main82131-3K394i199703-199709
main82131-3K395i199709
main82131-3K400i199110-199308
main82131-3K401i199308-199512
main82131-3K410i199110-199512
main82131-3K420i199110-199512
main82131-3K430i199110-199308
main82131-3K440i199110-199308
main82131-3K450i199110-199512
main82131-3K451i199512-199709
main82131-3K452i199709
main82131-3K460i199110-199308
main82131-3K470i199110-199308
main82131-3K471i199308-199512
main82131-3K480i199110-199308
main82131-3K481i199308-199512
main82131-3K482i199512-199703
main82131-3K483i199703
main82131-3K530i199110-199409
main82131-3K540i199110-199308
main82131-3K541i199308-199512
main82131-3K550i199112-199210
main82131-3K551i199210-199308
main82131-3K552i199308-199412
main82131-3K553i199412-199512
main82131-3K560i199112-199210
main82131-3K561i199210-199308
main82131-3K562i199308-199412
main82131-3K563i199412-199512
main82131-3K570i199112-199210
main82131-3K571i199210-199308
main82131-3K572i199308-199412
main82131-3K573i199412-199512
main82131-3K580i199112-199210
main82131-3K581i199210-199308
main82131-3K582i199308-199412
main82131-3K583i199412-199512
main82131-3K590i199112-199308
main82131-3K591i199308-199512
main82131-3U310i199308-199512
main82131-3U320i199308-199512
main82131-3U330i199308-199512
main82131-3U340i199308-199512
main82131-3U350i199308-199512
main82131-3U351i199512-199609
main82131-3U352i199609-199703
main82131-3U353i199703-199709
main82131-3U354i199709
main82131-3U360i199308-199512
main82131-3U361i199512-199609
main82131-3U362i199609-199703
main82131-3U363i199703-199709
main82131-3U364i199709
main82131-3U560i199512-199609
main82131-3U561i199609-199703
main82131-3U562i199703-199709
main82131-3U563i199709
82210CFUSIBLE LINK
main90982-08169i199112-199512
main90982-08188i199110-199112
main90982-08189i199110-199512
main90982-08202i199110-199512
main90982-08203i199110-199112
main90982-08223i199512
main90982-08227i199112-199512
main90982-08246i199308-199509
main90982-08257i199112-199512
main90982-08261i199110-199509
main90982-08273i199308-199512
82241CWIRE, RELAY
main82241-22070i199110-199512
main82241-30190i199512
main82241-30240i199112-199512
82345DIODE
main82345-12030i199110
main82345-12050i199512
main82345-30010i199110
main82345-32020i199110-199308
82671BLOCK, JUNCTION
main82671-30180i199110-199112
main82671-30190i199110-199204
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-22350i199112-199512
main82817-22660i199110
82821RETAINER, HEADLAMP HARNESS
main82821-35040i199512
82823CAP, TERMINAL, NO.1
main82823-22050i199110
main82823-22080i199308
main82823-24030i199110
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9010506050
main90105-06050
9011906061
main90119-06061
9011906101
main90119-06101
9011906122
main90119-06122
9011906390
main90119-06390
9011906403
main90119-06403
9011908063
main90119-08063
9015950138
main90159-50138
9017906054
main90179-06054
9017906070
main90179-06070
9017906199
main90179-06199
9017906257
main90179-06257
9017908146
main90179-08146
9018905076
main90189-05076
9165160614
main91651-60614
9165160618
main91651-60618

33 parts on this diagram · 16 diagrams in section
