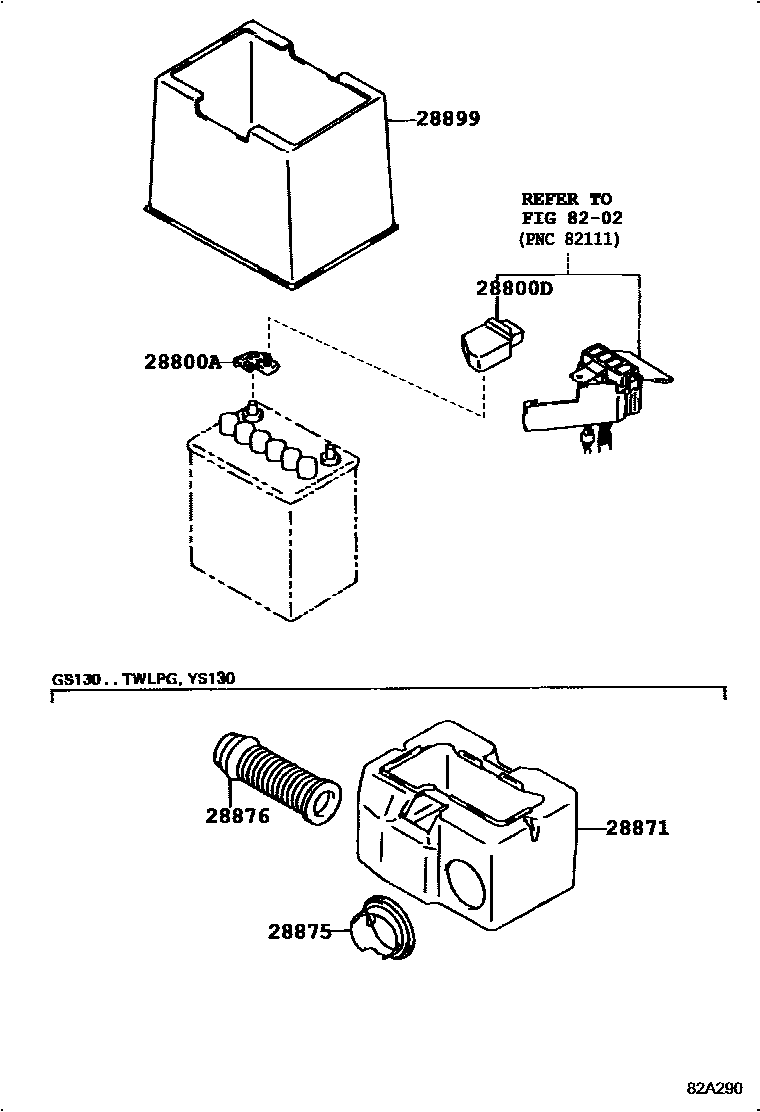

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05041i1GFE..GS136199110

main90982-05042i1GFE,1JZGE,2JZGE,2L#..GS130,131,JZS13#,LS13#199110-199112

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i1GFE,1JZGE..GS13#,JZS130199512

main82821-30140i1GGP,2LT#,2L,3YPE..GS130,LS13#,YS130199112

28871INSULATOR, BATTERY, NO.1

main28871-73010i1GGP,3YPE..GS130,YS130199112-199512

28875DUCT, BATTERY INSULATOR, NO.1

main28875-73010i1GGP,3YPE..GS130,YS130199112-199512

28876DUCT, BATTERY INSULATOR, NO.2

main28876-73010i1GGP,3YPE..GS130,YS130199112-199512

28899INSULATOR, BATTERY

main28899-42040i2JZGE..JZS133,135;1JZGE..JZS131..4FC..ROY199110-199512

75D26L

main28899-70010i1JZGE..JZS131;1JZGE,2JZGE..JZS130,133,135..ROY,ROYG199110-199308

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 1 diagram in section
