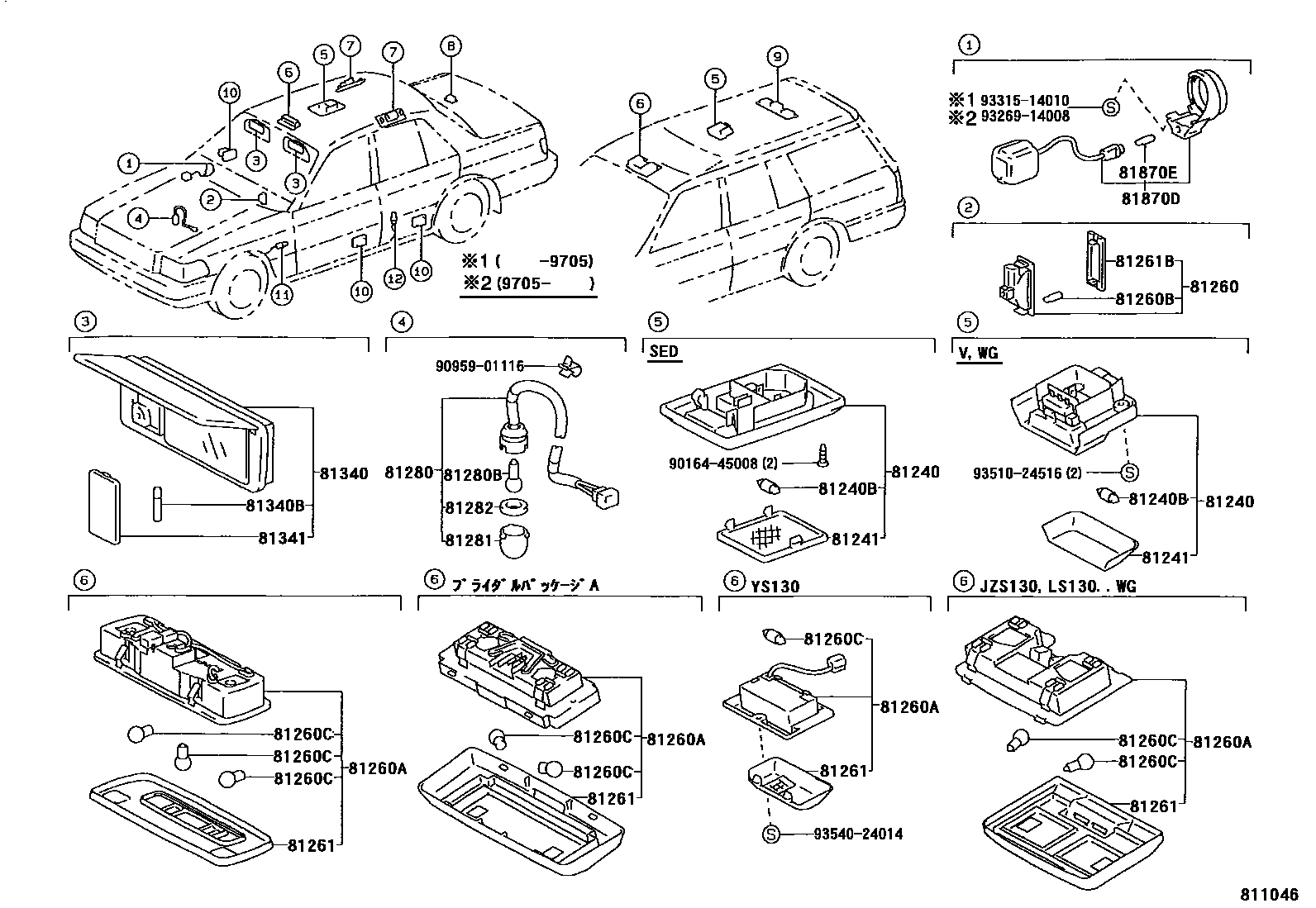

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-30070-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main81240-30070-E0iGS130..WG199110-199512

QUARTZ,TRIM4#

main81240-30070-J0iGS130,136,LS136..(V,WG)..(DLX,SDX,STD)199110

LI.BLUE,TRIM8#

main81240-30100-E0iGS130..DLX199110-199512

QUARTZ,TRIM4#

main81240-30100-J0iGS130,YS130..DLX,DLXA,STD; GS130..(4H,4HC)..TWLPG199112-199512

main81240-91701-B0iGS130,JZS130,LS130..SALEX199704

main81240-91701-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main81240-91701-J0iJZS130,LS130..WG199110-199512

LI.BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iGS130..(4H,4HC)..TWLPG199112-199512

81241LENS, ROOM LAMP, NO.1

main81241-30070iGS130,136,LS136..V,WG199110-199512

main81241-30100iGS130..DLX,STD199110-199112

main81241-30110iJZS130..ROY199512

81260LAMP ASSY, GLOVE BOX

main81260-50010iGS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX199110

81260ALAMP ASSY, MAP

main81260-22100-J0iGS130..(4H,4HC)..TWLPG199112-199512

main81260-30120-J0iYS130199112-199512

LI.BLUE,TRIM8#

main81260-30140iJZS130,LS130199512-199904

main81260-30140-B0iJZS130..ROY199110-199512

LI.GRAY,TRIM1#

main81260-30140-E0iGS130,JZS130,LS130..WG..(ROY,SALEX)199110-199904

QUARTZ,TRIM4#

main81260-30140-J0iJZS130,LS130..WG199110-199512

LI.BLUE,TRIM8#

main81260-30180-B0iJZS131,133,135..ROY,ROYG199110-199512

LI.GRAY,TRIM1#

main81260-30180-E0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main81260-30180-J0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)199110-199512

LI.BLUE,TRIM8#

81260BBULB(FOR GLOVE BOX)

main90981-11018iGS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX199110

81260CBULB(FOR MAP LAMP)

main90981-12014×2iGS130..(4H,4HC)..TWLPG199112-199512

main90981-12020×3iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)199110-199512

main90981-14006iYS130199112-199512

81261LENS AND COVER, MAP LAMP

main81261-22100-04iGS130..(4H,4HC)..TWLPG199309-199512

main81261-22100-J0iGS130..(4H,4HC)..TWLPG199112-199309

main81261-30120iYS130199112-199512

main81261-30140-B0iJZS130..ROY199110-199512

LI.GRAY,TRIM1#

main81261-30140-E0iGS130,JZS130,LS130..WG..(ROY,SALEX)199110

QUARTZ,TRIM4#

main81261-30140-J0iJZS130,LS130..WG199110-199512

LI.BLUE,TRIM8#

main81261-30180-B0iJZS131,133,135..ROY,ROYG199110-199512

LI.GRAY,TRIM1#

main81261-30180-E0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main81261-30180-J0iGS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)199110-199512

LI.BLUE,TRIM8#

81261BLENS,GLOVE BOX LAMP

main81261-50010iGS136..SDX;GS130,131,JZS13#,LS130,131,YS130..DLX,ROY,ROYG,SALEX,SDX199110

81280LAMP ASSY, ENGINE ROOM

main81280-30060iGS130,YS130..LPEFI,TWLPG199112-199512

81280BBULB, ENGINE ROOM LAMP

main99132-13060iGS130,YS130..LPEFI,TWLPG199112-199512

81281LENS, ENGINE ROOM LAMP

main81281-30010iGS130,YS130..LPEFI,TWLPG199112-199512

81282PACKING, ENGINE ROOM LAMP LENS

main81282-30010iGS130,YS130..LPEFI,TWLPG199112-199512

81340LAMP ASSY, VANITY

main81340-24030-B0iJZS13#..ROY,ROYG199110-199904

LI.GRAY,TRIM1#

main81340-24030-E0iJZS13#..ROY,ROYG199110-199904

QUARTZ,TRIM4#

main81340-24030-J0iJZS13#..ROY,ROYG199110-199512

LI.BLUE,TRIM8#

81340BBULB (FOR VANITY LAMP)

main90981-14007iJZS13#..ROY,ROYG199110

81341LENS, VANITY LAMP

main81341-50010iJZS13#..ROY,ROYG199110

81870DLAMP ASSY, KEY CYLINDER

main81870-30080iJZS133..4FC199110-199205

main81870-30090iGS130..5F..SDX199110-199512

81870EBULB, KEY CYLINDER LAMP

main90981-11014iGS130..ROY;GS130,131,JZS13#,LS130,131..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110

9016445008

main90164-45008

9095901116

main90959-01116

9326914008

main93269-14008

9331514010

main93315-14010

9351024516

main93510-24516

9354024014

main93540-24014

24 parts on this diagram · 2 diagrams in section
