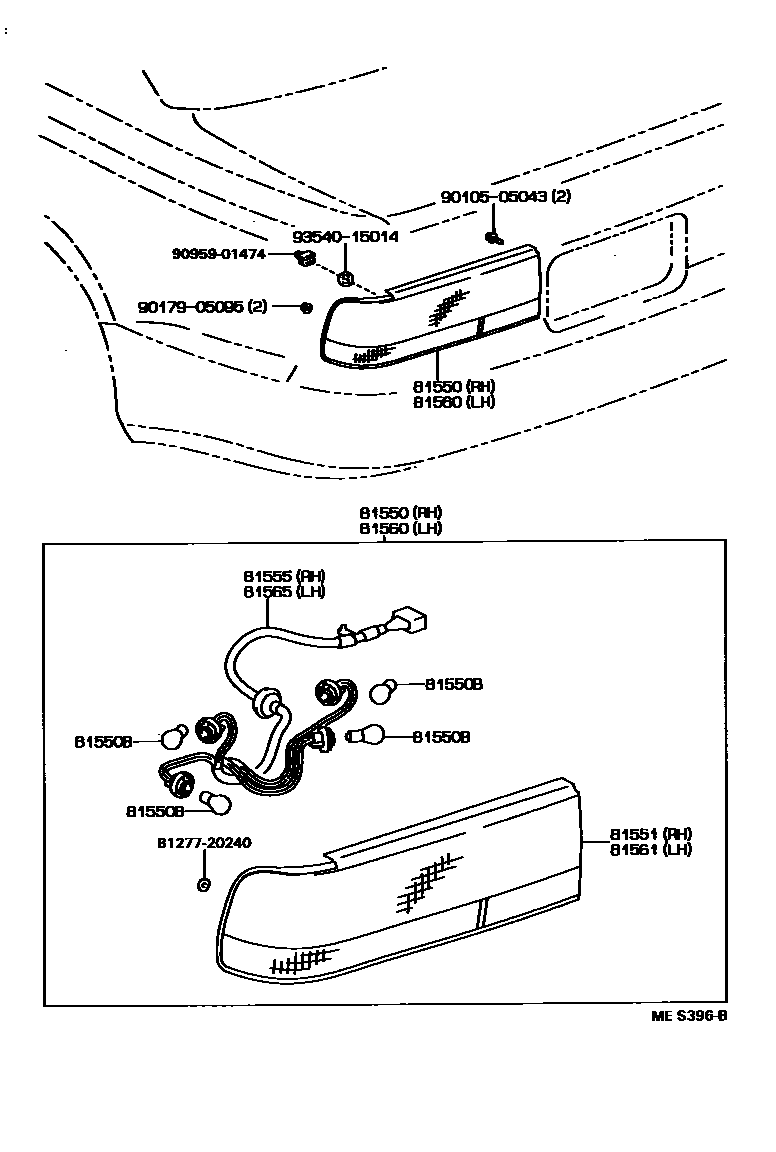

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30640iGS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX199110-199512

main81550-30650iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199110-199308

main81550-30660iGS130,YS130..STD199112-199308

main81550-30710iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199308-199512

main81550-30720iYS130..STD199308-199512

main81550-31140iGS130,JZS130,LS130199512

main81550-91707iGS130,JZS130,LS130..WG199110-199512

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2iGS130,136,JZS130,LS130,136..V,WG199110-199804

main90981-11059×2iGS130,JZS130,LS130199804

main99132-11210×4iGS130,LS130,YS130..SED..(DLX,DLXA,SDX,STD); GS130..ATM..SDX..TWLPG199112-199512

main99132-21210×4iGS130,131,JZS13#,LS130,131,YS130199112

81551LENS, REAR COMBINATION LAMP, RH

main81551-30640iGS130..ATM..SDX..TWLPG199112-199512

main81551-30650iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199110-199308

main81551-30660iGS130,YS130..STD199112-199308

main81551-30710iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199308-199512

main81551-30720iYS130..STD199308-199512

main81551-31140iGS130,JZS130,LS130199512

main81551-91706iGS136,LS136199110

main81551-91707iGS130,JZS130,LS130..WG199110-199512

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30640iGS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDEC,TWC); GS130..ROY199207-199308

main81555-30650iGS130,LS130..SED199110-199112

main81555-91705iGS130,136,JZS130,LS130,136..V,WG199110

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30640iGS130..ATM..SDX..TWLPG199112-199512

main81560-30650iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199110-199308

main81560-30660iGS130..STD199110-199112

main81560-30710iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199308-199512

main81560-30720iYS130..STD199308-199512

main81560-31140iGS130,JZS130,LS130199512

main81560-91707iGS130,JZS130,LS130..WG199110-199512

81561LENS, REAR COMBINATION LAMP, LH

main81561-30640iGS130..ATM..SDX..TWLPG199112-199512

main81561-30650iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199110-199308

main81561-30660iGS130,YS130..STD199112-199308

main81561-30710iGS130,LS130,YS130..SED..(DLX,DLXA,SDX)199308-199512

main81561-30720iYS130..STD199308-199512

main81561-31140iGS130,JZS130,LS130199512

main81561-91706iGS136,LS136199110

main81561-91707iGS130,JZS130,LS130..WG199110-199512

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91705iGS130,136,JZS130,LS130,136..V,WG199110

main81565-30640iGS130..ATM..SDX..TWLPG199112-199512

main81565-30650iGS130,LS130,YS130..SED..(DLX,DLXA,SDX,STD)199112-199512

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9010505043

main90105-05043

9017905095

main90179-05095

9095901474

main90959-01474

9354015014

main93540-15014

12 parts on this diagram · 4 diagrams in section
