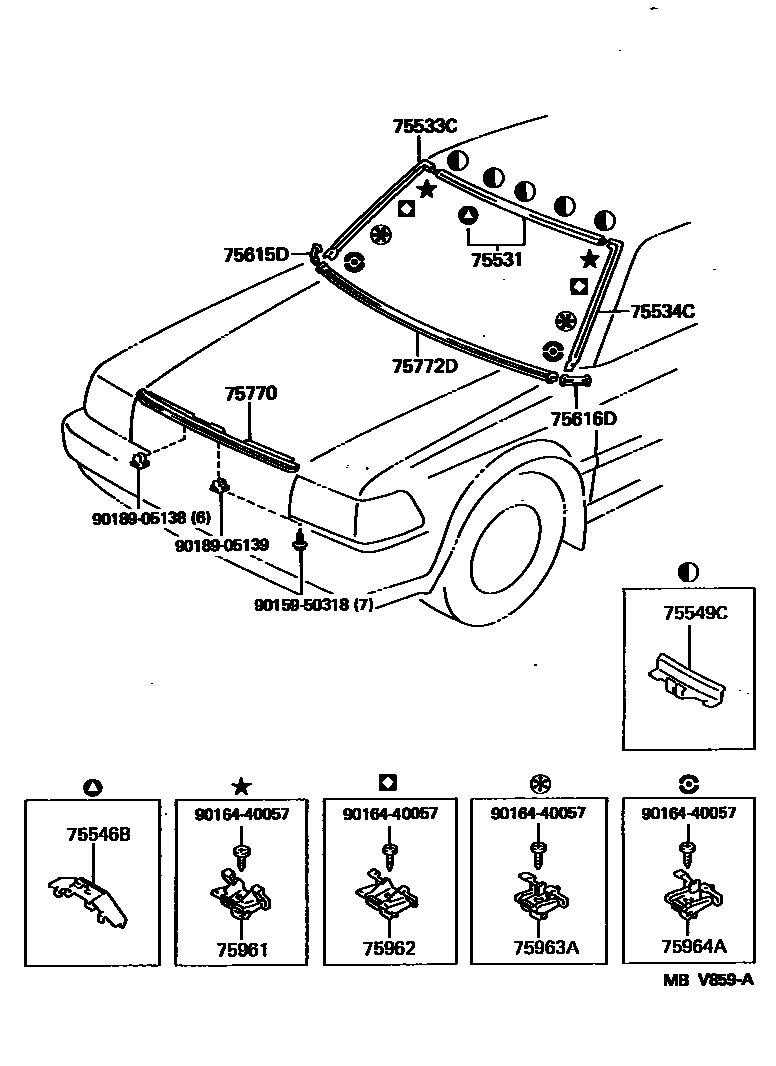

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-30180iGS13#,JZS13#,LS13#; GS130,131,JZS131,133,135,LS130,131..SED199110-199112

main75531-30200iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199512

75533CGARNISH, FRONT PILLAR, OUTER RH

main75533-30210iGS13#,JZS13#,LS13#,YS130199112

main75533-30240iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199512

main76053-30010iGS13#,JZS13#,LS13#199110-199112

75534CGARNISH, FRONT PILLAR, OUTER LH

main75534-30190iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199512

main75534-30220iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199512

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-30050×5iGS13#,JZS13#,LS13#199110-199112

75549CFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-20090×5iGS13#,JZS13#,LS13#199110-199112

75615DMOULDING, FRONT FENDER, REAR RH

main75615-30120iGS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX199110

main75615-30130iGS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX)199110-199512

75616DMOULDING, FRONT FENDER, REAR LH

main75616-30120iGS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX199110

main75616-30130iGS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX)199110-199512

75770MOULDING ASSY, HOOD, FRONT

main75770-30250iLS130..SDX;GS130,136,LS136,YS130..DLX,DLXA,SALEX,SDX199110-199308

main75770-30251iGS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX)199308

main75770-30260iGS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDEC,TWC,TWLPG)199110-199308

main75770-30261iGS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TWC,TWLPG)199308-199512

main75770-30270iGS130,136..STD199110-199112

main75770-30320iGS130,JZS130,LS130..ROY,SALEX199512

75772DMOULDING, HOOD, REAR

main75772-30091iGS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX199110

main75772-30101iGS130,131,JZS131,133,135,LS130,131,YS130..SED..(DLX,DLXA,ROY,ROYG,SALEX,SDX)199110-199512

75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4

main75961-30010×2iGS13#,JZS13#,LS13#,YS130199112

75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5

main75962-30010×2iGS13#,JZS13#,LS13#199110-199112

75963ACLIP, FRONT PILLAR OUTER GARNISH, NO.3

main75963-30010×2iGS13#,JZS13#,LS13#199110-199112

75964ACLIP, FRONT PILLAR OUTER GARNISH, NO.4

main75964-30010×2iGS13#,JZS13#,LS13#199110-199112

9015950318

main90159-50318

9016440057

main90164-40057

9018905138

main90189-05138

9018905139

main90189-05139

17 parts on this diagram · 2 diagrams in section
