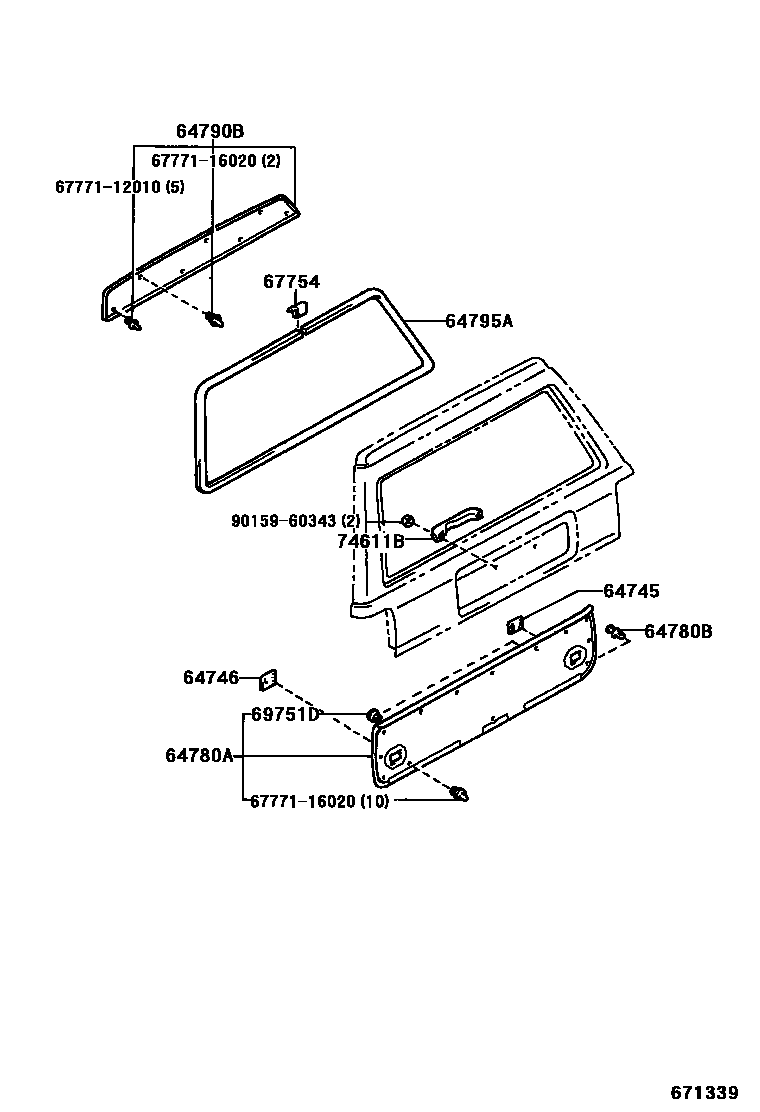

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-91701-B0iJZS130..ROY199110-199512

GRAY,TRIM1#

main64745-91701-E0iGS130,JZS130,LS130..WG199110-199512

QUARTZ,TRIM4#

main64745-91701-J0iGS130,JZS130,LS130..WG199110-199512

DK.BLUE,TRIM8#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64745-91701-B0iGS130,JZS130,LS130..ROY,SALEX199512

GRAY,TRIM1#

main64745-91701-E0iGS130,JZS130,LS130..WG199110-199512

QUARTZ,TRIM4#

main64745-91701-J0iGS130..SDX199512

DK.BLUE,TRIM8#

64780APANEL ASSY, BACK DOOR TRIM

main64780-31010-B0iJZS130..ROY199110-199512

GRAY,TRIM1#

main64780-31010-E0iJZS130..ROY199110-199512

QUARTZ,TRIM4#

main64780-31010-J0iJZS130..ROY199110-199512

DK.BLUE,TRIM8#

main64780-31020-E0iJZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

main64780-31020-J0iJZS130,LS130..SALEX199110-199512

DK.BLUE,TRIM8#

main64780-31030-E0iGS130..WG199110-199512

QUARTZ,TRIM4#

main64780-31030-J0iGS130..WG199110-199512

DK.BLUE,TRIM8#

main64780-31040-J0iGS136,LS136199110

DK.BLUE,TRIM8#

main64780-31050-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main64780-31050-E0iGS130,JZS130,LS130..SALEX199512

QUARTZ,TRIM4#

main64780-31060-J0iGS130..SDX199512

DK.BLUE,TRIM8#

main64780-31070-B0iJZS130..ROY199512

MD.GRAY,TRIM1#

main64780-31070-E0iJZS130..ROY199512

QUARTZ,TRIM4#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-08114-B0×6iJZS130..ROY199110-199512

GRAY,TRIM1#

main90467-08114-E0×6iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main90467-08114-J0×6iGS130,136,JZS130,LS130,136..V,WG199110-199512

DK.BLUE,TRIM8#

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-31010-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main64790-31010-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main64790-31010-J0iGS13#..DLX,SDX199512

LT.BLUE,TRIM8#

main64790-91703-B0iJZS130..ROY199110-199512

LI.GRAY,TRIM1#

main64790-91703-E0iGS130,JZS130,LS130..WG199110-199512

QUARTZ,TRIM4#

main64790-91703-J0iGS130,136,JZS130,LS130,136..V,WG199110-199512

LI.BLUE,TRIM8#

64795ATRIM, BACK WINDOW OPENING

main64795-31010-B0iGS130,JZS130,LS130..ROY,SALEX199512

SHADOW GRAY,TRIM1#

main64795-31010-E0iGS130,JZS130,LS130..ROY,SALEX199512

QUARTZ,TRIM4#

main64795-31010-J0iGS13#..DLX,SDX199512

LT.BLUE,TRIM8#

main64795-91704-B0iJZS130..ROY199110-199512

LI.GRAY,TRIM1#

main64795-91704-E0iGS130,JZS130,LS130..WG199110-199512

QUARTZ,TRIM4#

main64795-91704-J0iGS130,136,JZS130,LS130,136..V,WG199110-199512

LI.BLUE,TRIM8#

67754MOULDING, BACK DOOR TRIM

main67754-91701×2iGS130,136,JZS130,LS130,136..V,WG199110

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-91701-B0iJZS130..ROY199110

GRAY,TRIM1#

main69751-91701-E0iGS130..SDX; JZS130..ROY199512

QUARTZ; QUARTZ,TRIM4#

main69751-91701-J0iGS130,JZS130,LS130..WG199110-199512

DK.BLUE,TRIM8#

74611BGRIP, ASSIST

main74611-91701-B1iJZS130..ROY199110

LI.GRAY,TRIM1#

main74611-91701-E0iJZS130..ROY199512

QUARTZ,TRIM4#

main74611-91701-J1iGS130,JZS130,LS130..WG199110-199512

LI.BLUE,TRIM8#

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

6777116020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16020

9015960343

main90159-60343

12 parts on this diagram · 3 diagrams in section
