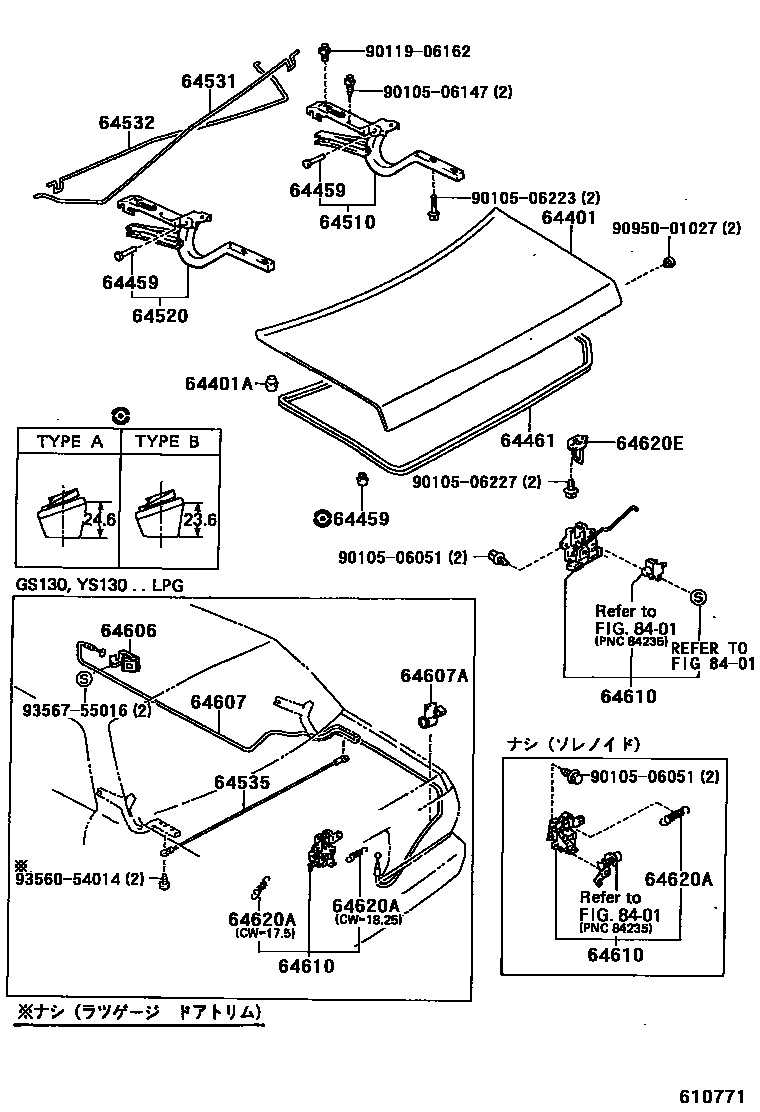

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30790iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-08018×2iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

main90950-01354×2iGS130,131,JZS131,133,135,LS130,131,YS130..SED199404-199512

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-30010×2iGS130,131,JZS131,133,135,LS130,131,YS130..SED199112-199512

main64459-30020×2iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30230iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30160iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30110iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30160iGS130,131,JZS131,133,LS130,131,YS130..SED199112-199512

main64531-30190iJZS135199110-199512

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30160iGS130,131,JZS131,133,LS130,131,YS130..SED199112-199512

main64532-30210iGS130,131,JZS131,133,LS130,131..SED199110-199112

64535CABLE, LUGGAGE COMPARTMENT DOOR HINGE

main64535-30020iGS130,YS130..LPEFI,TWLPG199112-199512

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-30050-J0iGS130,YS130..LPEFI,TWLPG199112-199512

DK.BLUE,TRIM8#

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-30070iGS130,YS130..LPEFI,TWLPG199112-199512

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-20020×2iGS130,YS130..LPEFI,TWLPG199112-199512

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30080iGS130,131,JZS131,133,135,LS130,131..SED..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

main64610-30090iGS130..STD199110-199308

main64610-30100iGS130,YS130..LPEFI,TWLPG199112-199512

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iGS130..STD199110-199308

main90506-06013iGS130,YS130..LPEFI,TWLPG199112-199512

WD=0.55,CW=18.25

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-32050iGS130,131,JZS131,133,135,LS130,131..SED199110-199112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010506147

main90105-06147

9010506223

main90105-06223

9010506227

main90105-06227

9011906162

main90119-06162

9095001027

main90950-01027

9356054014

main93560-54014

9356755016

main93567-55016

24 parts on this diagram · 1 diagram in section
