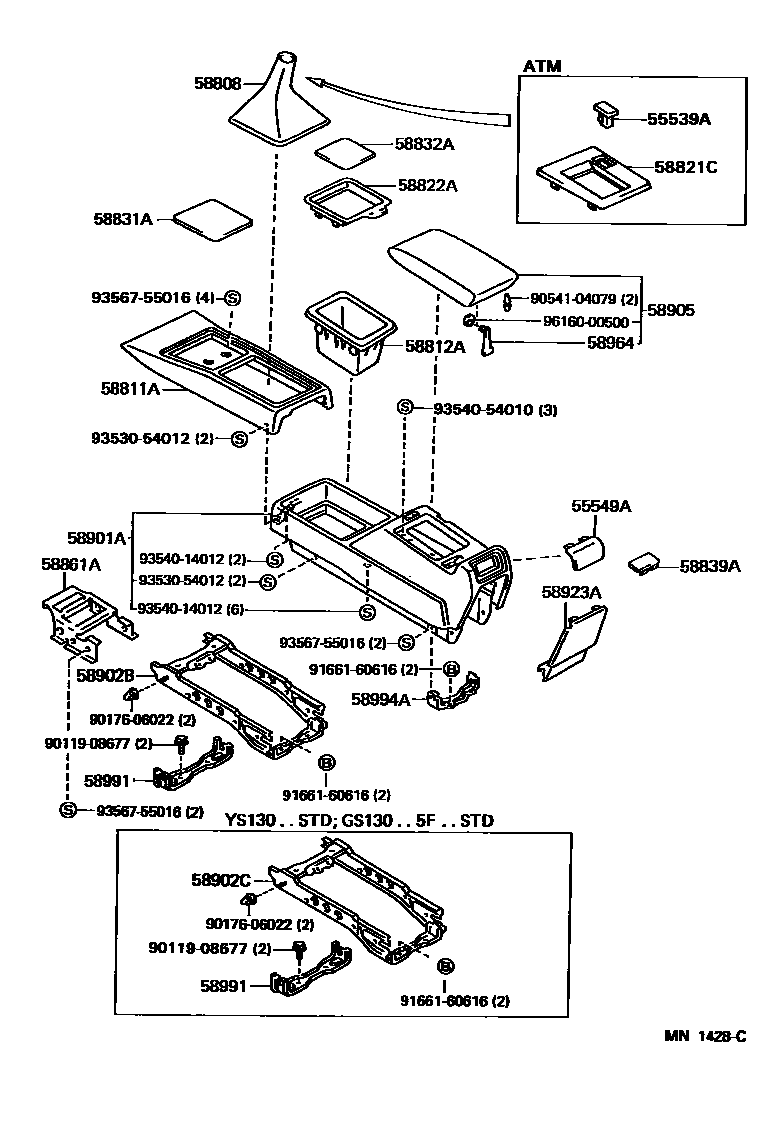

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-30100-B0iGS130..SALEX199512

SHADOW GRAY,TRIM1#

main55539-30100-E0iGS130,131..4FC..HTWC199110-199512

QUARTZ,TRIM4#

main55539-30100-J0iGS130..WG..4FC..SDX;GS13#,LS136,YS130..(SED,V)..4FC..(DLX,SALEX,SDX,STD)199110

DK.BLUE,TRIM8#

main55539-30110iGS130..ROY199112-199512

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-30080-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

sub55549-30080

main55549-30080-E0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

sub55549-30080

main55549-30080-J0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)199110-199512

DK.BLUE,TRIM8#

sub55549-30080

main55549-30090-E0iGS130..5F..(DLX,SDX)199110-199512

QUARTZ,TRIM4#

sub55549-30090

main55549-30090-J0iGS130..5F;GS136,LS136..4FC,5F199110

DK.BLUE,TRIM8#

sub55549-30090

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30070-E0iGS130..5F..(DLX,SDX)199110-199512

QUARTZ,TRIM4#

main58808-30070-J0iGS130,136,LS136..5F199110

DK.BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58802-30040-B0iJZS13#..4FC..(ROY,ROYG)199110

SHADOW GRAY,TRIM1#

sub58802-30040

main58802-30040-E0iJZS13#..4FC..(ROY,ROYG)199110

QUARTZ,TRIM4#

sub58802-30040

main58802-30040-J0iGS130,JZS13#..4FC..(ROY,ROYG)199110-199512

DK.BLUE,TRIM8#

sub58802-30040

main58811-30240-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

sub58811-30240

main58811-30240-E0iGS130,JZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

sub58811-30240

main58811-30240-J0iYS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)199110-199512

DK.BLUE,TRIM8#

sub58811-30240

58812ABOX, CONSOLE, LOWER

main58812-30070-J0iGS130,YS130..(4H,4HC)..(LPEFI,TWLPG)199112-199512

DK.BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58821-30290-B0iJZS13#..4FC..(ROY,ROYG)199110

SHADOW GRAY,TRIM1#

sub58821-30290

main58821-30290-E0iJZS13#..4FC..(ROY,ROYG)199110

QUARTZ,TRIM4#

sub58821-30290

main58821-30290-J0iGS130,JZS13#..4FC..(ROY,ROYG)199110-199512

DK.BLUE,TRIM8#

sub58821-30290

main58821-30300-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main58821-30300-E0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main58821-30300-J0iGS13#,JZS130,131,LS13#,YS130..4FC..(DLX,SALEX,SDX,STD)199110-199512

DK.BLUE,TRIM8#

58822APANEL, CONSOLE, UPPER REAR

main58822-30160-E0iGS130..5F..(DLX,SDX)199110-199512

QUARTZ,TRIM4#

sub58822-30160

main58822-30160-J0iGS130..5F;GS136,LS136..4FC,5F199110

DK.BLUE,TRIM8#

sub58822-30160

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30060-E0iGS130,131,JZS130,131,LS130,131..(4FC,5F)..(SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199311

QUARTZ,TRIM4#

main58831-30060-J0iGS13#,JZS130,131,LS130,131..(4FC,5F)..(SALEX,SDX)199110-199311

DK.BLUE,TRIM8#

main58831-30060-J0iGS130..(4H,4HC)..TWLPG199112-199311

DK.BLUE,TRIM8#,128 X 131

main58831-30061-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main58831-30061-B1iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM12

main58831-30061-E0iGS130,131,JZS130,131,LS130,131..(4FC,5F)..(SALEX,SDX)..(HTWC,TDE,TWC)199311-199512

QUARTZ,TRIM4#

main58831-30061-J0iGS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS130,131..(4FC,5F)..(SALEX,SDX)199311-199512

DK.BLUE,TRIM8#

main58831-30100-J0iGS130..(4H,4HC)..TWLPG199112-199404

DK.BLUE,TRIM8#,87 X 124

main58831-30101-J0iGS130..(4H,4HC)..TWLPG199404-199512

DK.BLUE,TRIM8#,87 X 124

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30070-E0iGS130..5F..SDX199110-199311

QUARTZ,TRIM4#

main58832-30070-J0iGS136..SDX;GS130..5F..SDX199110-199311

DK.BLUE,TRIM8#

main58832-30071-E0iGS130..5F..SDX199311-199512

QUARTZ,TRIM4#

main58832-30071-J0iGS136..SDX;GS130..5F..SDX199311

DK.BLUE,TRIM8#

58839ACOVER, CONSOLE BOX HOLE

main58839-30031iGS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD)199110-199512

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-30040iGS130..5F..STD199110-199512

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-30070-E0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)..(HTWC,TDEC,TWC)199110-199308

QUARTZ,TRIM4#

sub58901-30071

main58901-30070-J0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)199110-199308

DK.BLUE,TRIM8#

sub58901-30071

main58901-30071-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

main58901-30071-E0iGS130,JZS130,LS130..SALEX199308-199512

QUARTZ,TRIM4#

main58901-30071-J0iGS130..SDX199308-199512

DK.BLUE,TRIM8#

main58901-30080-E0iGS130..5F..(DLX,SDX)199110-199308

QUARTZ,TRIM4#

sub58901-30081

main58901-30080-J0iGS130..5F;GS136,LS136..4FC,5F199110-199308

DK.BLUE,TRIM8#

sub58901-30081

main58901-30081-E0iGS130..5F199308-199512

QUARTZ,TRIM4#

main58901-30081-J0iGS130..5F;GS136,LS136..4FC,5F199308

DK.BLUE,TRIM8#

main58901-30091-B0iJZS131,133,135..4FC..(ROY,ROYG)199110-199308

main58901-30091-E0iJZS131,133,135..4FC..(ROY,ROYG)199110-199308

main58901-30091-J0iJZS131,133,135..4FC..(ROY,ROYG)199110-199308

main58901-30092-B0iJZS131,133,135..4FC..(ROY,ROYG)199308-199512

sub58901-30091

main58901-30092-E0iJZS131,133,135..4FC..(ROY,ROYG)199308-199512

sub58901-30091

main58901-30092-J0iJZS131,133,135..4FC..(ROY,ROYG)199308-199512

sub58901-30091

main58901-30121-B0iJZS13#..4FC..(ROY,ROYG)199110-199308

SHADOW GRAY,TRIM1#

main58901-30121-E0iJZS13#..4FC..(ROY,ROYG)199110-199308

QUARTZ,TRIM4#

main58901-30121-J0iGS130,JZS13#..4FC..(ROY,ROYG)199110-199308

DK.BLUE,TRIM8#

main58901-30122-B0iJZS13#..4FC..(ROY,ROYG)199308

SHADOW GRAY,TRIM1#

sub58901-30121

main58901-30122-E0iJZS13#..4FC..(ROY,ROYG)199308

QUARTZ,TRIM4#

sub58901-30121

main58901-30122-J0iGS130,JZS13#..4FC..(ROY,ROYG)199308-199512

DK.BLUE,TRIM8#

sub58901-30121

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-30060iGS13#,JZS13#,LS13#..4FC,5F199110-199112

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-30040iGS130..5F..STD199110-199512

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30140-B0iGS130,JZS130,LS130..SALEX199512-199904

SHADOW GRAY,TRIM1#

main58905-30140-E0iGS130,131,JZS130,131,LS130,131..4FC..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199904

QUARTZ,TRIM4#

main58905-30140-J0iGS130..(4H,4HC)..TWLPG;GS130,JZS131..4FC..(DLX,SALEX,SDX);GS131,JZS130,LS130,131,YS130..DLX,DLXA,SALEX,SDX,STD199110-199904

DK.BLUE,TRIM8#

main58905-30150-E0iGS130..5F..(DLX,SDX)199110-199512

QUARTZ,TRIM4#

main58905-30150-J0iGS130..5F;GS136,LS136..4FC,5F199110-199904

DK.BLUE,TRIM8#

main58905-30310-B0iJZS135..4FC199110-199512

main58905-30310-E0iJZS135..4FC199110-199512

main58905-30310-J0iJZS135..4FC199110-199512

main58905-30320-B0iJZS13#..4FC..(ROY,ROYG)199110-199512

SHADOW GRAY,TRIM1#

main58905-30320-E0iJZS13#..4FC..(ROY,ROYG)199110-199512

QUARTZ,TRIM4#

main58905-30320-J0iGS130,JZS13#..4FC..(ROY,ROYG)199110-199512

DK.BLUE,TRIM8#

main58905-30460-B0iJZS130..4FC..ROY199512-199904

LT. BLUISH GRAY,TRIM1#

main58905-30460-E0iJZS130..4FC..ROY199512-199904

QUARTZ,TRIM4#

58923APANEL, CONSOLE REAR END

main58903-30091-B0iGS130,JZS130,LS130..SALEX199512

SHADOW GRAY,TRIM1#

sub58903-30091

main58903-30091-E0iGS130,JZS130,LS130..SALEX199110-199512

QUARTZ,TRIM4#

sub58903-30091

main58903-30091-J0iGS13#..DLX,SDX199110-199512

DK.BLUE,TRIM8#

sub58903-30091

main58923-30070-J0iYS130;GS130..(4H,4HC)..TWLPG199112-199512

DK.BLUE,TRIM8#

sub58923-30070

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30050iGS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)199110-199112

main58964-30070iGS130,JZS13#..4FC..(ROY,ROYG)199110

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30081iGS13#,JZS13#,LS13#..4FC,5F199110-199704

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-30020iYS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)199110-199112

main58994-30050iJZS131,133,135..4FC..(ROY,ROYG)199110-199512

main58994-30060iGS130,JZS13#..4FC..(ROY,ROYG)199110

9011908677

main90119-08677

9017606022

main90176-06022

9054104079

main90541-04079

9166160616

main91661-60616

9353054012

main93530-54012

9354014012

main93540-14012

9354054010

main93540-54010

9356755016

main93567-55016

9616000500

main96160-00500

28 parts on this diagram · 3 diagrams in section
