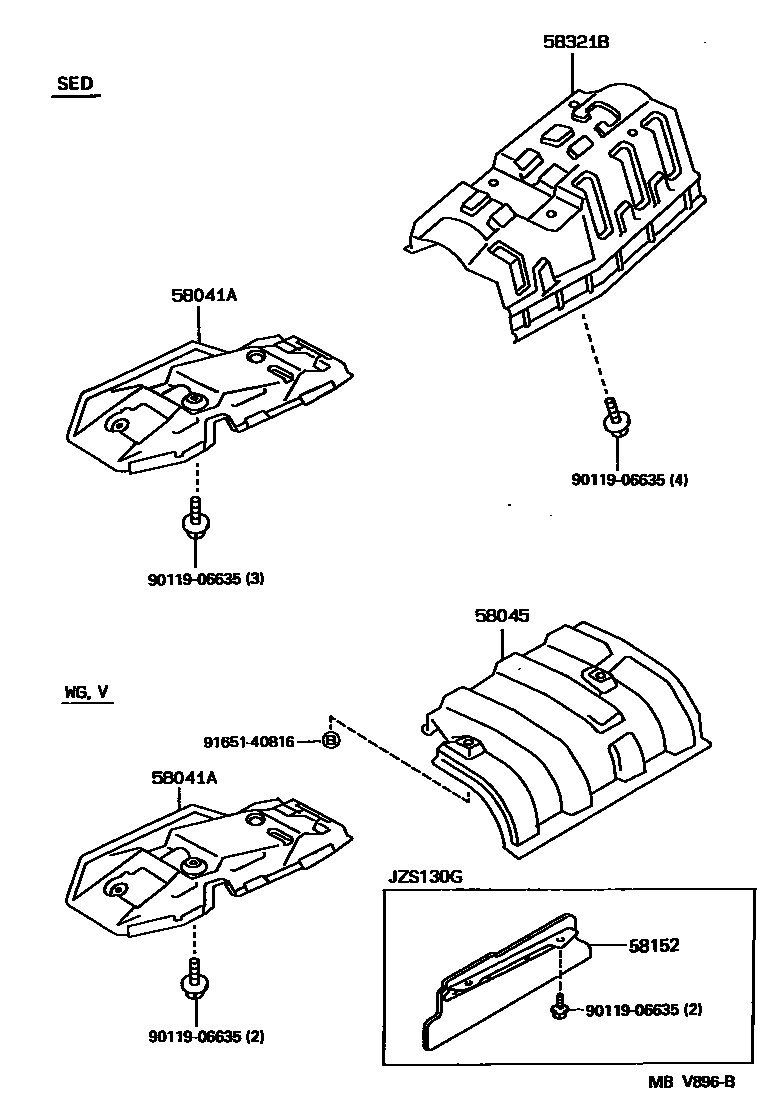

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-30050iGS13#,JZS13#,YS130199112

58045INSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-91704iGS130,JZS130,LS130..WG199110

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58044-31010iJZS130199110

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-30050iGS130,LS130,YS130..SED199112-199512

main58321-30080iGS131,JZS131,LS131199110-199512

main58321-30090iJZS133,135199110-199512

9011906635

main90119-06635

9165140816

main91651-40816

6 parts on this diagram · 1 diagram in section
