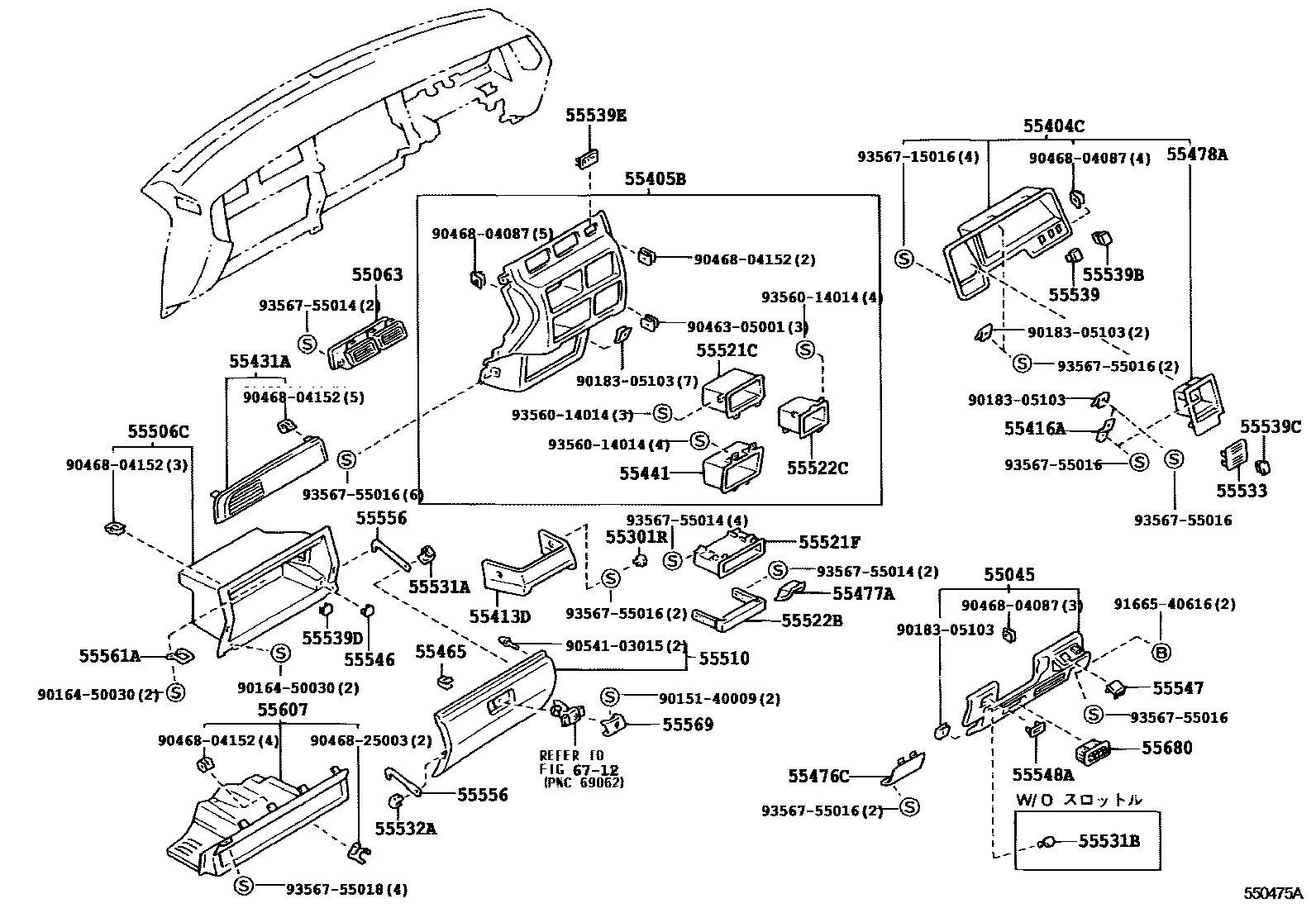

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0005 1 0007 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-30070-E0iGS130..DLX;GS130..4H..SDX..HTWC199110-199512

QUARTZ,TRIM4#

main55045-30070-J0iGS136,LS136;GS130..DLX,STD;GS130..4H..SDX199110-199112

DK.BLUE,TRIM8#

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-30050iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

main55063-30060iGS130,136,LS130,136..DLX,SDX199110

main55670-30080-J0iGS130,136..STD199110-199112

DK.BLUE,TRIM8#

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01581-J0×2iGS130,136,YS130..(4H,4HC)..STD199112-199512

DK.BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-30660iGS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX199110

main55404-30710iGS130,136..STD199110-199112

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-30300-J0iGS130,136..STD199110-199112

DK.BLUE,TRIM8#

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-30080-J0iGS130,136..4H..STD199110-199112

DK.BLUE,TRIM8#

55416ARETAINER, METER HOOD, NO.1

main55416-30080iGS130,136..STD199110-199112

55431APANEL, INSTRUMENT PANEL FINISH

main55044-30200iGS136;GS130,LS136..DLX,STD199110-199112

main55044-30210iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110-199704

main55044-30240-B0iGS130,JZS130,LS130..ROY,SALEX199704

SHADOW GRAY,TRIM1#

main55044-30240-E0iGS130,JZS130,LS130..ROY,SALEX199704

DK.ROSE,TRIM4#

main55044-30240-J0iGS130..SDX199704

DK.BLUE,TRIM8#

55441BOX, INSTRUMENT PANEL

main55440-30030-B0iJZS13#..4FC..(ROY,ROYG)199308-199512

SHADOW GRAY,TRIM1#

main55440-30030-E0iGS130,131,LS130..SALEX; JZS13#,LS131..4FC199308-199512

main55440-30030-J0iGS130,131,LS130..ROY,SALEX; JZS13#,LS131..4FC199308-199512

main55440-30050-B0iJZS13#..4FC..(ROY,ROYG)199110-199308

SHADOW GRAY,TRIM1#

main55440-30050-E0iJZS13#..4FC;GS130,131,LS130,131..SALEX199110-199308

QUARTZ,TRIM4#

main55440-30050-J0iJZS13#..4FC;GS130,131,LS130,131..ROY,SALEX199110-199308

DK.BLUE,TRIM8#

main55441-30180-E0iLS130..SDX;GS130,131..HTWC199308-199512

main55441-30180-J0iGS130..WG..SDX;GS13#,LS130,136..(SED,V)..(DLX,SALEX,SDX)199308-199904

main55441-30190-J0iYS130;GS130,136..STD199110-199512

DK.BLUE,TRIM8#

55465COVER, INSTRUMENT HOLE

main55531-30170iGS130..STD;GS136,LS136..DLX,STD199110-199112

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-30110-E0iGS130..4H..(DLX,SDX)..HTWC199110-199512

QUARTZ,TRIM4#

main55476-30110-J0iGS130,136..4H199110-199112

DK.BLUE,TRIM8#

main55476-30120-E0iGS130..5F..DLX199110-199512

QUARTZ,TRIM4#

main55476-30120-J0iGS136,LS136..4FC,5F;GS130..5F..(DLX,STD)199110

DK.BLUE,TRIM8#

main55476-30130-E0iGS130..4FC..DLX199110-199512

QUARTZ,TRIM4#

main55476-30130-J0iGS130..4FC..DLX;GS130..ATM..SDX..TWLPG199110-199512

DK.BLUE,TRIM8#

main55476-30140-E0iGS130..5F..SDX; GS131,LS130..SED;GS130..ATM..(SALEX,SDX)..HTWC199110-199512

main55476-30140-J0iGS130..5F..SDX199110-199512

main55476-30150-E0iGS130..5F..SDX199110-199512

main55476-30150-J0iGS130..5F..SDX199110-199512

main55476-30190-J0iGS130..ROY199112-199512

DK.BLUE,TRIM8#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-30040iGS130,136..STD199110-199112

main55477-30050iGS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX199110

55478ABEZEL, AUTO CLOCK HOLE

main55478-30080iYS130;GS130,136..STD199112-199512

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-30090iGS13#,JZS13#,LS13#199110-199112

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30220-J0iYS130;GS130,136..STD199112-199512

DK.BLUE,TRIM8#

main55550-30230-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main55550-30230-E0iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main55550-30230-J0iGS13#..DLX,SDX199512-199704

DK.BLUE,TRIM8#

main55550-30330-B0iGS130,JZS130,LS130..ROY,SALEX199704

SHADOW GRAY,TRIM1#

main55550-30330-E0iGS130,JZS130,LS130..ROY,SALEX199704

DK.ROSE,TRIM4#

main55550-30330-J0iGS130..SDX199704

DK.BLUE,TRIM8#

55521CCOVER, STEREO OPENING

main55521-30120-J0iGS130,136..STD199110-199112

DK.BLUE,TRIM8#

55521FCOVER, STEREO OPENING, NO.2

main55521-16030iGS13#,JZS13#,LS13#199110-199112

55522BCOVER, RADIO TUNER OPENING

main55522-16030iGS136..STD199110-199308

main55522-30100-C0iJZS13#..4HC199110-199904

BLACK,TRIM1#,4#,8#

55522CCOVER, RADIO RECEIVER OPENING

main55522-30110-J0iGS130,136..STD199110-199112

DK.BLUE,TRIM8#

55531APANEL, GLOVE COMPARTMENT, NO.1

main55531-30160iGS13#,JZS13#,LS13#199110-199112

55531BCOVER, CHOKE KNOB HOLE

main55531-30130-E0iGS130..DLX;GS130..4H..SDX..HTWC199110-199512

QUARTZ,TRIM4#

main55531-30130-J0iGS136,LS136;GS130..DLX,STD;GS130..4H..SDX199110-199112

DK.BLUE,TRIM8#

55532APANEL, GLOVE COMPARTMENT, NO.2

main55532-30050iGS13#,JZS13#,LS13#199110-199112

55533COVER, AUTO CLOCK HOLE

main55533-30100iGS130,136..STD199110-199112

main55533-30130iGS130..TWLPG199112-199512

55539COVER, SPARE SWITCH HOLE

main55539-30090iJZS130,131;JZS133,135..4FC;GS13#,LS13#..DLX,SALEX,SDX,STD199110-199308

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-30090iGS136..MTM;GS130,131,JZS131,133,LS13#..SED,V199110-199112

55539CCOVER, SPARE SWITCH HOLE

main55539-30090iJZS131..SALEX;GS13#,JZS130,LS13#..DSL,HTWC,TDE,TDEC,TWC199110

55539DCOVER, SPARE SWITCH HOLE

main55546-30030iGS13#,JZS130,131,133,LS13#199110-199112

55539ECOVER, SPARE SWITCH HOLE

main55538-20050iGS130,136..STD199110-199112

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iGS130..STD;GS130,136,JZS130,LS130,136..V,WG199110-199112

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-E0iGS130..4H..SDX..HTWC199110-199512

QUARTZ,TRIM4#

main74267-24010-J0iGS130..5F..STD;GS130..4H..(SDX,STD);GS136,LS136..DLX,STD199110-199112

DK.BLUE,TRIM8#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-30070-E0iGS130..DLX;GS130..4H..SDX..HTWC199110-199512

QUARTZ,TRIM4#

main55548-30070-J0iGS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG199110-199904

DK.BLUE,TRIM8#

main55548-30080-B0iJZS13#..ROY,ROYG199110-199512

SHADOW GRAY,TRIM1#

main55548-30080-E0iGS130,131,JZS13#,LS130,131..(4FC,4HC,5F)..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

QUARTZ,TRIM4#

main55548-30080-J0iGS130,131,JZS13#,LS130,131..(4FC,4HC,5F)..(ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC)199110-199512

DK.BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-30050×2iGS13#,JZS13#,LS13#199110-199112

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-30030iGS13#,JZS13#,LS13#199110-199112

main55561-31010iGS130,JZS130,LS130199704

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-30010-B0iGS130,JZS130,LS130..ROY,SALEX199512-199704

GRAY,TRIM1#

main55569-30010-E0iGS130,JZS130,LS130..ROY,SALEX199512-199704

DK.ROSE,TRIM4#

main55569-30010-J0iGS13#..DLX,SDX199512-199704

DK.BLUE,TRIM8#

main55569-31010-B0iGS130,JZS130,LS130..ROY,SALEX199704

SHADOW GRAY,TRIM1#

main55569-31010-E0iGS130,JZS130,LS130..ROY,SALEX199704

DK.ROSE,TRIM4#

main55569-31010-J0iGS130..SDX199704

DK.BLUE,TRIM8#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30120-B0iGS130,JZS130,LS130..ROY,SALEX199512-199904

SHADOW GRAY,TRIM1#

main55607-30120-E0iGS130,JZS130,LS130..ROY,SALEX199512-199904

QUARTZ,TRIM4#

main55607-30120-J0iGS13#..DLX,SDX199512-199904

DK.BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-C0iGS130,131,JZS130,131,LS130,131..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC); JZS13#..ROY,ROYG199110-199512

BLACK,TRIM1#,4#,8#; BLACK,TRIM4#,8#

6712LOCK CYLINDER SET

→ Go to FIG 67-12

9015140009

main90151-40009

9016450030

main90164-50030

9018305103

main90183-05103

9046305001

main90463-05001

9046804087

main90468-04087

9046804152

main90468-04152

9046825003

main90468-25003

9054103015

main90541-03015

9166540616

main91665-40616

9356014014

main93560-14014

9356715016

main93567-15016

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

51 parts on this diagram · 4 diagrams in section
