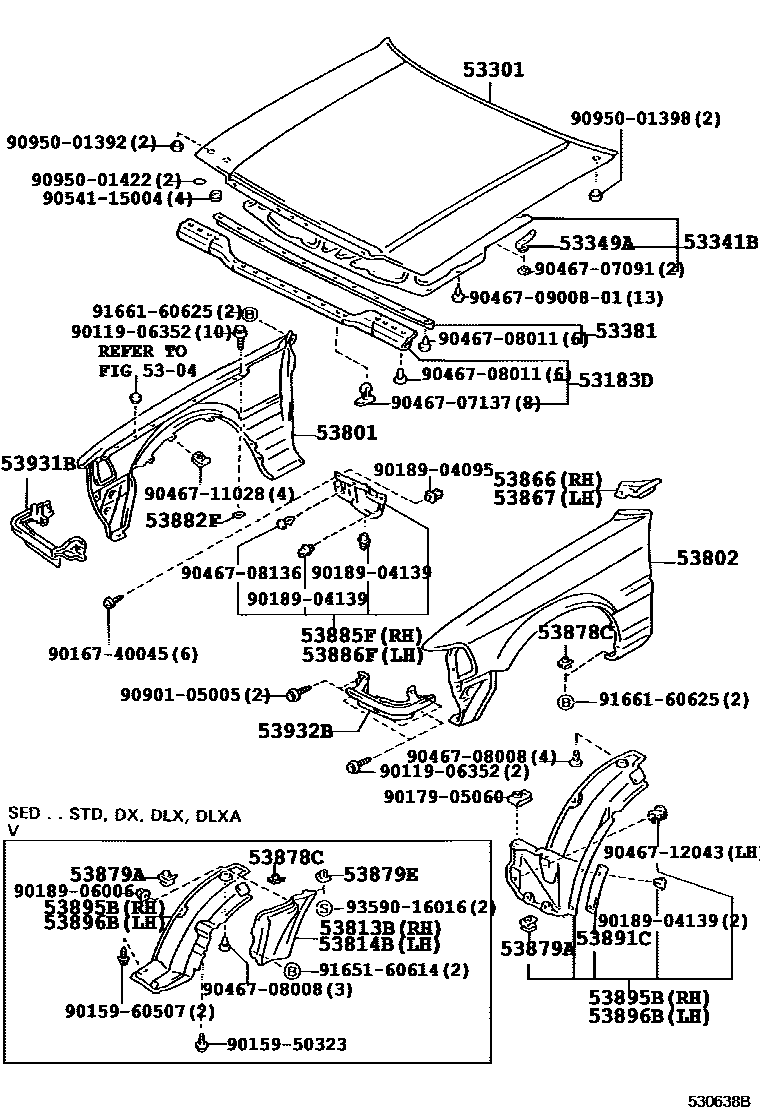

HOOD & FRONT FENDER

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-30060iGS130,136,LS130,136..DLX,SDX,STD199110-199112

main53183-30070iGS131;GS130,JZS13#,LS130,131..(ROY,ROYG,SALEX)..(TDE,TDEC,TWC,TWLPG)199110-199512

main53183-30230iGS130,JZS130,LS130..ROY,SALEX199512

53301HOOD SUB-ASSY

main53301-30320iGS13#,JZS13#,LS13#199110-199112

53341BINSULATOR, HOOD

main53341-30102iGS136..SDX199110-199308

main53341-30112iGS136..SDX;GS130,131,JZS13#,LS13#..DSL,HTWC,TDE,TWC199308-199809

main53341-30122iGS130,YS130..(DLX,ROY,SDX)..(LPEFI,TWLPG)199112-199512

main53341-31010iGS130,JZS130199809-199901

53349ARETAINER, HOOD INSULATOR

main53349-30010×2iGS136..SDX;GS130,131,JZS13#,LS13#,YS130..DLX,ROY,ROYG,SALEX,SDX199110

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30120iGS13#,JZS13#,LS13#199110-199112

53801FENDER SUB-ASSY, FRONT RH

main53801-3F050iGS130,LS130..SDX..(HTWC,TDE,TDEC)199110

main53801-3F110iGS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX199110-199512

main53801-3F120iGS130,131,JZS131,133,135,LS131..(ROY,ROYG,SALEX)..(HTWC,TDE,TDEC,TWC)199110-199512

main53801-3F130iYS130..DLX,DLXA199112-199512

main53801-3F150iGS136..SDX;GS130,YS130..DLX199110

main53801-3F160iGS130..STD;GS136,LS136..DLX,STD199110-199112

53802FENDER SUB-ASSY, FRONT LH

main53802-3A720iGS130,LS130..SDX..(HTWC,TDE,TDEC)199110

main53802-3A770iGS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX199110-199512

main53802-3A780iGS130,JZS130,LS130..WG..(ROY,SALEX)199110

main53802-3A790iGS130,LS130..SDX199110

main53802-3A810iGS136..SDX;GS130,YS130..DLX199110

main53802-3A820iGS136,LS136..DLX,STD;GS130,YS130..DLXA,STD199112

53813BEXTENSION, FRONT FENDER, RH

main53813-30040iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

53814BEXTENSION, FRONT FENDER, LH

main53814-30040iGS136;GS130,LS136..DLX,STD199110-199112

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30040iGS13#,JZS13#,LS13#199110-199112

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30040iGS13#,JZS13#,LS13#199110-199112

53878CSPACER, FRONT FENDER

main53878-14020×2iGS13#,JZS13#,LS13#199110-199112

FENDER X ROCKER

main53878-30020iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112-199308

FENDER EXTENSION

53879ARETAINER, FRONT FENDER LINER

main53879-22030×2iGS136;GS130,LS136..DLX,STD199110-199112

main53879-30010×4iGS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

53879ESPACER, FRONT FENDER, LH

main53878-30020iGS136;GS130,LS136..DLX,STD199110-199112

53882FSEAL, FRONT FENDER

main53882-16030iGS130..ATM..SDX..TWLPG;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX199110

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-30030iGS13#,JZS13#,LS13#199110-199112

main53885-30070iGS13#,JZS13#,LS13#,YS130199306

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-30030iGS13#,JZS13#,LS13#199110-199112

main53886-30070iGS13#,JZS13#,LS13#,YS130199306

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-30020×2iYS130..DLX,DLXA;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX199110

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-30010iGS136;GS130,LS136..DLX,STD199110-199112

main53895-30020iYS130..DLX,DLXA199112-199512

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-30010iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

main53896-30020iYS130..DLX,DLXA199112-199512

53931BPANEL, FRONT END, RH

main53903-30260iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

main53903-30270iGS130..WG..SDX;GS130,LS130..SED..(SALEX,SDX)199110

53932BPANEL, FRONT END, LH

main53904-30260iGS136;GS130,LS136..DLX,STD199110-199112

main53904-30270iYS130..DLX,DLXA199112-199512

9011906352

main90119-06352

9015950323

main90159-50323

9015960507

main90159-60507

9016740045

main90167-40045

9017905060

main90179-05060

9018904095

main90189-04095

9018904139

main90189-04139

9018906006

main90189-06006

9046707091

main90467-07091

9046707137

main90467-07137

9046708008

main90467-08008

9046708011

main90467-08011

9046708136

main90467-08136

904670900801

main90467-0900801

9046711028

main90467-11028

9046712043

main90467-12043

9054115004

main90541-15004

9090105005

main90901-05005

9095001392

main90950-01392

9095001398

main90950-01398

9095001422

main90950-01422

9165160614

main91651-60614

9166160625

main91661-60625

9359016016

main93590-16016

47 parts on this diagram · 1 diagram in section
