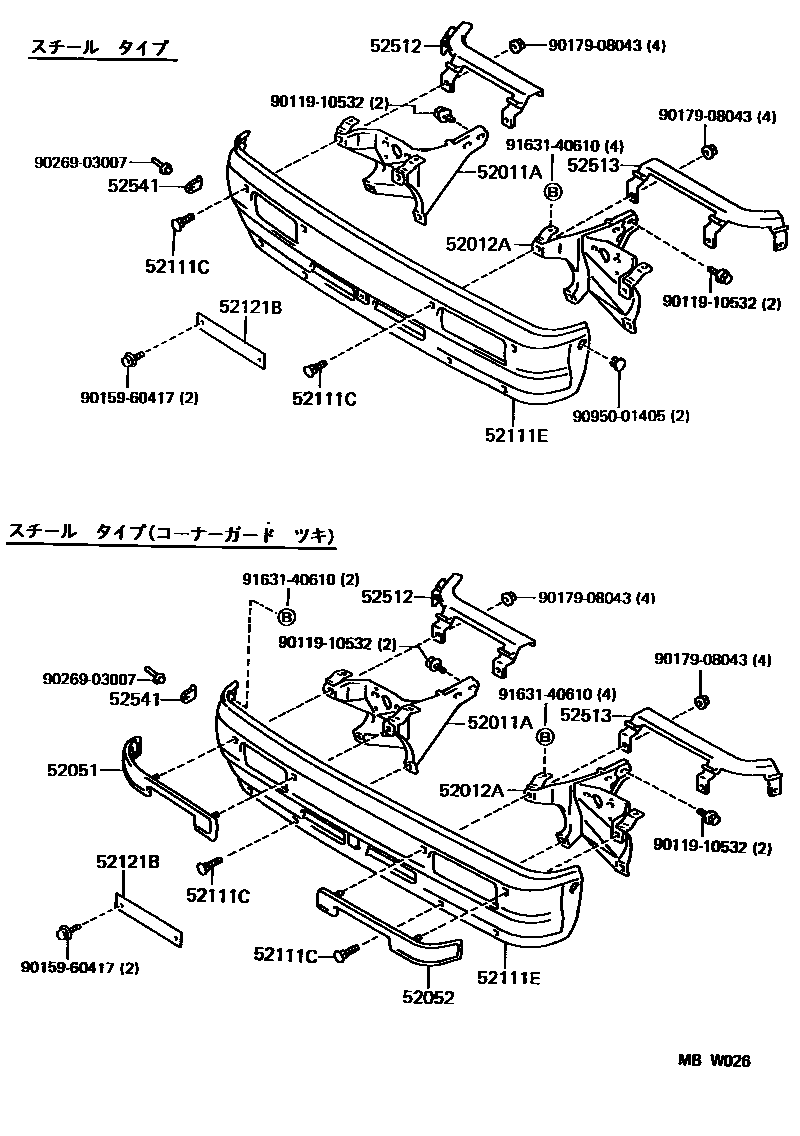

FRONT BUMPER & BUMPER STAY

0001 1 0002 1YS130..DLX,DLXA(����� ���) 0004 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-30150iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-30160iGS136;GS130,LS136..DLX,STD199110-199112

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-30080iGS136..DLX,SDX;GS130,LS136..DLX199110-199112

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-30060iGS136..DLX,SDX;GS130,LS136..DLX199110-199112

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08031×8iGS130,136..STD199110-199112

52111EBAR, FRONT BUMPER

main52111-30180iGS136;GS130,LS136..DLX,STD199110-199112

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-30080iGS136;GS130,LS136..DLX,STD199110-199112

52512FILLER, FRONT BUMPER, RH

main52512-30030iGS136;GS130,LS136..DLX,STD199110-199112

52513FILLER, FRONT BUMPER, LH

main52513-30030iGS136;GS130,LS136..DLX,STD199110-199112

52541PROTECTOR, FRONT BUMPER

main52541-30030×2iGS136;GS130,LS136,YS130..DLX,DLXA,STD199112

9011910532

main90119-10532

9015960417

main90159-60417

9017908043

main90179-08043

9026903007

main90269-03007

9095001405

main90950-01405

9163140610

main91631-40610

16 parts on this diagram · 3 diagrams in section
