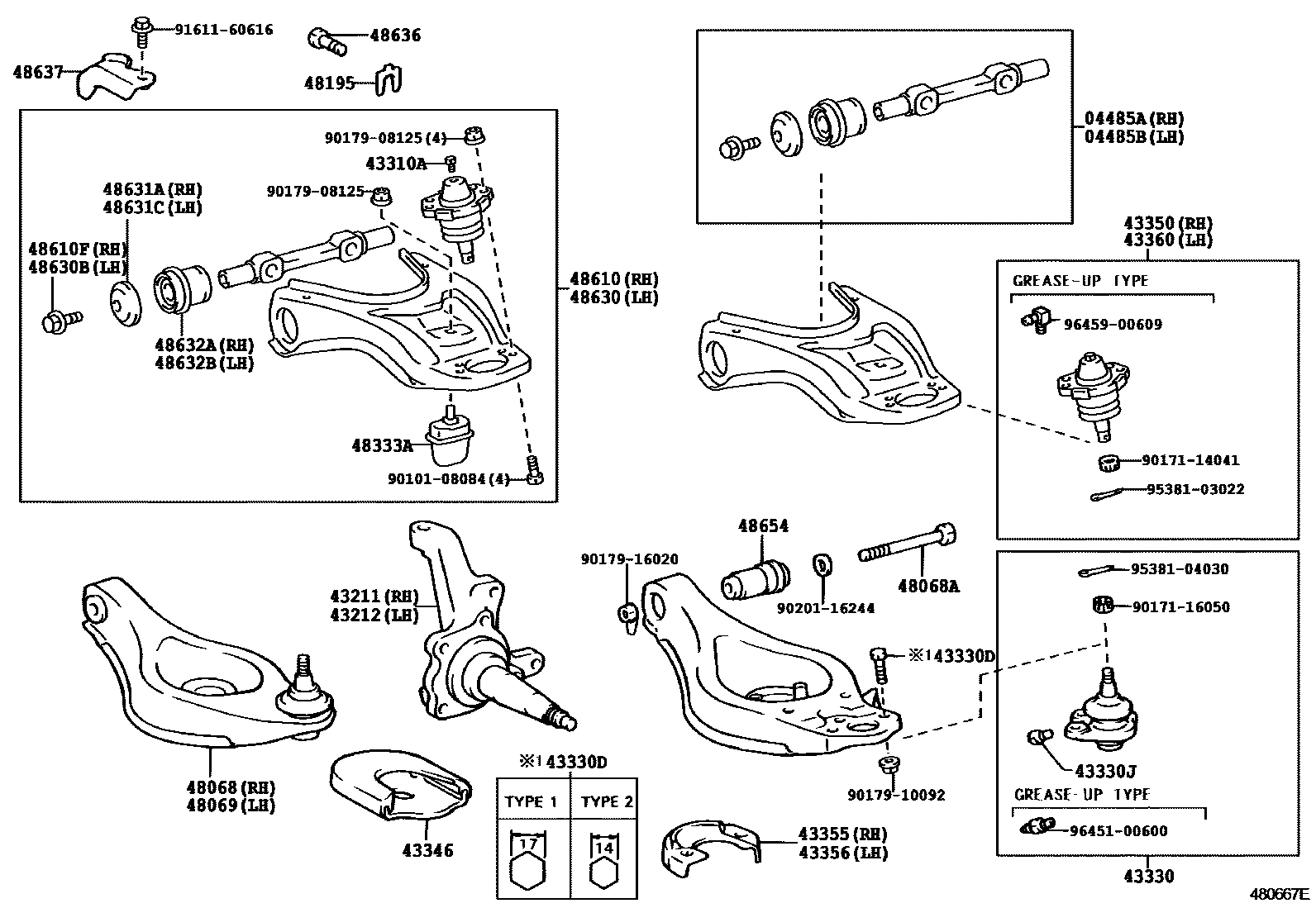

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-30050iGS136,LS136199110-199308

main04485-30060iGS136,LS136199110-199308

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-30050iGS136,LS136199110-199308

main04485-30060iGS136,LS136199110-199308

43211KNUCKLE, STEERING, RH

main43211-30120iGS136,LS136199110-199308

main43211-30140iGS136,LS136199110-199308

main43211-30150iJZS131,133,LS131199110-199512

43212KNUCKLE, STEERING, LH

main43212-30060iGS136,LS136199110-199308

main43212-30090iGS130..4H..SDX..HTWC;GS130,LS130,136..SED,V;GS131,136,JZS131,133,LS131,YS130..(4FC,4H,4HC)..(DLX,DLXA,ROY,SALEX,STD)199308-199512

main43212-30100iJZS131,133,LS131199110-199512

43310APLUG (FOR BALL JOINT)

main90345-06014iJZS130,131,133199110-199308

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39225iGS130..WG..4FC199508-199512

main43330-39235iGS130,YS130..LPEFI,TWLPG199112-199512

main43340-39205iGS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC199110-199904

main43340-39215iGS130,YS130..LPEFI,TWLPG199112-199512

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90101-10188iGS13#,JZS13#,LS13#199110-199112

main90105-10360×2iGS13#,JZS13#,LS13#199110-199112

43330JPLUG (FOR LOWER BALL JOINT)

main90345-06014×2iGS13#,JZS135,LS13#..DSL,HTWC,TDEC,TWC199110-199308

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-30010iGS13#,JZS13#,LS13#,YS130199112

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39055iGS130,YS130..LPEFI,TWLPG199112-199512

main43350-39065iGS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC199110

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-30040iGS136,LS136199110-199308

main43355-30050iGS136,LS136199110-199308

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-30030iGS136,LS136199110-199308

main43356-30040iGS130,131,JZS13#,LS130,131199110-199112

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39055iGS130,YS130..LPEFI,TWLPG199112-199512

main43350-39065iGS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TDEC,TWC199110

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30140iJZS135199110-199512

main48068-30150iGS130,131,JZS130,131,133,LS130,131..HTWC,TDEC,TWC199110-199308

main48068-30170iGS130,YS130..LPEFI,TWLPG199112-199512

main48068-30230iGS136,LS136199110-199308

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-16024×2iGS13#,JZS13#,LS13#,YS130199112

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30140iJZS135199110-199512

main48069-30150iGS130,131,JZS130,131,133,LS130,131..HTWC,TDEC,TWC199110-199308

main48069-30170iGS130,YS130..LPEFI,TWLPG199112-199512

main48069-30230iGS136,LS136199110-199308

48195SHIM, CAMBER ADJUST

main90565-15016iGS13#,JZS13#,LS13#,YS130199112

main90565-15017iGS13#,JZS13#,LS13#,YS130199112

main90565-15018iGS13#,JZS13#,LS13#,YS130199112

48333ASUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM

main48333-30021×2iGS136,LS136199110-199308

main48333-30030×2iJZS135199308-199512

main48333-30040×2iGS130,131,LS130,131..HTWC,TDEC199110-199308

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-30110iGS13#,JZS130,131,133,LS13#..DSL,HTWC,TDE,TWC199308-199904

main48610-30120iGS130,YS130..LPEFI,TWLPG199112-199512

main48610-30130iGS136,LS136199110-199308

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-12017×2iGS13#,JZS13#,LS13#199110-199112

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-30110iGS130,131,JZS130,131,133,LS130,131..HTWC,TDEC,TWC199110-199308

main48630-30120iGS130,YS130..LPEFI,TWLPG199112-199512

main48630-30130iGS136,LS136199110-199308

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-12017×2iGS13#,JZS13#,LS13#199110-199112

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02020×2iGS13#,JZS13#,LS13#,YS130199112

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02020×2iGS13#,JZS13#,LS13#,YS130199112

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30040×2iGS136,LS136199110-199308

main48632-30070×2iGS136,LS136199110-199308

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30040×2iGS136,LS136199110-199308

main48632-30070×2iGS13#,JZS13#,LS13#,YS130199308

48636BOLT, UPPER ARM SET

main90105-14062×4iGS13#,JZS13#,LS13#199110-199112

48637INSULATOR, UPPER ARM BUSH

main48637-30010iLS130,131199110

48654BUSH, LOWER ARM

main48654-30030×2iJZS130,131,133199110-199112

main48654-30040×2iGS136,LS136199110-199308

9010108084

main90101-08084

9017114041

main90171-14041

9017116050

main90171-16050

9017908125

main90179-08125

9017910092

main90179-10092

9017916020

main90179-16020

9020116244

main90201-16244

9161160616

main91611-60616

9538103022

main95381-03022

9538104030

main95381-04030

9645100600

main96451-00600

9645900609

main96459-00609

41 parts on this diagram · 2 diagrams in section
