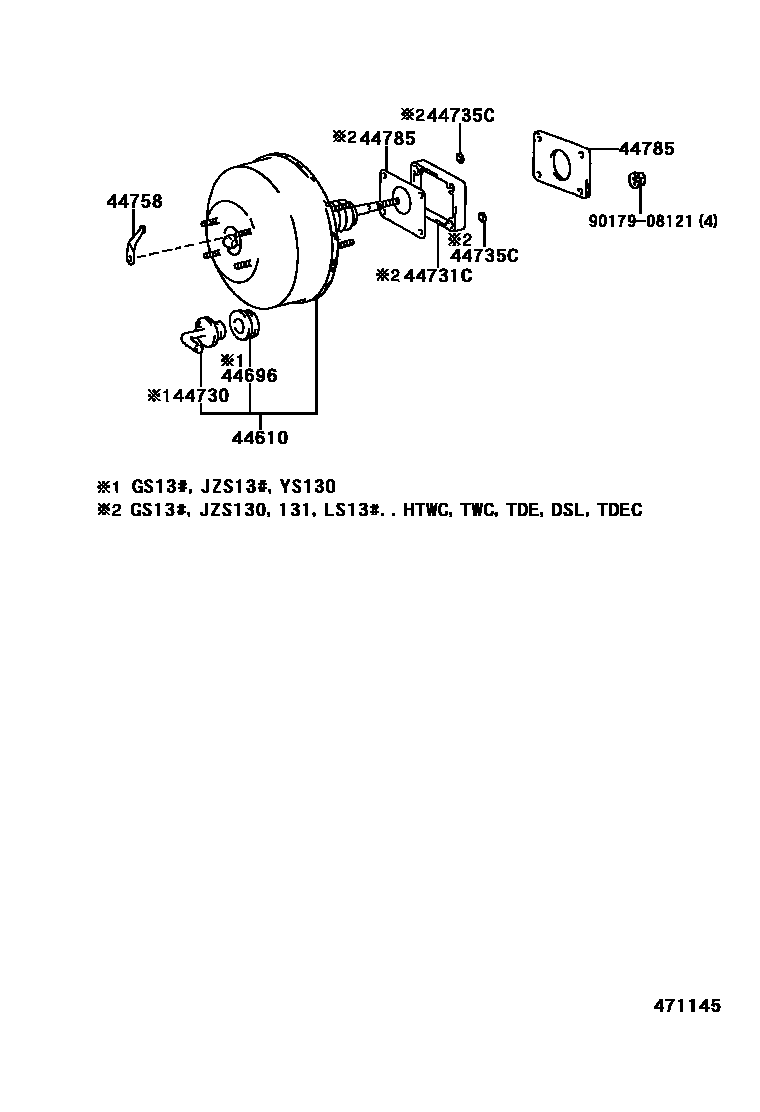

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-30800iJZS133,135199110-199512

main44610-30850iJZS131199110-199512

main44610-30871iLS13#199110-199904

main44610-30881iGS136..4FC,5F199508-199904

main44610-30890iGS130,YS130..LPEFI,TWLPG199112-199512

main44610-3A010iGS130,131,JZS130..HTWC,TWC199110-199508

44696GROMMET, CHECK VALVE

main90480-24015iJZS133,135199110-199512

main90480-24439iGS13#,JZS130,131199110-199112

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iGS13#,JZS130,131,YS130199112-199508

main44730-28010iJZS133,135199110-199512

main44730-60050iLS13#199110-199904

44731CBRACKET, BRAKE BOOSTER

main44731-20080iGS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC199110-199508

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iGS13#,JZS130,131,LS13#..DSL,HTWC,TDE,TDEC,TWC199110-199508

44758BRACKET, VACUUM CHECK VALVE

main44758-30120iGS130,YS130..LPEFI,TWLPG199112-199512

main44758-30150iGS13#,JZS13#..HTWC,TWC199110-199508

44785GASKET, BRAKE BOOSTER

main44785-30020iGS13#,JZS130,LS130199708-199904

main44785-30030iGS13#,JZS13#,LS13#199110-199112

9017908121

main90179-08121

8 parts on this diagram · 6 diagrams in section
