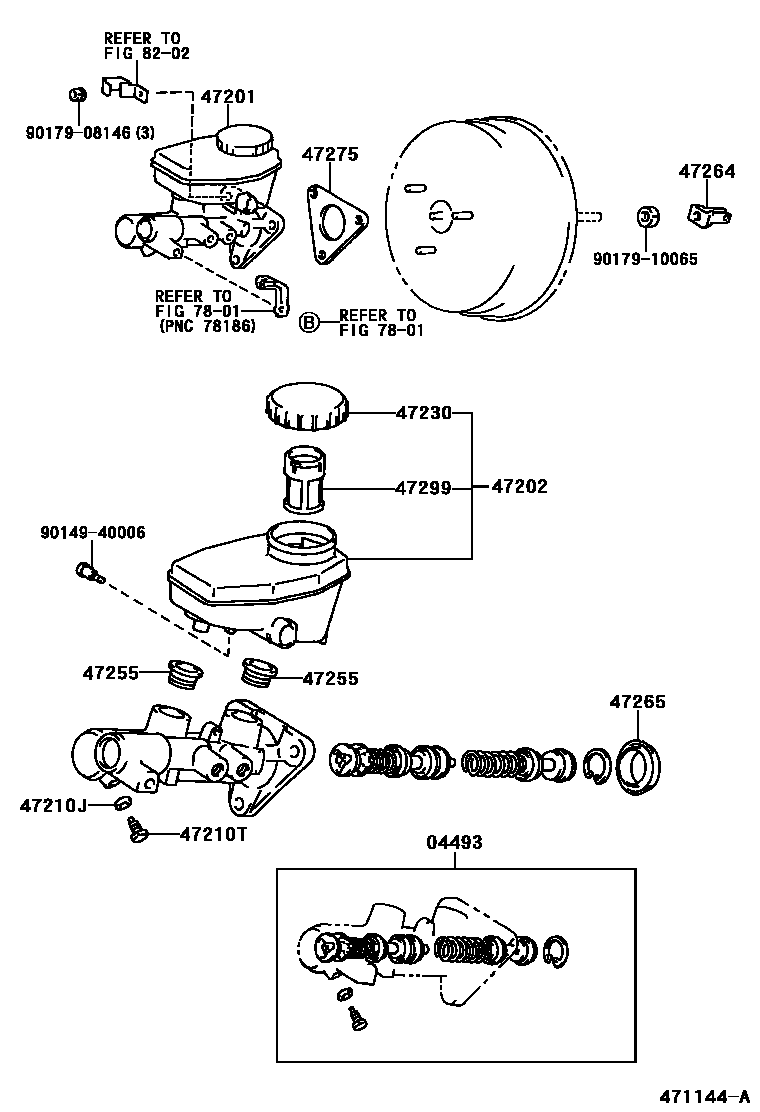

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-24050iJZS131,133,135199110-199512

sub04493-30240

main04493-30180iGS130,YS130..LPEFI,TWLPG199112-199512

sub04493-22210

main04493-30210iGS13#,JZS130,LS13#..DSL,HTWC,TDE,TDEC,TWC199110-199407

sub04493-30211

main04493-30211iGS13#,JZS130,LS13#..DSL,HTWC,TDE,TWC199407-199803

sub04493-30231

main04493-30231iGS13#,JZS130,LS130199803-199904

sub04493-30233

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30390iJZS131,133,135199110-199512

main47201-30410iGS131,LS131199110-199512

main47201-30420iGS130,136,JZS130,LS130,136..DSL,HTWC,TDE,TDEC,TWC199110-199904

main47201-30430iGS130,YS130..LPEFI,TWLPG199112-199512

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-30130iGS13#,JZS13#,LS13#199110-199904

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iGS13#,JZS130,LS130199708-199904

main90430-06104iGS13#,JZS130,LS13#,YS130199110-199708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iYS130;GS130..SED..4H;GS13#,JZS130,LS13#..4FC,4HC,5F199110-199904

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iGS13#,JZS13#,LS13#,YS130199110-199904

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iYS130;GS130..SED..4H;GS13#,JZS13#,LS13#..4FC,4HC,5F199110-199904

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGS130,YS130..LPEFI,TWLPG199112-199410

main47264-28010iGS130,YS130..LPEFI,TWLPG199410-199512

main47264-50010iGS13#,JZS13#,LS13#..DSL,HTWC,TDE,TDEC,TWC199110-199904

47265BOOT, MASTER CYLINDER

main47265-20050iGS13#,JZS130,LS13#199110-199904

main47265-22030iJZS131,133,135199110-199512

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGS130,YS130..LPEFI,TWLPG199112-199512

main47275-32010iGS130..4H..DLX;GS13#,JZS13#,LS13#..(4FC,4HC,5F)..(HTWC,TDE,TWC)199110-199904

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iGS13#,JZS13#,LS13#199110-199904

7801

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
