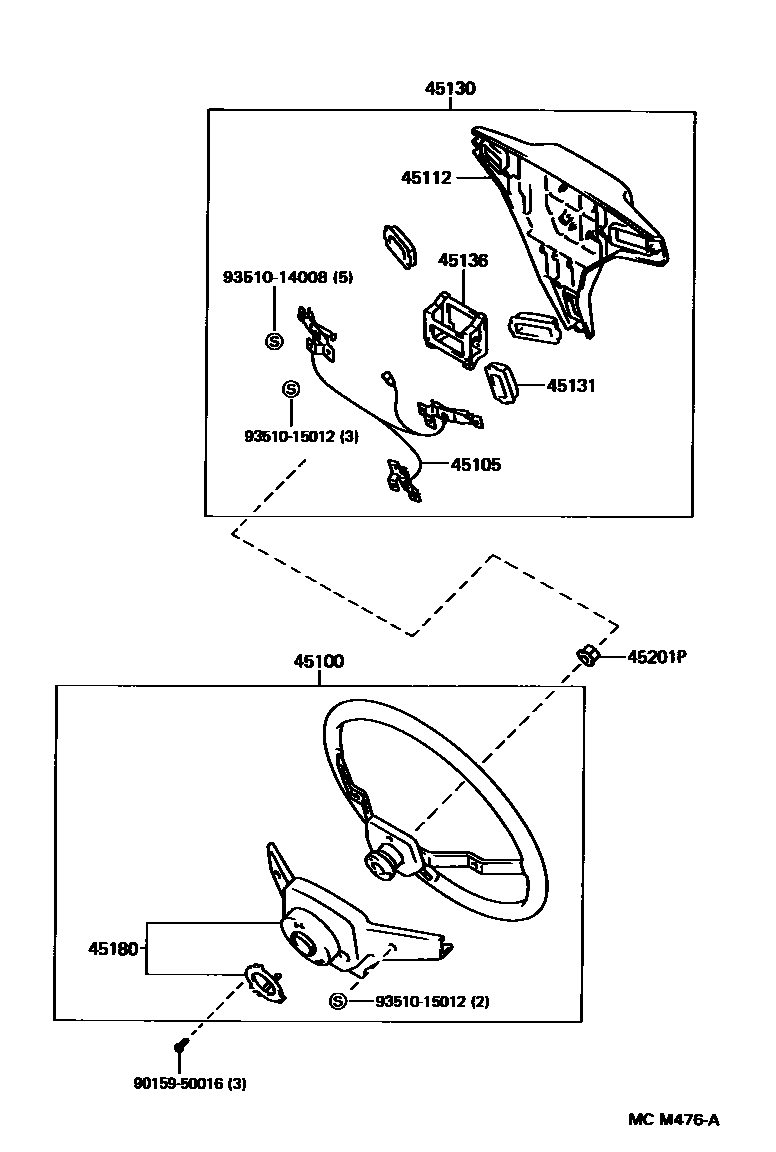

STEERING WHEEL

0001 13-SPOKE, PP 0002 13-SPOKE, URETHANE 0003 1��(����� *80) 0004 1��(������ *80) 0005 14-SPOKE, ��(��-�� ����-�) 0006 13-SPOKE, ��(��-�� ����-�)

45100WHEEL ASSY, STEERING

main45100-30240-J0iGS136,LS136;GS130,YS130..STD199112-199308

main45100-30240-J1iYS130..STD199308-199512

main45100-30510-B0iJZS135..4FC199110-199308

main45100-30510-E0iJZS135..4FC199110-199308

main45100-30510-J3iJZS135..4FC199110-199308

main45100-30511-B0iJZS135..4FC199308-199512

main45100-30511-E0iJZS135..4FC199308-199512

main45100-30511-J3iJZS135..4FC199308-199512

main45100-30520-B0iJZS13#..4FC..(ROY,ROYG)199110-199308

main45100-30520-B1iJZS13#..4FC..(ROY,ROYG)199308-199309

main45100-30520-E0iGS130,131,JZS13#,LS130,131..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199110-199308

main45100-30520-E1iGS130,131,JZS13#,LS130,131..(4FC,5F)..(HTWC,TDE,TWC)199308-199309

main45100-30520-J0iGS13#,JZS13#,LS13#..4FC,5F199110-199308

main45100-30520-J1iGS13#,JZS13#,LS13#..4FC,5F199308-199309

main45100-30521-B1iJZS13#..4FC..(ROY,ROYG)199309-199512

main45100-30521-E1iGS130,131,JZS13#,LS130,131..(4FC,5F)..(HTWC,TDE,TWC)199309-199512

main45100-30521-J1iGS13#,JZS13#,LS13#..4FC,5F199309-199512

main45100-30540-B0iJZS13#..4HC..(ROY,ROYG)199308-199512

main45100-30540-B1iJZS13#..4HC..(ROY,ROYG)199110-199308

main45100-30540-E0iJZS13#..4HC..(ROY,ROYG)199308-199512

main45100-30540-E1iJZS13#..4HC..(ROY,ROYG)199110-199308

main45100-30540-J0iJZS13#..4HC..(ROY,ROYG)199308-199512

main45100-30540-J1iJZS13#..4HC..(ROY,ROYG)199110-199308

main45100-30550-B0iJZS130,131,133..4FC..ROY199308-199512

main45100-30550-B1iJZS13#..4FC..(ROY,ROYG)199210-199308

main45100-30550-E0iJZS130,131,133..4FC..ROY199308-199512

main45100-30550-E1iJZS13#..4FC..(ROY,ROYG)199210-199308

main45100-30550-J0iJZS130,131,133..4FC..ROY199308-199512

main45100-30550-J3iJZS130,131,133..4FC..ROY199110-199210

main45100-30560-B0iJZS133..4FC199302-199308

main45100-30560-B1iJZS133..4FC199209-199302

main45100-30560-E0iJZS133..4FC199209-199308

main45100-30560-J0iJZS133..4FC199209-199308

main45100-30570-B0iJZS130,131..4FC..ROY199110-199512

main45100-30570-E0iJZS130..4FC..ROY;GS130,131,JZS131,LS131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC)199110-199512

main45100-30570-J0iJZS130..4FC..ROY;GS130,131,JZS131,LS131..4FC..(ROY,SALEX)199110-199512

main45100-30580-B0iJZS130,131..4HC..ROY199110-199512

main45100-30580-E0iGS130..(DLX,SDX)..HTWC;JZS130,LS130..SALEX,SDX;GS130,JZS130,131..4HC..(HTWC,TWC)199110-199512

main45100-30580-J0iGS136..SDX199512-199904

main45100-30580-J1iGS136,LS136..(4FC,5F)..DLX199408-199904

main45100-30590-B0iJZS133..4FC199110-199308

main45100-30590-E0iJZS133..4FC199110-199308

main45100-30590-J0iJZS133..4FC199110-199308

main45100-30730-B4iGS130,JZS130..SALEX199704-199904

main45100-30730-E4iGS130,JZS130..SALEX199704-199904

main45100-30740-B3iGS130,JZS130,LS130..ROY,SALEX199704-199904

main45100-30740-E3iGS130,JZS130,LS130..ROY,SALEX199704-199904

main45100-30740-J1iGS130..SDX199704-199904

main45100-30770-B0iGS130,JZS130,LS130..4FC..(ROY,SALEX)199512-199607

main45100-30770-E0iGS130,131,JZS130,131,LS130,131..4FC..(ROY,SALEX)..(HTWC,TDE,TDEC,TWC)199110-199607

main45100-30770-J0iGS13#..DLX,SDX199512-199607

main45100-30780-B0iJZS130,131,133..4FC..ROY199110-199607

main45100-30780-E0iJZS130,131,133..4FC..ROY199110-199607

main45100-30780-J0iJZS130,131,133..4FC..ROY199110-199508

main45100-30790-B0iJZS130..4HC199512-199607

main45100-30790-E0iJZS130..4HC199512-199607

main45100-30800-B0iGS130,JZS130,LS130..4FC..(ROY,SALEX)199607-199704

main45100-30800-E0iGS130,JZS130,LS130..4FC..(ROY,SALEX)199607-199704

main45100-30800-J0iGS136199607-199904

main45100-30810-B0iJZS135..4FC199110-199512

main45100-30810-E0iJZS135..4FC199110-199512

main45100-30810-J0iJZS135..4FC199110-199512

main45100-30830-B0iGS130,JZS130..SALEX199512-199607

main45100-30830-E0iGS130,JZS130..SALEX199512-199607

main45100-30840-B0iJZS130..4FC..ROY199607-199704

main45100-30840-E0iJZS130..4FC..ROY199607-199704

main45100-30850-B0iJZS130..4HC199607-199704

main45100-30850-E0iJZS130..4HC199607-199704

main45100-30860-B0iGS130,JZS130..SALEX199607-199704

main45100-30860-E0iGS130,JZS130..SALEX199607-199704

main45100-31010-B1iJZS130..4FC..ROY199704-199904

main45100-31010-E1iJZS130..4FC..ROY199704-199904

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-30180iJZS135..4FC199110-199308

main45105-30181iJZS135..4FC199308-199512

main45105-30200iGS130..STD;GS136,LS136199110-199112

45112PAD, STEERING WHEEL

main45112-30240-J0iGS130..STD;GS136,LS136199110-199112

3-SP0KE STEERING,DARK BLUE,TRIM8#

45130BUTTON ASSY, HORN

main45130-2B170-B1iJZS13#..4FC..(ROY,ROYG)199204-199305

main45130-2B170-E1iGS130,131,JZS13#,LS130,131..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199204-199305

main45130-2B170-J1iGS13#,JZS13#,LS13#..4FC,5F199204-199305

main45130-2B320-B0iJZS13#..4FC..(ROY,ROYG)199305-199309

main45130-2B320-E0iGS130,131,JZS13#,LS130,131..(4FC,5F)..(HTWC,TDE,TWC)199308-199309

main45130-2B320-J0iGS130,131,JZS13#,LS13#..4FC,5F199305-199309

main45130-2B321-B0iJZS13#..4FC..(ROY,ROYG)199309-199512

main45130-2B321-E0iGS130,131,JZS13#,LS130,131..(4FC,5F)..(HTWC,TDE,TWC)199309-199512

main45130-2B321-J0iGS130,131,JZS13#,LS13#..4FC,5F199309-199512

main45130-30370-B0iJZS135..4FC199110-199512

main45130-30370-E0iJZS135..4FC199110-199512

main45130-30370-J0iJZS135..4FC199110-199512

main45130-30390-B0iJZS135..4HC;JZS130,131,133..ROY199110-199210

3-SP0KE STEERING,SHADOW GRAY,TRIM1#

main45130-30390-E0iGS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199210-199308

3-SP0KE STEERING,DARK ROSE,TRIM4#

main45130-30390-J0iJZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130..DLX,DLXA,ROY,SALEX,SDX199308-199512

3-SP0KE STEERING,DARK BLUE,TRIM8#

main45130-30400-J0iYS130..STD199112-199512

3-SP0KE STEERING,DARK BLUE,TRIM8#

main45130-30420-B1iGS130,JZS130,LS130..ROY,SALEX199704-199809

main45130-30420-E1iGS130,JZS130,LS130..ROY,SALEX199704-199809

main45130-30420-J0iGS130..SDX199704-199809

main45130-30421-B1iGS130,JZS130,LS130..ROY,SALEX199809-199904

SHADOW GRAY,TRIM1#

main45130-30421-E1iGS130,JZS130,LS130..ROY,SALEX199809-199904

DK.ROSE,TRIM4#

main45130-30421-J0iGS130..SDX199809-199904

DK.BLUE,TRIM8#

main45130-30430-B0iJZS13#..4FC..(ROY,ROYG)199110-199204

SHADOW GRAY,TRIM1#

main45130-30430-E0iGS130,131,JZS13#,LS130,131..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC)199110-199204

main45130-30430-J0iGS13#,JZS13#,LS13#..4FC,5F199110-199204

main45130-30480-B0iJZS13#..4FC..(ROY,ROYG)199110-199512

main45130-30480-E0iGS130,JZS130,LS130..ROY,SALEX199512-199607

main45130-30480-J0iJZS130,LS130,131..SALEX; JZS130..4FC..ROY;GS130,131,JZS131,133,135..4FC..(ROY,ROYG,SALEX)..(HTWC,TWC)199308-199512

main45130-30490-B0iGS130,JZS130,LS130..ROY,SALEX199607-199704

SHADOW GRAY,TRIM1#

main45130-30490-E0iGS130,JZS130,LS130..ROY,SALEX199607-199704

DK.ROSE,TRIM4#

main45130-30490-J0iGS130..SDX199607-199704

45131BUTTON, HORN, NO.1

main45131-30180-J0×3iYS130..STD199308-199512

DARK BLUE,TRIM8#

main45131-33010-B0iJZS13#..4FC..(ROY,ROYG)199110-199512

SHADOW GRAY,TRIM1#

main45131-33010-E0iGS130,JZS130,LS130..4FC..(ROY,SALEX)199609-199704

DARK ROSE,TRIM4#

main45131-33010-J0iGS130,131,JZS13#,LS130,131..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX); GS130..5F..STD;GS136,LS136..4FC,5F199110-199308

45136PLATE, HORN BUTTON CONTACT

main45136-30200iGS130..STD;GS136,LS136199110-199112

45180COVER SUB-ASSY, STEERING WHEEL

main45180-30010-J0iGS130..STD;GS136,LS136199110-199112

DARK BLUE,TRIM8#

main45180-30060-B0iJZS133..4FC199209-199308

main45180-30060-E0iJZS133..4FC199209-199308

main45180-30060-J0iGS130,131,JZS130,131,LS130,131,YS130..DLX,DLXA,ROY,SALEX,SDX; GS136,LS136..DLX,SDX199110-199308

45201PNUT, STEERING WHEEL SET

main90179-12071iJZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG199110-199112

main90179-14034iGS130,JZS130,LS130..4FC; GS130..SDX; GS136199512

9015950016

main90159-50016

9351014008

main93510-14008

9351015012

main93510-15012

11 parts on this diagram · 6 diagrams in section
