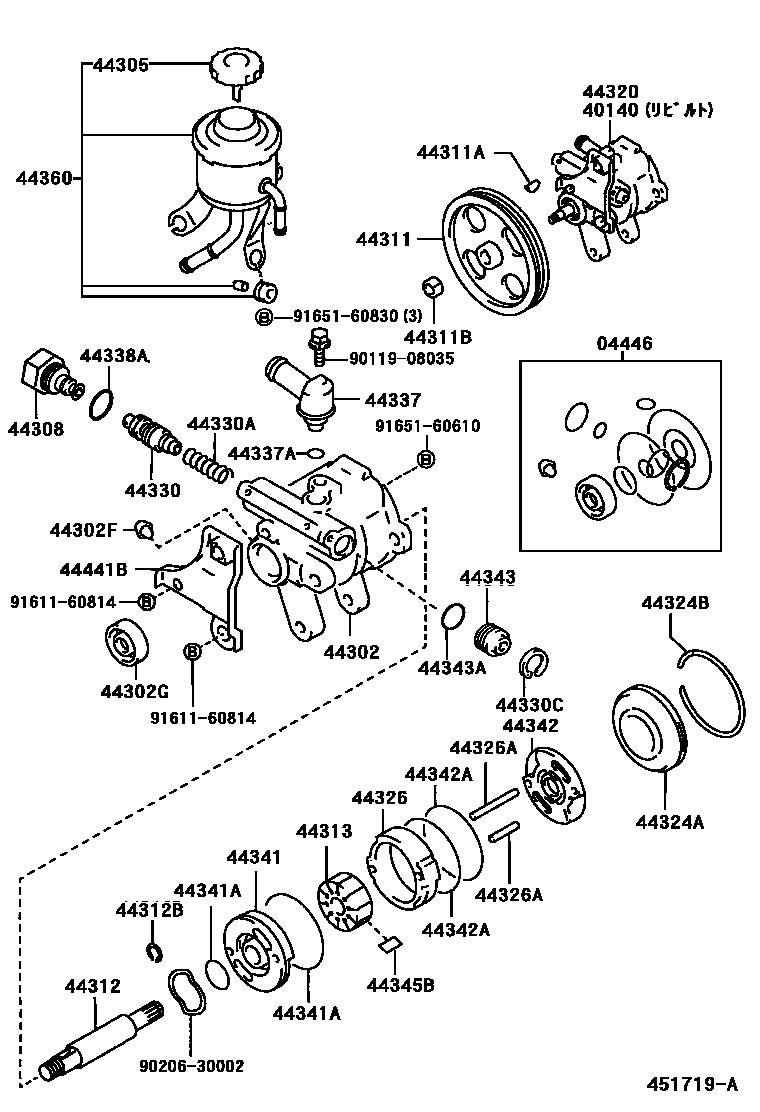

VANE PUMP & RESERVOIR (POWER STEERING)
40140PUMP ASSY,VANE REBUILT
sub44320-30340
sub44320-30360
sub44320-30380
sub44320-30450
sub44320-30490
sub44320-30500
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44308UNION SUB-ASSY, PRESSURE PORT
44311AKEY, VANE PUMP PULLEY
44311BNUT(FOR VANE PUMP PULLEY)
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44324AHOUSING, PUMP, REAR
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-32670
sub44330-32680
sub44330-32690
sub44330-32700
sub44330-32710
sub44330-32720
sub44330-32670
sub44330-32680
sub44330-32690
sub44330-32700
sub44330-32710
sub44330-32720
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330CRING, SNAP(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44341PLATE, VANE PUMP SIDE, FRONT
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
FOR REAR SIDE PLETE
FOR REAR SIDE PLATE
44343SEAT, FLOW CONTROL SPRING
44343ARING, O(FOR FLOW CONTROL SPRING SEAT)
44345BPLATE, VANE PUMP
44441BBRACKET, PUMP, FRONT
9011908035
main90119-08035
9020630002
main90206-30002
9161160814
main91611-60814
9165160610
main91651-60610
9165160830
main91651-60830
38 parts on this diagram · 6 diagrams in section
