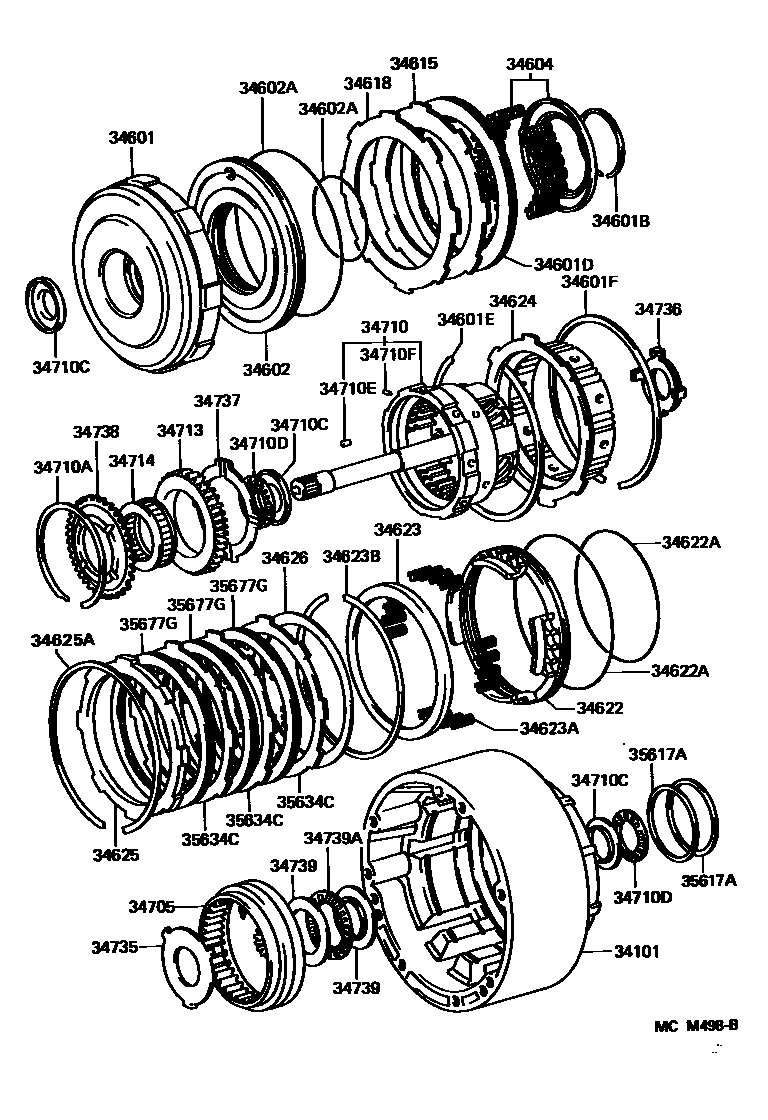

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)
34601DDISC, CLUTCH (FOR OVERDRIVE)
34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)
34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34615FLANGE, OVERDRIVE CLUTCH
34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
34623SEAT, OVERDRIVE BRAKE RETURN SPRING
34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34624HUB, OVERDRIVE BRAKE
34625FLANGE, OVERDRIVE BRAKE, NO.1
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34626PLATE, OVERDRIVE BRAKE CUSHION
34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING
34710GEAR ASSY, OVERDRIVE PLANETARY
34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
CTR
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
CTR
34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3
34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4
34739RACE, THRUST BEARING(FOR OVERDRIVE)
34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)
38 parts on this diagram · 2 diagrams in section
