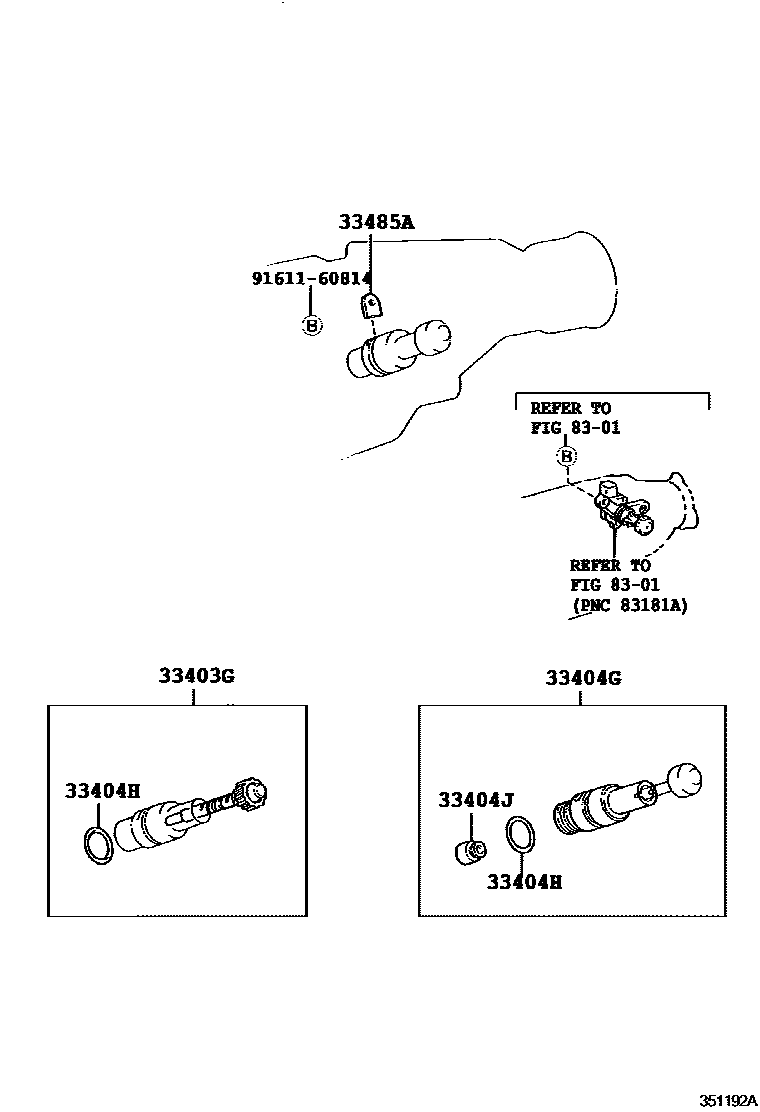

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1 0003 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69135iYS130..ATM199112-199512

main33482-29205iJZS133,135199110-199512

main33482-39315iGS130..ATM..TWLPG199112-199512

main33482-39375iJZS130,LS13#..ATM199110-199904

main33482-39385iJZS131199110-199512

main33482-39395iGS13#..ATM..HTWC199110-199904

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iGS130,YS130..ATM..(LPEFI,TWLPG)199112-199512

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iGS130,YS130..ATM..(LPEFI,TWLPG)199112-199512

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGS130,YS130..ATM..(LPEFI,TWLPG)199112-199512

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iGS130,YS130..ATM..(LPEFI,TWLPG)199112-199512

8301METER

→ Go to FIG 83-01

9161160814

main91611-60814

7 parts on this diagram · 3 diagrams in section
