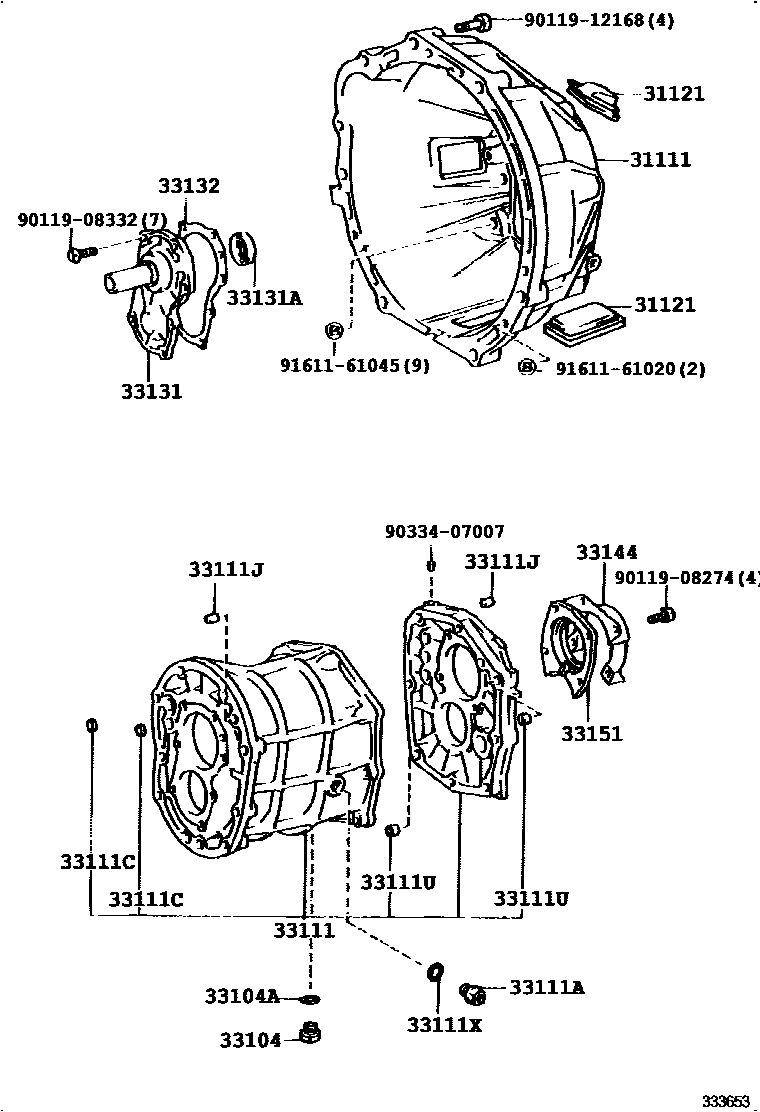

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

31111HOUSING, CLUTCH

main31111-20230iYS130..4H199112-199512

main31111-22114iLS136..5F199110-199409

main31111-22130iGS130,136..MTM199110

31121COVER, CLUTCH HOUSING, NO.1

main31121-20020iYS130..4H199112-199512

main31121-30040iYS130..4H199112-199309

main31121-35020iYS130..4H199309-199512

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGS130,136,LS136..5F199408

main90341-18057iGS130,136,YS130..4H199408-199512

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGS130,136,LS136,YS130..MTM199110

33111CASE, MANUAL TRANSMISSION

main33101-30063iGS130,136,YS130..4H199110-199512

main33101-30070iGS130,136,LS136..5F199110-199503

main33101-30071iGS130,136..5F199503

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGS130,136,LS136..5F199110-199408

main90341-18006iGS130,136,YS130..4H199110-199408

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×2iGS130,136,YS130..4H199110-199512

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iGS130,136,YS130..4H199110-199512

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iGS130,136,YS130..4H199110-199512

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGS130,136,LS136,YS130..MTM199110

33131RETAINER, BEARING, FRONT(MTM)

main33131-30062iGS130,136,YS130..4H199110-199512

main33131-30080iGS130,136,LS136..5F199110

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGS130,136,LS136,YS130..MTM199110

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-30061iYS130..4H199110-199512

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30022iGS130,136,YS130..4H199110-199512

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iGS130,136,LS136..5F199110

main33151-30040iGS130,136,YS130..4H199110-199512

9011908274

main90119-08274

9011908332

main90119-08332

9011912168

main90119-12168

9033407007

main90334-07007

9161161020

main91611-61020

9161161045

main91611-61045

21 parts on this diagram · 4 diagrams in section
