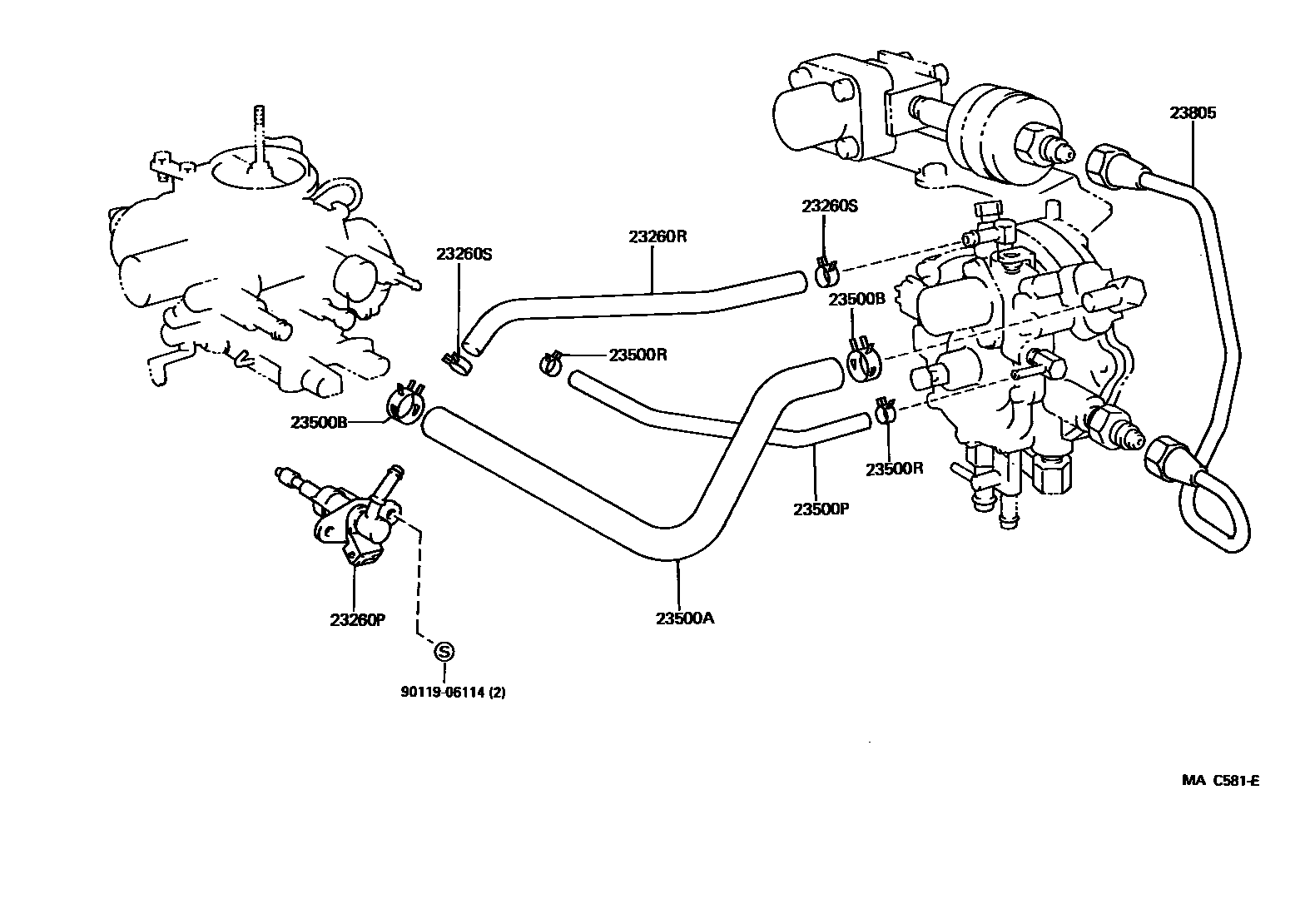

LPG(CARBURETOR) FUEL PIPE

0001 1 0002 1

23260PINJECTOR ASSY, LPG

main23260-73040i3YPE..YS130199112-199512

main23260-73050i1GGP..GS130199112-199512

23260RHOSE, LPG INJECTOR

main23274-70020i1GGP..GS130199112-199512

main23274-73040i3YPE..YS130199112-199512

23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)

main90467-13001i1GGP..GS130199112-199512

sub96135-51300

23500AHOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main23271-70030i1GGP..GS130199112-199308

main23271-70070i1GGP..GS130199308-199412

sub23271-70071

main23271-70071i1GGP..GS130199412-199512

main23271-73100i3YPE..YS130199112-199512

23500BCLAMP OR CLIP, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-20005i1GGP..GS130199112-199512

sub96134-41900

main90467-26006i1GGP..GS130199308-199512

sub96134-52600

23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main23282-70010i1GGP..GS130199112-199512

23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)

main90467-10088i1GGP..GS130199308-199512

sub96132-41000

main96132-30400i1GGP..GS130199112-199308

sub96132-51000

23805PIPE SUB-ASSY, LPG REGULATOR

main23805-73090i1GGP..GS130199112-199512

9011906114

main90119-06114

9 parts on this diagram · 2 diagrams in section
