Toyota CROWN — IGNITION COIL & SPARK PLUG / GLOW PLUG

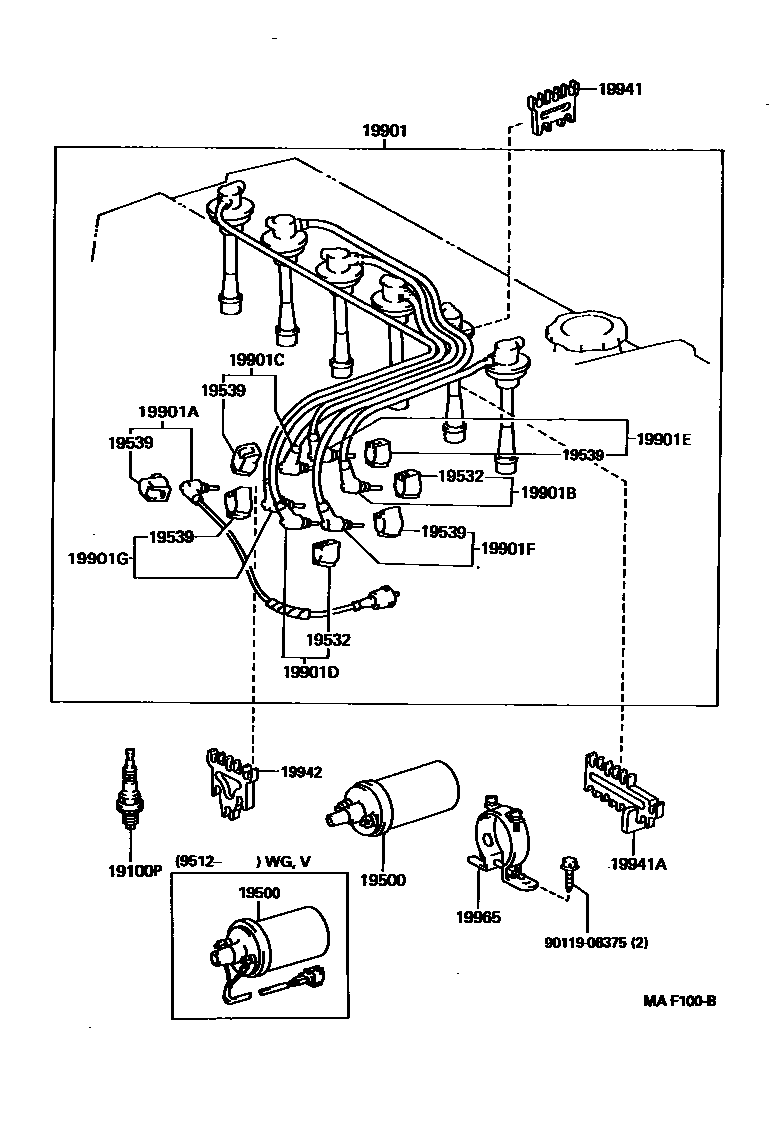

Parts diagram

19100PPLUG, SPARK

19500COIL ASSY, IGNITION

19532HOLDER, RESISTIVE CODE, NO.2

19539HOLDER, RESISTIVE CODE, NO.4

19901ACORD, COIL RESISTIVE

19901BCORD, SPARK PLUG RESISTIVE, NO.1

19901CCORD, SPARK PLUG RESISTIVE, NO.2

19901DCORD, SPARK PLUG RESISTIVE, NO.3

19901ECORD, SPARK PLUG RESISTIVE, NO.4

19901FCORD, SPARK PLUG RESISTIVE, NO.5

19901GCORD, SPARK PLUG RESISTIVE, NO.6

19941CLAMP, RESISTIVE CORD, NO.1

19941ACLAMP(FOR RESISTIVE CORD)

19942CLAMP, RESISTIVE CORD, NO.2

19965BAND, IGNITION COIL, NO.1

9011908375

17 parts on this diagram · 6 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CROWN

This section contains 35 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CROWN. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, HOLDER, RESISTIVE CORD, NO.1, HOLDER, RESISTIVE CODE, NO.2, HOLDER, RESISTIVE CORD, NO.3.
