V-BELT

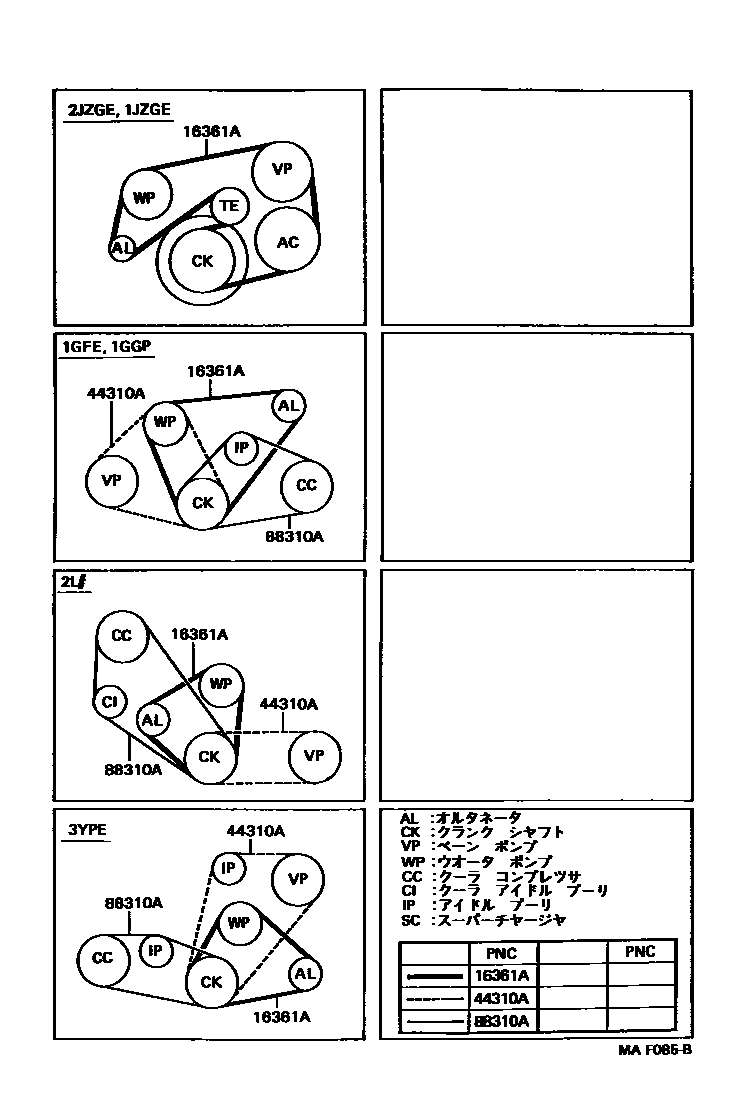

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i199110-199604

main90916-02211i199604

main90916-02309i199308-199509

main90916-02310i199509

main90916-02343i199112-199512

main90916-02471i199808

main99364-21080i199508-199511

main99364-70830i199112-199402

main99364-80830i199402-199512

main99364-81080i199309-199508

main99364-91080i199511-199808

44310ABELT, V(FOR VANE PUMP)

main99332-00830i199110

main99332-11055i199112-199512

main99363-00890i199110

main99363-00950i199112-199512

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354i199308

main99322-00875i199112-199512

main99322-01230i199110-199409

main99364-00860i199112-199308

3 parts on this diagram · 1 diagram in section
