ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

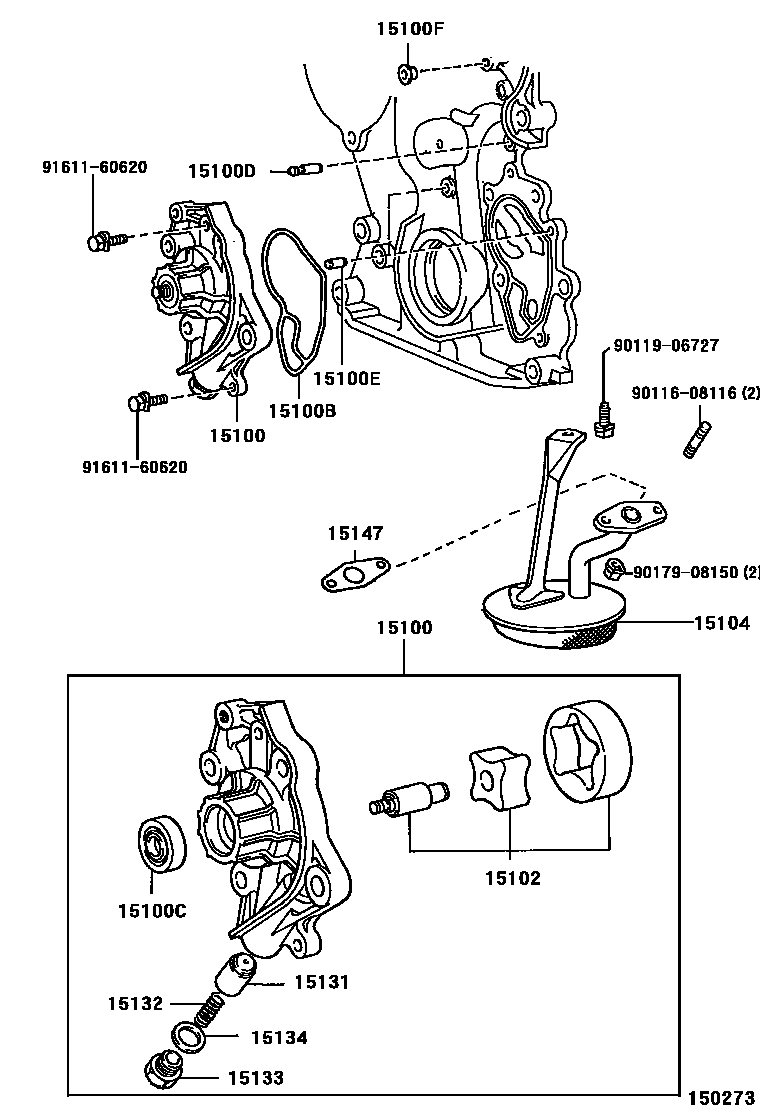

15100PUMP ASSY, OIL

main15100-46040i1JZGE,2JZGE..JZS13#199110-199304

main15100-46041i1JZGE,2JZGE..JZS13#199304-199602

main15100-46042i1JZGE..JZS130199602-199609

main15100-46090i1JZGE..JZS130199609-199904

main15100-70030i1GFE..GS13#199110

main15100-70040i1GGP..GS130199112-199512

main15100-71010i3YPE..YS130199112-199512

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS13#199110

main15188-70050i1GGP..GS130199112-199512

main96721-24022i1JZGE,2JZGE..JZS13#199110-199904

N0.1

main96721-24031i1JZGE,2JZGE..JZS13#199110-199904

15100CSEAL(FOR OIL PUMP)

main15165-70040i1GGP..GS130199112-199512

main90029-21005i1GFE..GS13#199110

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS13#199110

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010i1GGP..GS130199112-199308

15100FBUSH (FOR OIL PUMP)

main90029-38302i1G#..GS13#199110

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS13#199110

main15102-70020i1GGP..GS130199112-199512

main15102-71010i3YPE..YS130199112-199512

15104STRAINER SUB-ASSY, OIL

main15104-46020i1JZGE,2JZGE..JZS13#199110-199904

main15104-54033i2LT#,2L..LS13#199110

main15104-70060i1G#..GS13#199110

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZGE,2JZGE..JZS13#199304-199609

main15131-24010i3YPE..YS130199112-199512

main15131-46040i1JZGE,2JZGE..JZS13#199110-199304

main15131-46060i1JZGE..JZS130199609-199904

main15131-54010i2LT#,2L..LS13#199110

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3YPE..YS130199112-199512

main15132-46020i1JZGE,2JZGE..JZS13#199110-199609

main15132-46060i1JZGE..JZS130199609-199904

main15132-54010i2LT#,2L..LS13#199110

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZGE,2JZGE..JZS13#199110-199904

main15133-20010i1G#..GS13#199110

main15133-24010i3YPE..YS130199112-199512

main15133-54010i2LT#,2L..LS13#199110

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1JZGE,2JZGE..JZS13#199110-199508

main15134-67020i1JZGE,2JZGE..JZS13#199508-199904

main15134-70030i1G#..GS13#199110

15147GASKET, OIL STRAINER

main15147-46010i1JZGE,2JZGE..JZS13#199110-199904

main15147-70021i1G#..GS13#199110-199808

main15147-70030i1GFE..GS13#199808

9011608116

main90116-08116

9011906727

main90119-06727

9017908150

main90179-08150

9161160620

main91611-60620

17 parts on this diagram · 4 diagrams in section
