13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54030i199110

main13503-70061i199110-199806

main13503-70080i199806

main13503-88301i199112-199512

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-46020i199110-199904

main13505-46041i199110-199512

main13505-54020i199110-199111

main13505-54021i199111

main13505-70030i199110

main13505-70050i199112-199512

13505ASPRING, TENSION(FOR IDLER)

main90506-12054i199110-199406

main90506-13003i199406

main90506-18060i199110

13511CAMSHAFT

main13501-46020i199110-199609

main13501-46030i199110-199512

main13501-46070i199609-199809

main13501-46080i199809-199904

main13501-54050i199110-199409

main13501-54060i199110

main13501-70070i199110

main13501-70090i199112-199512

main13511-71901i199112-199308

main13511-73020i199308-199512

13512CAMSHAFT, NO.2

main13502-46010i199110-199609

main13502-46011i199609-199904

main13502-46020i199110-199512

main13502-70030i199110

main13502-70051i199112-199512

13522PPULLEY, PUMP DRIVE SHAFT

main13524-70040i199110

main13524-88301i199112-199512

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i199112-199512

13523PPULLEY, CAMSHAFT TIMING

main13050-46010i199609-199904

main13523-46030×2i199110-199609

main13523-54040i199110

main13523-70040i199110

main13523-88301×2i199112-199512

13529GEAR, CAMSHAFT SUB

main13529-70010i199110

13568BELT, TIMING

main13568-46010i199110-199205

main13568-46020i199110-199205

main13568-49025i199205-199904

main13568-49035i199205-199512

main13568-54070i199110-199205

main13568-59065i199205-199512

main13568-59066i199512

main13568-70080i199110-199205

main13568-70090i199112-199205

main13568-79015i199205-199512

main13568-79085i199205

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-70010i199110

13711VALVE, INTAKE

main13711-46021×12i199110-199508

main13711-46022×12i199508-199904

main13711-54020×4i199110

main13711-70040×12i199110

main13711-71010×4i199112-199512

main13711-88341×12i199112-199512

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053×8i199110-199601

main90913-02071×24i199110

main90913-02080×8i199112-199209

main90913-02081×12i199112-199308

INTAKE SIDE

main90913-02085×12i199112-199512

EXHAUST SIDE

main90913-02088×12i199212-199904

EXHAUST SIDE

main90913-02089×12i199110-199212

EXHAUST SIDE

main90913-02090×12i199110-199307

INTAKE SIDE

main90913-02098×8i199209-199512

main90913-02106×12i199308-199512

INTAKE SIDE

main90913-02110×8i199601-199607

main90913-02116×8i199607-199705

main90913-02117×8i199705

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28021×12i199311-199512

EXHAUST SIDE

main90501-29041×24i199607

main90501-31007×24i199110-199607

main90501-31008×12i199308-199311

EXHAUST SIDE

main90501-32022×12i199112-199308

INTAKE

main90501-33013×24i199609-199808

main90501-33020×48i199808-199904

main90501-46001×8i199309-199512

main90501-47005×8i199112-199309

main90504-40002×24i199110-199609

main90504-49001×8i199110

13715VALVE, EXHAUST

main13715-17010×4i199110-199409

main13715-46020×12i199110-199904

main13715-54040×4i199110

main13715-70040×12i199110

main13715-70060×12i199112-199311

main13715-70061×12i199311-199512

main13715-72020×4i199112-199512

13734SEAT, VALVE SPRING

main90201-16023×24i199110

main90201-18017×24i199110-199904

13741RETAINER, VALVE SPRING

main13741-16010×24i199110

main13741-46020×24i199110-199904

main13741-54020×8i199110

main13741-63010×8i199112-199512

main13741-88300×24i199112-199512

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i199110

main90913-03021×48i199110-199311

main90913-03025×48i199110-199904

main90913-03029×24i199311-199512

EXHAUST SIDE

13751LIFTER, VALVE

main13750-0W010×8i199308-199512

main13750-71010×8i199112-199308

main13751-16010×24i199110

main13751-54010×8i199110

main13751-70030×24i199112-199512

main13751-74020×24i199110-199904

13751DPAD, VALVE ADJUSTING

main13753-16020i199110

main13753-16040i199110

main13753-16060i199110

main13753-16080i199110

main13753-16100i199110

main13753-16120i199110

main13753-16140i199110

main13753-16160i199110

main13753-16180i199110

main13753-16200i199110

main13753-16220i199110

main13753-16240i199110

main13753-16260i199110

main13753-16280i199110

main13753-16300i199110

main13753-16320i199110

main13753-16340i199110

main13753-16660i199110

main13753-16670i199110

main13753-16680i199110

main13753-16690i199110

main13753-16700i199110

main13753-16710i199110

main13753-16720i199110

main13753-16730i199110

main13753-16740i199110

main13753-16750i199110

main13753-70320i199112-199512

main13753-70330i199112-199512

main13753-70340i199112-199512

main13753-70350i199112-199512

main13753-70360i199112-199512

main13753-70370i199112-199512

main13753-70380i199112-199512

main13753-70390i199112-199512

main13753-70400i199112-199512

main13753-70410i199112-199512

main13753-70420i199112-199512

main13753-70430i199112-199512

main13753-70440i199112-199512

main13753-70450i199112-199512

main13753-70460i199112-199512

main13753-70470i199112-199512

main13753-70480i199112-199512

main13753-70490i199112-199512

main13753-70500i199112-199512

main13753-70510i199112-199512

main13753-70520i199112-199512

main13753-70530i199112-199512

main13753-70540i199112-199512

main13753-70550i199112-199512

main13753-70560i199112-199512

main13753-70570i199112-199512

main13753-70580i199112-199512

main13753-70590i199112-199512

main13753-70600i199112-199512

main13753-70610i199112-199512

main13753-70620i199112-199512

main13753-70630i199112-199512

main13753-70640i199112-199512

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9010510212

main90105-10212

9011908936

main90119-08936

9011910741

main90119-10741

9017908071

main90179-08071

9020642001

main90206-42001

9052041004

main90520-41004

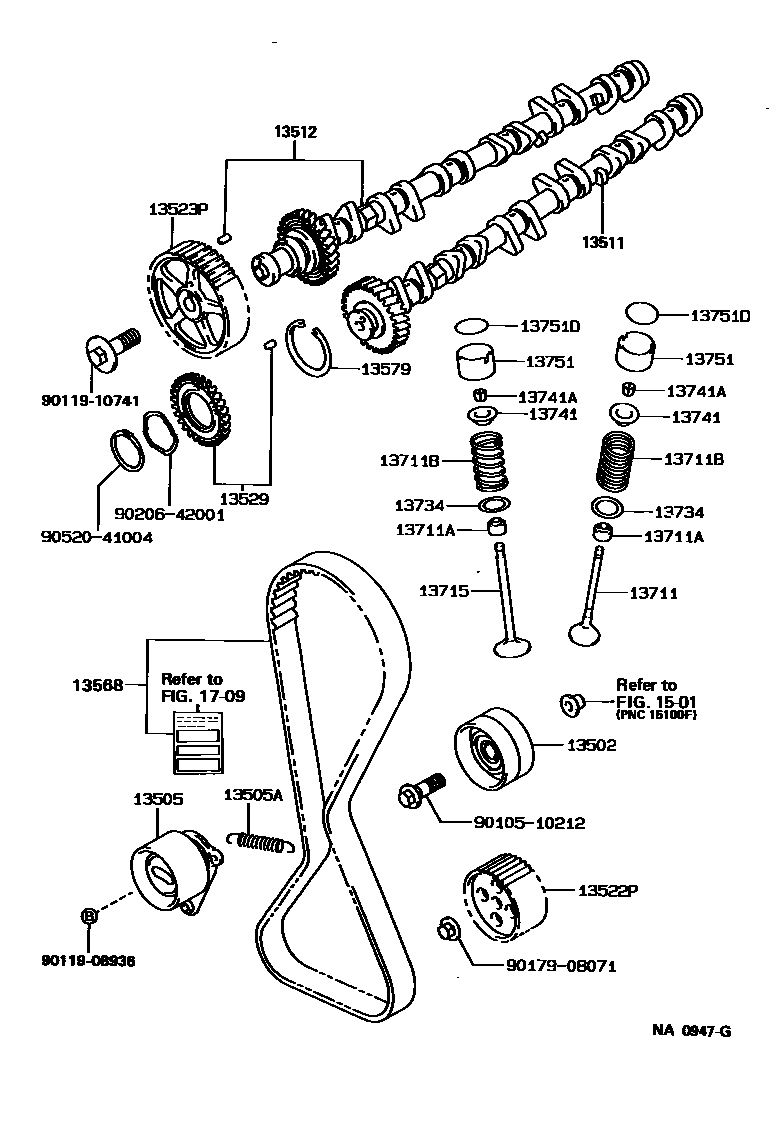

CAMSHAFT & VALVE
