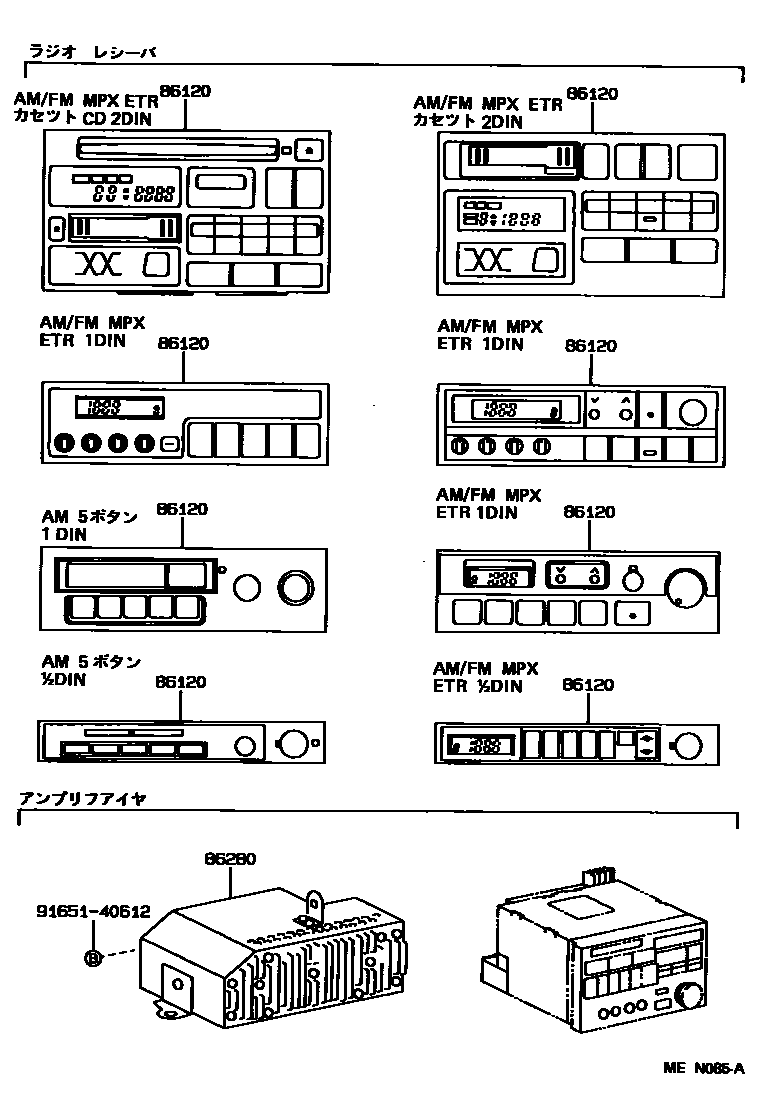

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1RADIO SETTING PARTS 0005 1REMOTE WIRE & SWITCH

86120RECEIVER ASSY, RADIO

main86120-16230iGS130,LS130,YS130..STD; GS136,LS136..STD198709-199110

main86120-16290iGS130,LS130,YS130..STD; YS130..DLX198709-199110

main86120-16350iGS136,LS136..DLX,SDX198709-199110

main86120-30740iMS137..4FC198709-198803

main86120-30741iMS137..4FC198803-198806

main86120-30742iMS137..4FC198806-198908

main86120-30750iGS130..4H..SDX..TWLPG198908-199110

main86120-30760iGS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL198709-198908

main86120-30770iMS137198709-198803

main86120-30771iMS137198803-198908

main86120-30780iGS131,MS135,137..SPC,TWC198709-198803

main86120-30781iGS131,MS135,137..ROY,ROYG198803-198806

main86120-30782iGS131,MS135,137..ROY,ROYG198806-198908

main86120-30830iGS130,131,MS135..ROY198709-198908

main86120-30850iGS131..4FC..ROY..SPC;JZS131,MS13#,UZS131..4FC..(ROY,ROYG)198908-199110

main86120-30860iGS131,UZS131..ROY,ROYG,SALEX;GS130,JZS13#,LS131,MS13#..(ROY,ROYG,SALEX)..(SPC,TDE,TWC)198908-199110

main86120-30870iMS137,UZS131198908-199110

main86120-30880iGS131..SED..ROY;JZS131,MS135..4HC;GS131..HT..4HC..SPC;JZS131,MS135..4FC..NOB198908-199110

main86120-30890iGS131,JZS131,MS135..HT..(4FC,5F)..ROY198908-199110

main86120-3A010iGS130,JZS130..ROY198908-199110

AM/FM MPX 1DIN

main86120-3A020iGS130,131,JZS131,LS130,131,MS135..SAL,SALEX,SDX,SPE,SSL198908-199110

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-30060iGS131,MS135,137..(4HC,5F)..(SPC,TWC); MS137..4FC198709-198804

main86280-30061iGS131,MS135,137..(4HC,5F)..(SPC,TWC); MS137..4FC198804-198908

main86280-30070iGS131,MS135..4FC..ROY; MS137..4FC198709-198804

main86280-30071iGS131,MS135..4FC..ROY; MS137..4FC198804-198908

main86280-30080iGS131,JZS131,MS13#,UZS131..4HC..(ROY,ROYG,SALEX);GS131,JZS131,LS131,MS13#,UZS131..SED..(4FC,5F)..(ROY,ROYG,SALEX)198908-199110

main86280-30090iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)..(ROY,ROYG,SALEX)198908-199110

main86280-91701iGS130,JZS130..ROY198908-199110

9165140612

main91651-40612

3 parts on this diagram · 5 diagrams in section
