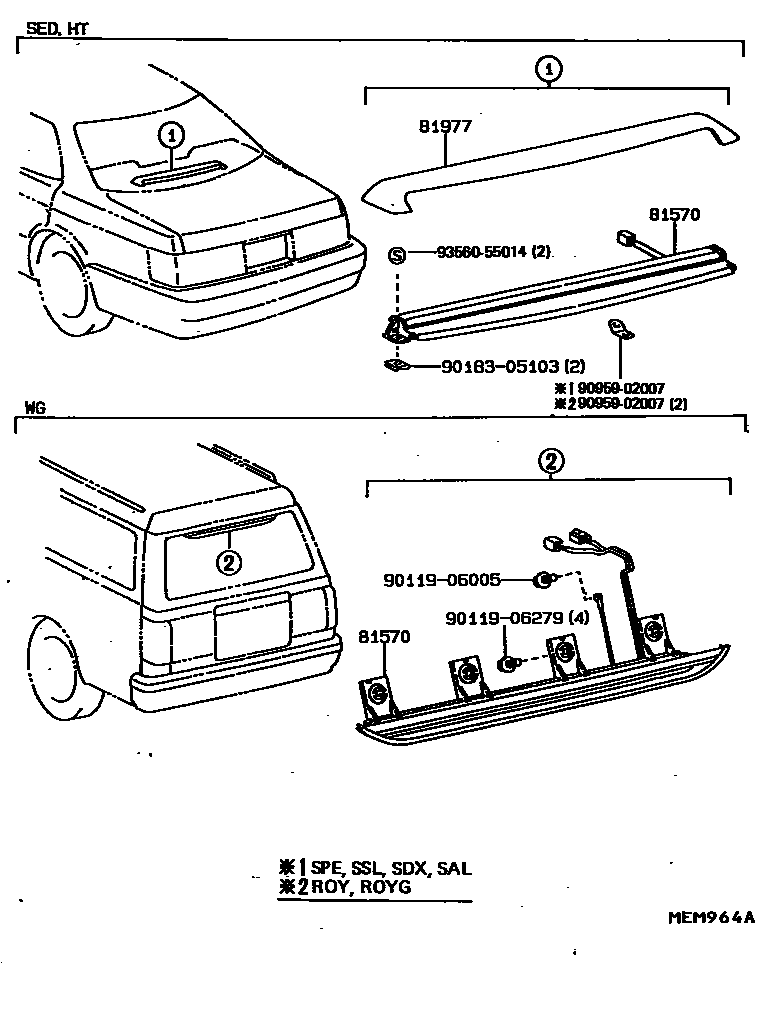

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-30010iGS130,131,LS130,131..SED..(SAL,SALEX,SDX)198908-199110

main81570-30020iGS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL)198908-199110

main81570-30030iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG)198908-199110

main81570-30040iGS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198908-199110

main81570-91701-04iGS130,JZS130,LS130..WG198908-199110

BLUE,TRIM8#

main81570-91701-06iGS130,JZS130,LS130..ROY,SALEX; GS130..WG..SDX198908-199110

SABLE,TRIM3#; SABLE,TRIM3#,4#

81977COVER, CENTER STOP LAMP

main81977-30010-02iGS130,131,LS130,131..SED..(SAL,SALEX,SDX)198908-199110

MAROON,TRIM3#

main81977-30010-04iGS130,131,LS130,131..SED..(SAL,SALEX,SDX)198908-199110

BLUE,TRIM8#

main81977-30010-06iGS131,LS131..SED..(HTWC,TDE)198908-199110

SABLE,TRIM4#

main81977-30020-02iGS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL)198908-199110

MAROON,TRIM3#

main81977-30020-04iGS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL)198908-199110

BLUE,TRIM8#

main81977-30020-06iGS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL)198908-199110

SABLE,TRIM4#

main81977-30030-02iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG); GS131,LS131..SED..SALEX198908-199110

main81977-30030-04iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG); GS131,LS131..SED..SALEX198908-199110

main81977-30030-06iGS131,JZS131,MS13#,UZS131..SED..(ROY,ROYG); GS131,LS131..SED..SALEX198908-199110

main81977-30040-02iGS131,JZS131,LS131,MS135..HT..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198908-199110

main81977-30040-04iGS131,JZS131,LS131,MS135..HT..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198908-199110

main81977-30040-06iGS131,JZS131,LS131,MS135..HT..SALEX; GS131,JZS131,MS13#,UZS131..HT..(ROY,ROYG)198908-199110

9011906005

main90119-06005

9011906279

main90119-06279

9018305103

main90183-05103

9095902007

main90959-02007

9356055014

main93560-55014

7 parts on this diagram · 1 diagram in section
