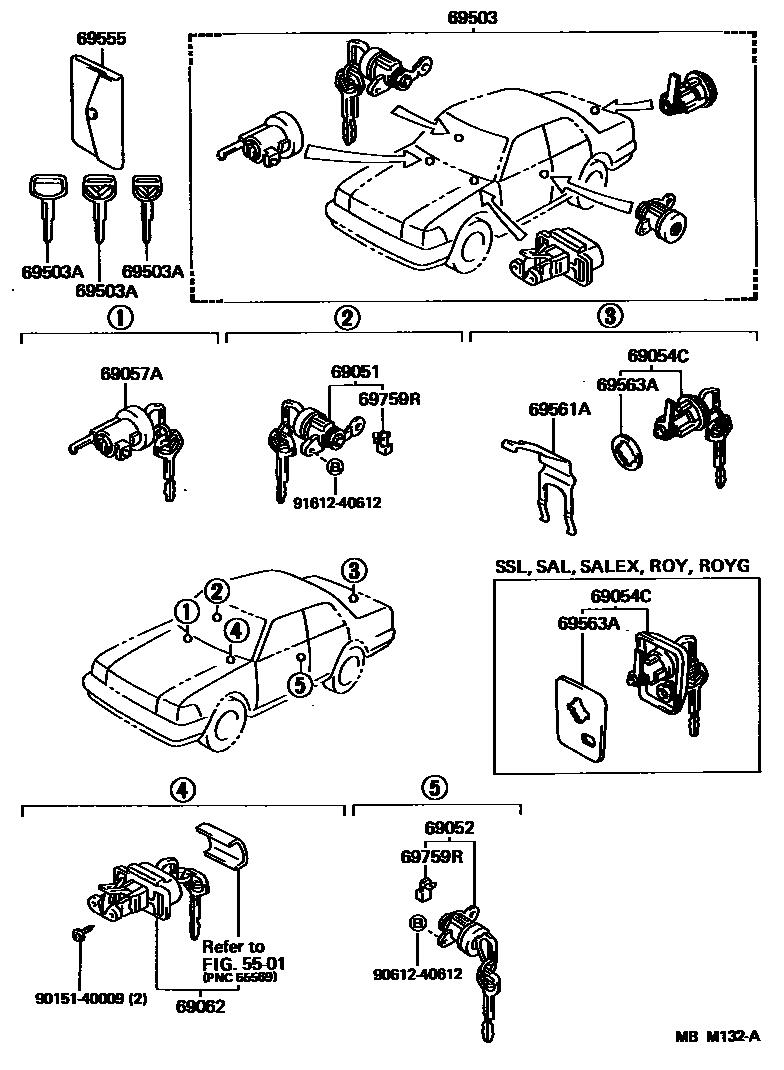

LOCK CYLINDER SET

0001 1 0002 1W/WIRELESS DOOR LOCK 0003 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30160iGS13#,LS13#,MS13#,YS130198709-198908

main69051-30161iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30140iGS13#,LS13#,MS13#,YS130198709-198908

main69052-30141iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-91704iGS130,136,LS13#..(V,WG)..(DSL,EFI,HTWC,TDE)198709-198908

main69055-91705iGS130..SPC198709-198908

main69055-91707iGS130,136,LS130,136..(V,WG)..(DSL,HTWC,TDE)198908-199110

main69055-91708iGS130,JZS130..ROY198908-199110

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30140iGS130,LS130..(HT,SED)..(DLX,SDX,SPE,STD)198709-198908

main69055-30141iGS130,131,LS130,131..(HT,SED)..(DLX,SDX,SPE,STD)..(DSL,HTWC,TD,TDE)198908-199110

main69055-30160iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)198709-198908

main69055-30161iGS131,JZS131,LS131,MS13#..ROY,ROYG,SAL,SALEX,SSL198908-199110

main69055-30180iMS130,YS130198709-198908

main69055-30181iGS130,YS130..LPEFI,TWLPG198908-199110

main69055-30190iMS130..SDX198809-198908

main69055-30191iGS130..SDX..TWLPG198908-199110

main69055-30200iUZS131198908-199110

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30070iGS13#,LS13#,MS13#,YS130198709-198908

main69057-30071iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30100-02iGS131,MS135,137..4HC;GS130..(SAL,SALEX,SDX)..HTWC;GS130,131,MS135,137..SED..(4FC,4H)..(DLX,ROY,ROYG)..(HTWC,SPC,TWC);GS130,136,LS13#,MS130,YS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE)198709-198908

MAROON,TRIM3#

main69056-30100-04iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,136,LS13#,MS130,YS130..SED,V,WG198709-198908

BLUE,TRIM8#

main69056-30100-06iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX)198709-198908

SABLE,TRIM4#

main69056-30101-02iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,136,JZS130,LS13#,YS130..(SED,V,WG)..(DLX,ROY,SALEX,SDX)198908-199110

MAROON,TRIM3#

main69056-30101-04iGS131,JZS131,MS13#,UZS131..4HC;GS130,136,JZS130,LS13#,YS130..SED,V,WG;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F)198908-199110

BLUE,TRIM8#

main69056-30101-06iGS131,JZS131,MS13#,UZS131..4HC;GS131,JZS131,MS13#,UZS131..SED..(4FC,5F);GS130,JZS130,LS130,131..(SED,WG)..(ROY,SALEX)198908-199110

SABLE,TRIM4#

main69056-30120-02iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198908

MAROON,TRIM3#

main69056-30120-04iGS131..HT..4FC..ROY..SPC;GS130,131,LS130,MS135,137..HT..(4FC,5F)..(EFI,HTWC,TD,TDE,TWC); GS131..SSL..SPC198709-198908

BLUE,TRIM3#,8#; BLUE,TRIM8#

main69056-30120-06iGS130,131,LS130,MS135,137..HT..(4FC,5F)198709-198908

SABLE,TRIM4#

main69056-30121-02iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

MAROON,TRIM3#

main69056-30121-04iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

BLUE,TRIM8#

main69056-30121-06iGS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F)198908-199110

SABLE,TRIM4#

69503CYLINDER SET, LOCK

main69005-30430iGS130,LS130..SED..(DLX,SDX,STD)198709-198908

main69005-30431iGS130,LS130..SED..(DSL,HTWC,TD,TDE)198908-199110

main69005-30440iMS130,YS130198709-198908

main69005-30441iGS130,YS130..LPEFI,TWLPG198908-199110

main69005-30450iGS131,MS135,137..4HC;GS131,MS135,137..SED..4FC;GS130,LS130..SED..(SAL,SALEX)198709-198908

main69005-30451iGS131,JZS131,MS13#..4HC;GS131,JZS131,LS131,MS13#..SED..(4FC,5F)198908-199110

main69005-30490iGS130,LS130..SPE198709-198908

main69005-30491iGS131,LS131..SPE198908-199110

main69005-30500iGS131,LS130,MS135,137..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198709-198908

main69005-30501iGS131,JZS131,LS131,MS13#..HT..(4FC,5F)..(ROY,ROYG,SALEX,SSL)198908-199110

main69005-30540iMS130..SDX198809-198908

main69005-30541iGS130..SDX..TWLPG198908-199110

main69005-30550iUZS131..4HC;UZS131..4FC..NOB198908-199110

main69005-30570iUZS131..4FC..WIB198908-199110

main69005-91714iGS136,LS136198709-198908

main69005-91715iGS130,LS130..WG..(SALEX,SDX)198709-198908

main69005-91716iGS130..SPC198709-198908

main69005-91718iGS136,LS136198908-199110

main69005-91719iGS130,LS130..WG..(HTWC,TDE)198908-199110

main69005-91720iGS130,JZS130..ROY198908-199110

69503AKEY, BLANK

main90999-00130iGS13#,LS13#,MS13#,YS130198709-198908

main90999-00137iGS130,131,LS130,MS13#,YS130198709-198908

main90999-00139iGS13#,LS13#,MS13#,YS130198709-198908

main90999-00163iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

main90999-00165iGS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130198908-199110

main90999-00170iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

69555COVER, KEY

main69555-20010iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-30060iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED198709-199110

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iGS130,131,LS130,131,MS130,YS130..(HT,SED)..(DLX,SDX,SPE,STD)198709-199110

main69563-30030iGS130,131,LS130,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)198709-198908

main69563-30031iGS130..SDX..TWLPG; GS131,JZS131,LS131,MS13#..ROY,ROYG,SAL,SALEX,SSL198908-199110

main69563-30050iUZS131198908-199110

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iGS13#,LS13#,MS13#,YS130198709-198908

main69759-30050iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198908-199110

GREEN

9015140009

main90151-40009

9061240612

main90612-40612

9161240612

main91612-40612

16 parts on this diagram · 3 diagrams in section
