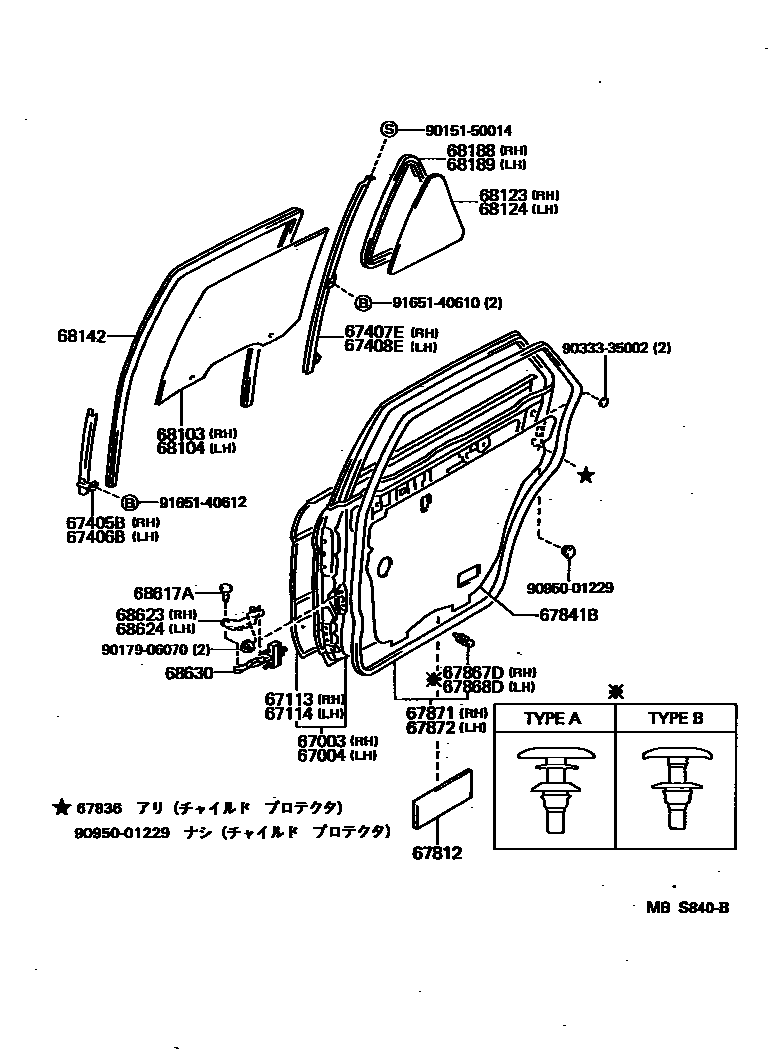

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30340iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main67003-30370iYS130..DLX198908-199110

main67003-30370iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

main67003-30390iGS130,131,LS130,131..HT..NOB198709-199110

main67003-30410iMS135,137..WIB198709-198908

sub67003-30411

sub68715-30010

sub68716-30010

sub90119-08078

main67003-30411iGS131,JZS131,MS13#,UZS131..WIB198908-199110

main67003-91708iGS130,136,LS130,136..V,WG198709-199110

main67003-91710iGS130,JZS130..ROY199008-199110

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30340iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main67004-30370iYS130..DLX198908-199110

main67004-30370iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

main67004-30390iGS130,131,LS130,131..HT..NOB198709-199110

main67004-30410iMS135,137..WIB198709-198908

sub67004-30411

sub68715-30010

sub68716-30010

sub90119-08078

main67004-30411iGS131,JZS131,MS13#,UZS131..WIB198908-199110

main67004-91708iGS130,136,LS130,136..V,WG198709-199110

main67004-91710iGS130,JZS130..ROY199008-199110

67113PANEL, REAR DOOR, OUTER RH

main67113-30200iGS130..WG..SDX;GS136,LS136,YS130;GS130,LS130..DLX,SALEX,STD198709-199110

sub67113-30290

main67113-30220iGS130,131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

sub67113-30300

main67113-30220iYS130..DLX198908-199110

sub67113-30300

main67113-30230iGS130,131,LS130,131..HT..NOB198709-199110

main67113-30906iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

67114PANEL, REAR DOOR, OUTER LH

main67114-30210iGS136,LS136,YS130;GS130,LS130..WG..(SALEX,SDX);GS130,LS130,MS130..DLX,ROY,STD198709-199110

sub67114-30300

main67114-30230iYS130..DLX198908-199110

sub67114-30310

main67114-30230iGS130,131,LS130,131,MS13#,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

sub67114-30310

main67114-30240iGS130,131,LS130,131..HT..NOB198709-199110

main67114-30906iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main67405-30090iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-30050iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main67406-30090iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30100iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main67407-91702iGS130,136,JZS130,LS130,136..V,WG198709-199110

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30090iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main67408-91702iGS130,136,JZS130,LS130,136..V,WG198709-199110

67812PAD, REAR DOOR SILENCER

main67811-30050iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iGS130,LS130..WG..SALEX;GS130,131,LS130..DLX,SDX,SPE,SSL198709-198809

main67836-14010iGS130,LS130..WG..SALEX;GS130,131,LS130,131..(DLX,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE)198809-199110

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-30240iGS130,MS130..SED..4H..SDX198709-199110

main67841-30240iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main67841-30250iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

main67841-30270iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main67842-30110iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main67842-30110iGS130,MS130..SED..4H..SDX198709-199110

main67842-30120iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)198709-199110

main67842-30130iGS131,JZS131,LS131,MS13#,UZS131..HT198908-199110

main67842-30130iGS130,131,LS130,MS135,137..HT198709-198908

LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-22020iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG199006-199110

TYPE A

sub67867-12150

main67868-30050iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

TYPE B

sub67867-12150

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-22020iGS131,LS131,MS13#,UZS131..HT198908-199007

TYPE A

sub67867-12150

main67868-22020iGS130,136,LS130,136..V,WG199006-199110

sub67867-12150

main67868-30050iGS130,131,LS130,MS135,137..HT198709-199110

TYPE B

sub67867-12150

main67868-30050iGS130,YS130..LPEFI,TWLPG;GS130,136,LS130,136..V,WG198908-199110

sub67867-12150

main67868-30050iGS130,YS130..LPEFI,TWLPG;GS130,136,LS130,136..V,WG198908-198910

sub67867-12150

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30130iGS130,131,LS130,MS13#,YS130..SED198709-198806

sub67871-30131

main67871-30131iGS130,131,LS130,131,MS13#,UZS131..SED..(DSL,HTWC,SPC,TD,TDE,TWC)198806-199001

sub67871-30132

main67871-30132iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(DSL,HTWC,SPC,TD,TDE,TWC)199001-199110

main67871-30140iGS130,131,LS130,MS135,137..HT198709-198806

sub67871-30141

main67871-30141iGS130,131,LS130,MS135,137..HT198806-199001

sub67871-30142

main67871-30142iGS131,JZS131,LS131,MS13#,UZS131..HT199001-199110

main67871-30160iGS130,MS130,YS130..LPEFI,LPG,TWLPG198806-199001

sub67871-30161

main67871-30161iLS130..4H..STD199001-199110

main67871-31010iGS130,136,JZS130,LS130,136..V,WG199003-199110

main67871-91706iGS130,136,LS13#..V,WG198709-198810

sub67871-91707

main67871-91707iGS130,136,LS130,136..V,WG198810-199003

sub67871-31010

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30130iGS130,131,LS130,MS13#,YS130..SED198709-198806

sub67872-30131

main67872-30131iGS130,131,LS130,131,MS13#,UZS131..SED..(DSL,HTWC,SPC,TD,TDE,TWC)198806-199001

sub67872-30132

main67872-30132iGS130,131,JZS131,LS130,131,MS13#,UZS131..SED..(DSL,HTWC,SPC,TD,TDE,TWC)199001-199110

main67872-30140iGS130,131,LS130,MS135,137..HT198709-198806

sub67872-30141

main67872-30141iGS131,LS131,MS13#,UZS131..HT198806-199001

sub67872-30142

main67872-30142iGS131,JZS131,LS131,MS13#,UZS131..HT199001-199110

main67872-30160iLS130..4H..STD198806-198811

sub67872-30170

main67872-30170iGS130,MS130,YS130..LPEFI,LPG,TWLPG198811-199001

sub67872-30171

main67872-30171iGS130,YS130..LPEFI,TWLPG199001-199110

main67872-31010iGS130,136,JZS130,LS130,136..V,WG199003-199110

main67872-91706iGS130,136,LS13#..V,WG198709-198810

sub67872-91707

main67872-91707iGS130,136,LS13#..V,WG198810-199003

sub67872-31010

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30270iGS130,LS130,YS130..STD198709-199110

sub68113-30560

main68113-30280iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)198709-199110

sub68113-30560

main68113-30290iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110

main68113-30310iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main68113-30320iUZS131..4FC..WIB199004

main68113-30320iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main68113-91706iGS136,LS136..STD198709-199110

sub68113-31010

main68113-91707iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

sub68113-31010

main68113-91708iGS130,JZS130,LS130..ROY,SALEX198809-199110

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30190iGS130,LS130,YS130..STD198709-199110

sub68114-30480

main68114-30200iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)198709-199110

sub68114-30480

main68114-30210iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110

main68114-30230iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main68114-30240iUZS131..4FC..WIB199004-199110

main68114-30240iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

main68114-91706iGS136,LS136..STD198709-199110

sub68114-31010

main68114-91707iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

sub68114-31010

main68114-91708iGS130,JZS130,LS130..ROY,SALEX198809-199110

68123GLASS, REAR DOOR WINDOW, RH

main68123-30210iGS130,LS130,YS130..STD198709-199110

sub68123-30220

main68123-30220iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)198709-199110

main68123-30230iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110

main68123-91708iGS136,LS136..STD198709-199110

sub68123-31010

main68123-91709iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

sub68123-31010

main68123-91710iGS130,JZS130,LS130..ROY,SALEX198809-199110

68124GLASS, REAR DOOR WINDOW, LH

main68124-30150iGS130,LS130,YS130..STD198709-199110

sub68124-30160

main68124-30160iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED..(DLX,ROY,ROYG,SAL,SALEX,SDX)198709-199110

main68124-30170iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX)198709-199110

main68124-91708iGS136,LS136..STD198709-199110

sub68124-31010

main68124-91709iGS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX)198709-199110

sub68124-31010

main68124-91710iGS130,JZS130,LS130..ROY,SALEX198809-199110

68142RUN, REAR DOOR GLASS

main68142-30120iGS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199003

sub68142-30121

main68142-30121iGS130,LS130..ROY,SALEX199003-199006

sub68142-30122

main68142-30121iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG199003-199010

sub68142-30122

main68142-30122iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG199010-199110

main68152-30020iGS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199003

sub68152-30021

main68152-30021iGS130,LS130..ROY,SALEX199003-199006

sub68152-30022

main68152-30021iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG199003-199010

sub68152-30022

main68152-30022iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG199010-199110

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30080iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main68188-91703iGS130,136,JZS130,LS130,136..V,WG198709-199110

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30060iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED198709-199110

main68189-91703iGS130,136,JZS130,LS130,136..V,WG198709-199110

68617APIN, REAR DOOR CHECK

main68617-30020iGS131..WIB;JZS131,MS135,137,UZS131198709-199110

main68617-30030iGS13#,JZS130,LS13#,MS130,YS130..NOB198709-199110

68623COVER, DOOR CHECK, RH

main68623-30010iJZS131,MS135,137,UZS131..NOB198709-199110

main68623-30020iMS135,137..WIB198709-198908

sub68623-30021

main68623-30021iGS131,JZS131,MS13#,UZS131..WIB198908-199110

68624COVER, DOOR CHECK, LH

main68624-30010iJZS131,MS135,137,UZS131..NOB198709-199110

main68624-30020iMS135,137..WIB198709-198908

sub68624-30021

main68624-30021iGS131,JZS131,MS13#,UZS131..WIB198908-199110

68630CHECK ASSY, REAR DOOR

main68630-30070iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198709-199110

main68630-30080iGS130,131,LS130..HT198709-198908

main68630-30081iGS131,LS131..HT..NOB198908-199110

main68630-30090iMS135,137..WIB198709-198908

main68630-30091iGS131,JZS131,MS13#,UZS131..WIB198908-199110

9015150014

main90151-50014

9017906070

main90179-06070

9033335002

main90333-35002

9095001229

main90950-01229

9165140610

main91651-40610

9165140612

main91651-40612

32 parts on this diagram · 8 diagrams in section
