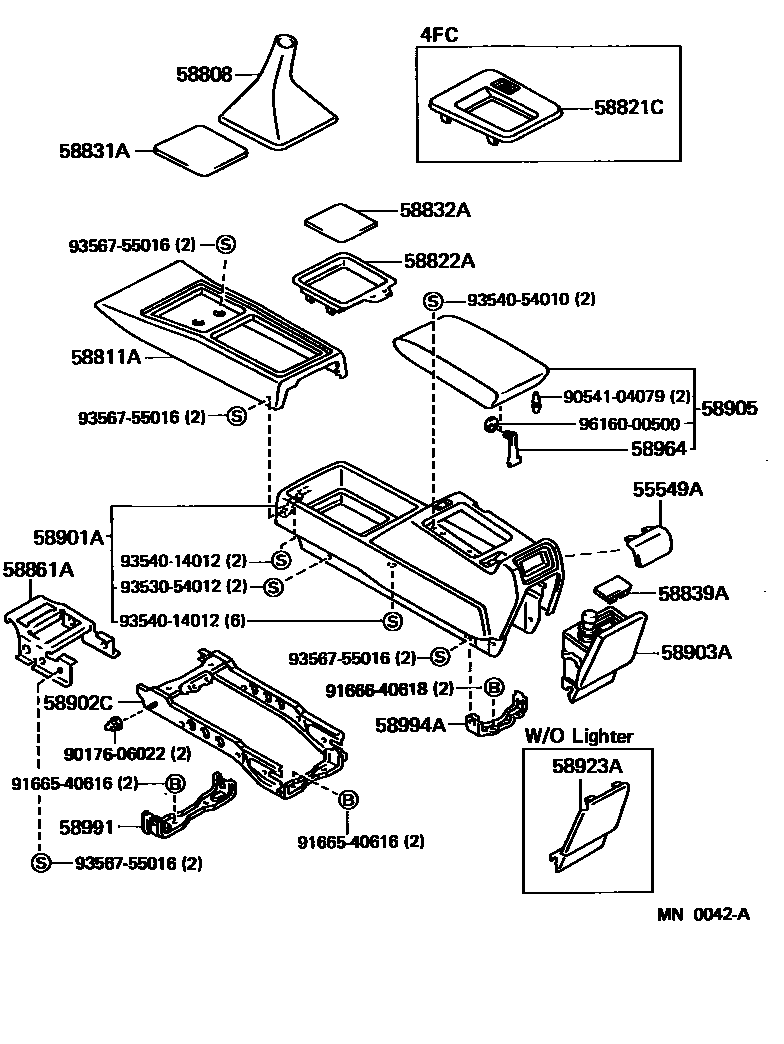

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-30070-02iGS131..4FC..TWC;GS131..SSL..SPC198709-198908

MAROON,TRIM3#

main55549-30070-04iGS131..4FC..TWC;GS131..SSL..SPC198709-198908

BLUE,TRIM8#

main55549-30070-06iGS131..4FC..TWC;GS131..SSL..SPC198709-198908

SABLE,TRIM4#

main55549-30080-02iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

MAROON,TRIM3#

sub55549-30080

main55549-30080-04iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

BLUE,TRIM8#

sub55549-30080

main55549-30080-06iGS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE)198709-199110

SABLE,TRIM4#

sub55549-30080

main55549-30090-02iLS136..DLX;GS13#,LS130,131..5F..(DLX,ROY,SAL,SALEX,SDX,SSL)198709-199110

MAROON,TRIM3#

sub55549-30090

main55549-30090-04iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

BLUE,TRIM8#

sub55549-30090

main55549-30090-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

sub55549-30090

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30070-02iGS130..5F..(SAL,SALEX,SDX,SPE)..HTWC;GS130..5F..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS13#..5F..(DLX,ROY,SALEX,SDX,SPE,SSL)198709-199110

MAROON,TRIM3#

main58808-30070-04iGS13#,LS13#,YS130..5F198709-199110

BLUE,TRIM8#

main58808-30070-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-30040-02iUZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

MAROON,TRIM3#

sub58802-30040

main58802-30040-04iUZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

BLUE,TRIM8#

sub58802-30040

main58802-30040-06iUZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

SABLE,TRIM4#

sub58802-30040

main58811-30220-02iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

MAROON,TRIM3#

main58811-30220-04iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

BLUE,TRIM8#

main58811-30220-06iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

SABLE,TRIM4#

main58811-30240-02iGS131..5F..TWC;GS130..4FC..DLX..HTWC;GS131..(4FC,5F)..(EFI,HTWC);GS130..(4FC,5F)..(SAL,SALEX,SDX,SPE)..HTWC;GS130,136,LS13#,MS130..(4FC,5F)..(DLX,SAL,SALEX,SDX,SPE,198709-199110

MAROON,TRIM3#

sub58811-30240

main58811-30240-04iGS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)198709-199110

BLUE,TRIM8#

sub58811-30240

main58811-30240-06iGS131..5F..TWC;GS130,131,LS130,131..(4FC,5F)..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE)198709-199110

SABLE,TRIM4#

sub58811-30240

58821CPANEL, CONSOLE, UPPER

main58821-30180-02iGS130,131,LS13#,MS130..4FC..(DSL,EFI,LPG,TDE)198709-198808

MAROON,TRIM3#

main58821-30180-04iGS130,131,LS13#,MS130..4FC..(DSL,EFI,LPG,TDE)198709-198808

BLUE,TRIM8#

main58821-30180-06iGS130,131,LS130..4FC..(SAL,SALEX,SPE,SSL)..(EFI,TDE)198709-198808

SABLE,TRIM4#

main58821-30210iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198808

main58821-30220iGS130,131,MS135,137..4FC..(SPC,TWC)198809-198908

main58821-30230-02iGS130,131,LS13#,MS130..4FC..(DSL,EFI,HTWC,LPG,TDE,TWLPG)198809-199110

MAROON,TRIM3#

main58821-30230-04iGS130,131,LS13#,MS130..4FC..(DSL,EFI,HTWC,LPG,TDE,TWLPG)198809-199110

BLUE,TRIM8#

main58821-30230-06iGS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE)198809-199110

SABLE,TRIM4#

main58821-30250-02iMS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC)198908-199110

MAROON,TRIM3#

main58821-30250-04iMS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC)198908-199110

BLUE,TRIM8#

main58821-30250-06iMS135..SALEX;MS13#,UZS131..4FC..NOB;GS130,131,JZS13#..4FC..(SPC,TWC)198908-199110

SABLE,TRIM4#

58822APANEL, CONSOLE, UPPER REAR

main58822-30160-02iLS136..DLX;GS13#,LS130,131..5F..(DLX,ROY,SAL,SALEX,SDX,SSL)198709-199110

MAROON,TRIM3#

sub58822-30160

main58822-30160-04iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

BLUE,TRIM8#

sub58822-30160

main58822-30160-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

sub58822-30160

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30050iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

main58831-30060-02iGS131..5F..TWC;GS130,131,LS130,131,MS130..(4FC,5F)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWLPG)198709-199110

MAROON,TRIM3#

main58831-30060-04iGS131..5F..TWC;GS130,131,LS130,131,MS130..(4FC,5F)..(SAL,SALEX,SDX,SPE,SSL)..(DSL,EFI,HTWC,LPG,TD,TDE,TWLPG)198709-199110

BLUE,TRIM8#

main58831-30060-06iGS131..5F..TWC;GS130,131,LS130,131..(4FC,5F)..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TD,TDE)198709-199110

SABLE,TRIM4#

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30070-02iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SDX,SPE,SSL)198709-199110

MAROON,TRIM3#

main58832-30070-04iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SDX,SPE,SSL)198709-199110

BLUE,TRIM8#

main58832-30070-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

main58832-30080iMS137..4FC198709-198908

main58832-30090iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

58839ACOVER, CONSOLE BOX HOLE

main58839-30030iGS136,LS136,YS130..4FC,5F;GS130,LS130,MS130..(4FC,5F)..(DLX,STD)198709-198910

sub58839-30031

main58839-30031iGS130,LS130..(4FC,5F)..(DLX,STD);GS136,JZS131,LS136,MS135,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD)198910-199110

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-30040iGS130,LS130,YS130..5F..STD198709-199110

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-30070-02iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

MAROON,TRIM3#

sub58901-30071

main58901-30070-04iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

BLUE,TRIM8#

sub58901-30071

main58901-30070-06iGS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE)198709-199110

SABLE,TRIM4#

sub58901-30071

main58901-30080-02iLS136..DLX;GS13#,LS130,131..5F..(DLX,ROY,SAL,SALEX,SDX,SSL)198709-199110

MAROON,TRIM3#

sub58901-30081

main58901-30080-04iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

BLUE,TRIM8#

sub58901-30081

main58901-30080-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

sub58901-30081

main58901-30090-02iMS137..4FC198908-199110

main58901-30090-02iUZS131..4FC198908-199110

MAROON,TRIM3#

main58901-30090-02iMS137..4FC198908-199110

main58901-30090-04iUZS131..4FC198908-199110

main58901-30090-04iUZS131..4FC198908-199110

BLUE,TRIM8#

main58901-30090-04iUZS131..4FC198908-199110

main58901-30090-06iUZS131..4FC198908-199110

SABLE,TRIM4#

main58901-30090-06iUZS131..4FC198908-199110

main58901-30090-06iUZS131..4FC198908-199110

main58901-30100-01iMS137..4FC198709-198908

sub58901-30100

main58901-30100-01iMS137..4FC198709-198908

sub58901-30100

main58901-30110iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

main58901-30120-02iGS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

MAROON,TRIM3#

main58901-30120-04iGS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

BLUE,TRIM8#

main58901-30120-06iGS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

SABLE,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-30030iGS131..4FC..ROY..SPC;GS131..(4FC,5F)..(EFI,HTWC,TWC);GS130,136,LS13#,MS13#,YS130..4FC,5F198709-198908

main58902-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F198908-199110

main58902-30060iGS13#,JZS13#,LS13#,MS13#,UZS131..(4FC,5F)..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)199010-199110

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-30090-02iGS131..5F..TWC;GS13#,LS13#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX)198709-199106

MAROON,TRIM3#

sub58903-30091

main58903-30090-04iGS131,LS130..HT..(4FC,5F)..SALEX198709-199106

BLUE,TRIM8#

sub58903-30091

main58903-30090-06iGS131,LS130..HT..(4FC,5F)..SALEX198709-199106

SABLE,TRIM4#

sub58903-30091

main58903-30091-D0iGS131..5F..TWC;GS13#,LS13#..(SED,V,WG)..(4FC,5F)..(DLX,SAL,SALEX,SDX)199106-199110

MAROON,TRIM3#

sub58903-30091

main58903-30091-E1iGS131,LS131..HT..(4FC,5F)..SALEX199106-199110

SABLE,TRIM4#

sub58903-30091

main58903-30091-J1iGS131,LS131..HT..(4FC,5F)..SALEX199106-199110

BLUE,TRIM8#

sub58903-30091

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30120-02iMS137..4FC..WIB198709-198809

main58905-30120-02iMS137..4FC..WIB198809-198908

main58905-30120-02iMS137..4FC..NOB198709-198908

main58905-30120-04iMS137..4FC..WIB198709-198809

main58905-30120-04iMS137..4FC..WIB198809-198908

main58905-30120-04iMS137..4FC..NOB198709-198908

main58905-30120-06iMS137..4FC..NOB198809-198908

main58905-30120-06iMS137..4FC..WIB198809-198908

main58905-30130-02iGS130,131,MS135,137..4FC..(ROY,ROYG)198709-198908

MAROON,TRIM3#

main58905-30130-04iGS130,131,MS135,137..4FC..(ROY,ROYG)198709-198908

BLUE,TRIM8#

main58905-30130-06iGS130,131,MS135,137..4FC..(ROY,ROYG)198709-198908

SABLE,TRIM4#

main58905-30140-02iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

MAROON,TRIM3#

main58905-30140-04iGS130,131,LS130,131,MS130..4FC..(EFI,HTWC,LPG,TDE,TWLPG)198709-199110

BLUE,TRIM8#

main58905-30140-06iGS130,131,LS130,131..4FC..(SAL,SALEX,SPE,SSL)..(EFI,HTWC,TDE)198709-199110

SABLE,TRIM4#

main58905-30150-02iLS136..DLX;GS13#,LS130,131..5F..(DLX,ROY,SAL,SALEX,SDX,SSL)198709-199110

MAROON,TRIM3#

main58905-30150-04iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

BLUE,TRIM8#

main58905-30150-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198709-199110

SABLE,TRIM4#

main58905-30160-02iGS131..SSL..SPC198805-198908

MAROON,TRIM3#

sub58905-30170

main58905-30160-04iGS131..SSL..SPC198805-198908

BLUE,TRIM8#

sub58905-30170

main58905-30160-06iGS131..SSL..SPC198805-198908

SABLE,TRIM4#

sub58905-30170

main58905-30170-04iGS131..4FC..SSL198902-198908

main58905-30170-04iGS131..4FC..SSL198902-198908

main58905-30170-04iGS131..SSL..SPC198805-198902

main58905-30170-06iGS131..4FC..SSL198902-198908

main58905-30170-06iGS131..SSL..SPC198902-198908

main58905-30170-06iGS131..SSL..SPC198805-198902

main58905-30180-02iMS137..4FC..WIB198908-199110

MAROON,TRIM3#

main58905-30180-02iUZS131..4FC198908-199110

main58905-30180-02iUZS131..4FC198908-199110

main58905-30180-04iMS137..4FC..WIB198908-199110

main58905-30180-04iUZS131..4FC198908-199110

BLUE,TRIM8#

main58905-30180-04iUZS131..4FC198908-199110

main58905-30180-06iMS137..4FC..WIB198908-199110

main58905-30180-06iUZS131..4FC198908-199110

SABLE,TRIM4#

main58905-30180-06iUZS131..4FC198908-199110

main58905-30190-02iJZS131,MS135..SALEX198908-199110

main58905-30190-02iGS131,JZS131..SSL..(SPC,TWC)198908-199110

MAROON,TRIM3#

main58905-30190-04iJZS131,MS135..SALEX198908-199110

BLUE,TRIM8#

main58905-30190-04iGS131,JZS131..SSL..(SPC,TWC)198908-199110

main58905-30190-06iGS131,JZS131..SSL..(SPC,TWC)198908-199110

SABLE,TRIM4#

main58905-30190-06iGS131,JZS131..SSL..(SPC,TWC)198908-199110

main58905-30200-06iMS137,UZS131..4FC..WIB198908-199110

main58905-30210-02iGS130,131,JZS13#,MS13#..4FC..(ROY,ROYG)198908-199110

MAROON,TRIM3#

main58905-30210-04iGS130,131,JZS13#,MS13#..4FC..(ROY,ROYG)198908-199110

BLUE,TRIM8#

main58905-30210-06iJZS131..SSL199105-199110

main58905-30210-06iGS130,131,JZS13#,MS13#..4FC..(ROY,ROYG)198908-199110

SABLE,TRIM4#

main58905-30220-02iJZS131,MS135..SALEX198908-199110

MAROON,TRIM3#

main58905-30220-04iJZS131,MS135..SALEX198908-199110

BLUE,TRIM8#

main58905-30220-06iJZS131,MS135..SALEX198908-199110

SABLE,TRIM4#

main58905-30230-06iUZS131..WIB199004-199005

58923APANEL, CONSOLE REAR END

main58923-30070-02iGS130,131,LS130,131..HT..(4FC,5F)..(EFI,HTWC,TD,TDE)198709-199110

MAROON,TRIM3#

sub58923-30070

main58923-30070-04iGS130,131,LS130,131..HT..(4FC,5F)..(EFI,HTWC,TD,TDE)198709-199110

BLUE,TRIM8#

sub58923-30070

main58923-30070-06iGS130,131,LS130,131..HT..(4FC,5F)..(EFI,HTWC,TD,TDE)198709-199110

SABLE,TRIM4#

sub58923-30070

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30050iGS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)198709-199110

main58964-30060iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

main58964-30070iUZS131..4FC;GS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30080iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..4FC,5F198709-199110

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-30020iGS131..5F..TWC;GS13#,LS13#,MS130,YS130..(4FC,5F)..(DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWLPG)198709-199110

main58994-30030iMS137..4FC198709-198908

main58994-30030iMS135..4FC;GS131..4FC..ROY..SPC198709-198908

main58994-30040iGS130,131,MS135,137..4FC..(SPC,TWC)198709-198908

main58994-30050iGS131..4FC..ROY..SPC;JZS131,MS135..4FC..ROY198908-199110

main58994-30050iUZS131..4FC198908-199110

main58994-30060iGS130,131,JZS13#,MS13#..4FC..(SPC,TWC)198908-199110

9017606022

main90176-06022

9054104079

main90541-04079

9166540616

main91665-40616

9166640618

main91666-40618

9353054012

main93530-54012

9354014012

main93540-14012

9354054010

main93540-54010

9356755016

main93567-55016

9616000500

main96160-00500

26 parts on this diagram · 4 diagrams in section
