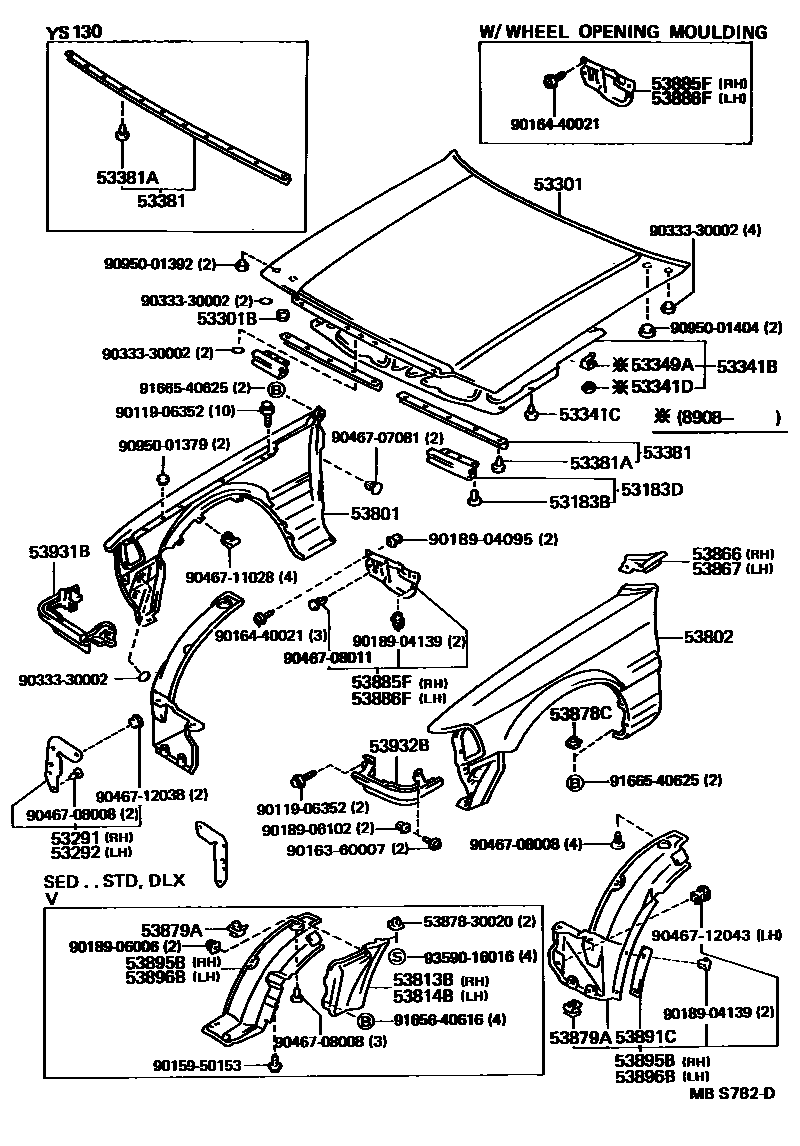

HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08044×6iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-30020×2iGS130,131,JZS131,LS130,131,MS135,137,UZS131..HT198709-199110

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-30040iGS130..DLX..TWLPG;GS130..4H..SDX..TWLPG;GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,EFI,HTWC,LPEFI,LPG,SPC,TD,TDE,TWC198709-199110

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-30050iGS130..DLX..TWLPG;GS130..4H..SDX..TWLPG;GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DSL,HTWC,LPEFI,SPC,TD,TDE,TWC198908-199110

main53292-30060iGS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198908

53301HOOD SUB-ASSY

main53301-30180iGS13#,LS13#,MS13#,YS130..SED,V,WG198709-198908

main53301-30181iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG198908-199110

main53301-30200iGS130,131,LS130..HT198709-198908

main53301-30210iGS131,LS131..HT..NOB198908-199110

main53301-30220iMS135,137..WIB198709-198908

main53301-30240iGS131,JZS131,MS13#,UZS131..WIB198908-199110

53301BCUSHION, HOOD BUMPER

main90541-15004×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53341BINSULATOR, HOOD

main53341-30100iGS136..SDX198709-198908

main53341-30101iGS136..SDX198908-199108

main53341-30102iGS136..SDX199108-199110

main53341-30110iLS13#;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198908

main53341-30111iGS131,JZS13#,LS13#,MS13#,UZS131;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC)198908-199108

main53341-30112iGS131,JZS13#,LS13#,MS13#,UZS131;GS130..(DLX,ROY,SALEX,SDX)..(HTWC,SPC)199108-199110

main53341-30120iMS130,YS130..DLX,SDX198709-198908

main53341-30121iGS130,YS130..(DLX,SDX)..(LPEFI,TWLPG)198908-199108

main53341-30122iGS130,YS130..(DLX,SDX)..(LPEFI,TWLPG)199108-199110

main53341-30130iLS130..4H..STD198709-198908

main53341-30131iLS130..4H..STD198908-199108

main53341-30132iLS130..4H..STD199108-199110

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008-01×13iGS130,131,LS130,MS135,137..ROY,ROYG,SAL,SALEX,SPE,SSL; GS136..SDX;GS130..(4HC,5F)..SDX..HTWC;GS130..(4FC,4H)..(DLX,SDX)..HTWC;GS130,LS13#,MS130,YS130..(DLX,SDX)..(DSL,EFI,LPG,TD,TDE); LS13#..STD;GS130..(4HC,5F)..DLX..HTWC198709-198908

BLACK,TRIM3#,4#,8#; BLACK,TRIM3#,8#; BLACK,TRIM8#

53341DCLIP(FOR HOOD INSULATER)

main90467-07091×2iLS130,136;GS136..SDX;GS130,131,JZS13#,LS131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-199110

53349ARETAINER, HOOD INSULATOR

main53349-30010×2iLS130,136;GS136..SDX;GS130,131,JZS13#,LS131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198908-199110

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30070iGS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

main53381-30080iYS130..LPEFI;GS130,MS130..LPG,TWLPG198709-199110

main53382-30080iGS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC198709-199110

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×10iGS13#,JZS13#,LS13#,MS135,137,UZS131,YS130..DSL,EFI,HTWC,LPG,SPC,TD,TDE,TWC; YS130..LPEFI;GS130,MS130..LPG,TWLPG198709-199110

53801FENDER SUB-ASSY, FRONT RH

main53801-3A580iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX); GS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

main53801-3A590iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX); GS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

main53801-3A610iGS130,131,LS130,MS130..SAL,SDX198709-199110

main53801-3A620iGS130,131,LS130..(SAL,SDX)..(DSL,EFI,HTWC,TD,TDE)198709-199110

main53801-3A630iGS136..SDX;GS130,LS130,MS130,YS130..DLX198709-199110

main53801-3A650iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG); GS136,LS136..DLX,STD;GS130,LS130,YS130..STD198709-199110

main53801-3A760iGS131..HT..NOB;LS130..HT..(SALEX,SSL);GS130,LS131..HT..(HTWC,TD,TDE)198709-199110

main53801-3A770iGS130,131,LS130,131..HT..NOB198709-199110

main53801-3A780iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main53801-3A790iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

53802FENDER SUB-ASSY, FRONT LH

main53802-3A410iGS130,MS130..SDX..(LPG,TWLPG)198809-199110

main53802-3A420iGS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SALEX); GS130,JZS130,LS130..WG..(ROY,SALEX)198709-199110

main53802-3A440iGS130,131,LS130,MS130..SAL,SDX198709-199110

main53802-3A450iGS130,131,LS130..(SAL,SDX)..(DSL,EFI,HTWC,TD,TDE)198709-199110

main53802-3A460iGS136..SDX;GS130,LS130,MS130,YS130..DLX198709-199110

main53802-3A480iGS130,YS130..DLX..(EFI,HTWC,LPEFI,LPG); GS136,LS136..DLX,STD;GS130,LS130,YS130..STD198709-199110

main53802-3A590iGS131..HT..NOB;LS130..HT..(SALEX,SSL);GS130,LS131..HT..(HTWC,TD,TDE)198709-199110

main53802-3A600iGS130,131,LS130,131..HT..NOB198709-199110

main53802-3A610iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

main53802-3A620iGS131,JZS131,MS135,137,UZS131..WIB198709-199110

53813BEXTENSION, FRONT FENDER, RH

main53813-30040iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

53814BEXTENSION, FRONT FENDER, LH

main53814-30040iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30040iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53878CSPACER, FRONT FENDER

main53878-14020×4iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53879ARETAINER, FRONT FENDER LINER

main53879-22030×2iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main53879-30010×4iYS130..DLX198908-199110

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-30030iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-30030iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-30020×2iYS130..DLX..LPEFI;GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-30010iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main53895-30020iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB198709-199110

main53895-30030iMS135,137..WIB198709-198908

main53895-30031iGS131,JZS131,MS13#,UZS131..WIB198908-199110

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-30010iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

main53896-30020iYS130..DLX198908-199110

main53896-30030iMS135,137..WIB198709-198908

main53896-30031iGS131,JZS131,MS13#,UZS131..WIB198908-199110

53931BPANEL, FRONT END, RH

main53903-30180iGS130,131,LS130,MS13#..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC); GS130,LS130..WG198709-198908

main53903-30190iMS135,137..WIB198709-198908

main53903-30200iGS130,131,LS130..HT198709-198908

main53903-30210iGS136;GS130,LS13#,MS130,YS130..DLX,STD198709-198908

main53903-30220iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX); YS130..DLX198908-199110

main53903-30230iGS136..SDX;GS130,LS130,YS130..DLX198908-199110

main53903-30240iGS131,LS131..HT..NOB198908-199110

main53903-30250iGS131,JZS131,MS13#,UZS131..WIB198908-199110

53932BPANEL, FRONT END, LH

main53904-30180iGS130..SED..(SAL,SALEX,SDX)..HTWC198809-198908

main53904-30190iMS135,137..WIB198709-198908

main53904-30200iGS130,131,LS130..HT198709-198908

main53904-30210iGS136;GS130,LS13#,MS130,YS130..DLX,STD198709-198908

main53904-30220iGS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX); YS130..DLX198908-199110

main53904-30230iGS136..SDX;GS130,LS130,YS130..DLX198908-199110

main53904-30240iGS131,LS131..HT..NOB198908-199110

main53904-30250iGS131,JZS131,MS13#,UZS131..WIB198908-199110

5387830020LINER, FRONT FENDER, RH

main53878-30020

9011906352

main90119-06352

9015950153

main90159-50153

9016360007

main90163-60007

9016440021

main90164-40021

9018904095

main90189-04095

9018904139

main90189-04139

9018906006

main90189-06006

9018906102

main90189-06102

9033330002

main90333-30002

9046707081

main90467-07081

9046708008

main90467-08008

9046708011

main90467-08011

9046711028

main90467-11028

9046712038

main90467-12038

9046712043

main90467-12043

9095001379

main90950-01379

9095001392

main90950-01392

9095001404

main90950-01404

9165640616

main91656-40616

9166540625

main91665-40625

9359016016

main93590-16016

49 parts on this diagram · 1 diagram in section
