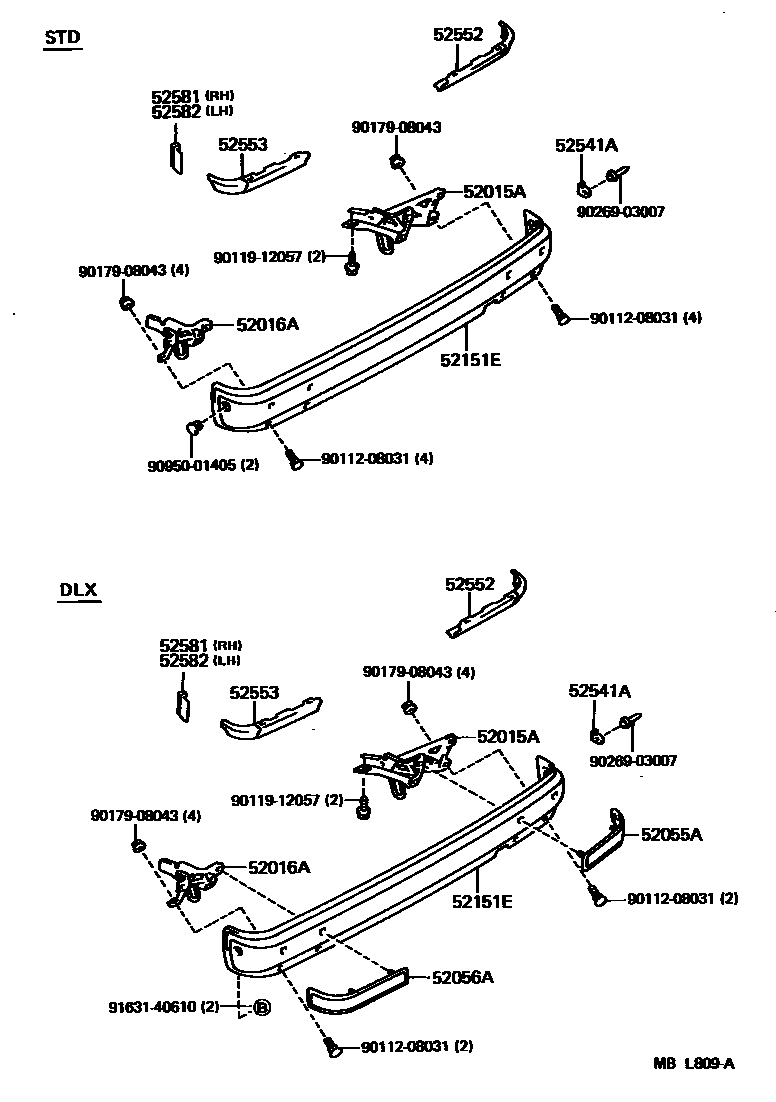

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-30110iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main52015-91705iGS136,LS136198709-199110

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-30110iGS130,LS130,MS130,YS130..DLX,STD198709-199110

main52016-91705iGS136,LS136198709-199110

52055APAD SUB-ASSY, REAR BUMPER, RH

main52055-30060iGS136..DLX,SDX;GS130,LS130,136,MS130,YS130..DLX198709-199110

52056APAD SUB-ASSY, REAR BUMPER, LH

main52056-30030iGS136..DLX,SDX;GS130,LS130,136,MS130,YS130..DLX198709-199110

52151EBAR, REAR BUMPER

main52151-30200iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52541APROTECTOR, REAR BUMPER

main52541-30030×2iGS130,LS130,MS130,YS130..DLX,STD198709-199110

52552FILLER, REAR BUMPER, RH

main52552-30050iMS130..SDX198809-198908

main52552-30060iGS130,131,LS130..HT198709-198908

main52552-30070iMS135,137..WIB198709-198908

main52552-30080iGS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)198709-199110

main52552-30090iGS130..SDX..TWLPG; GS131,JZS131,LS131,MS13#,UZS131..SED198908-199110

main52552-30100iGS131,LS131..HT..NOB198908-199110

main52552-30110iGS131,JZS131,MS13#,UZS131..WIB198908-199110

52553FILLER, REAR BUMPER, LH

main52553-30050iMS130..SDX198809-198908

main52553-30060iGS130,131,LS130..HT198709-198908

main52553-30070iMS135,137..WIB198709-198908

main52553-30080iGS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)198709-199110

main52553-30090iGS130..SDX..TWLPG; GS131,JZS131,LS131,MS13#,UZS131..SED198908-199110

main52553-30100iGS131,LS131..HT..NOB198908-199110

main52553-30110iGS131,JZS131,MS13#,UZS131..WIB198908-199110

52581PROTECTOR, REAR BUMPER, RH

main52581-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED198709-199110

52582PROTECTOR, REAR BUMPER, LH

main52581-30010iGS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED198709-199110

9011208031

main90112-08031

9011912057

main90119-12057

9017908043

main90179-08043

9026903007

main90269-03007

9095001405

main90950-01405

9163140610

main91631-40610

16 parts on this diagram · 7 diagrams in section
