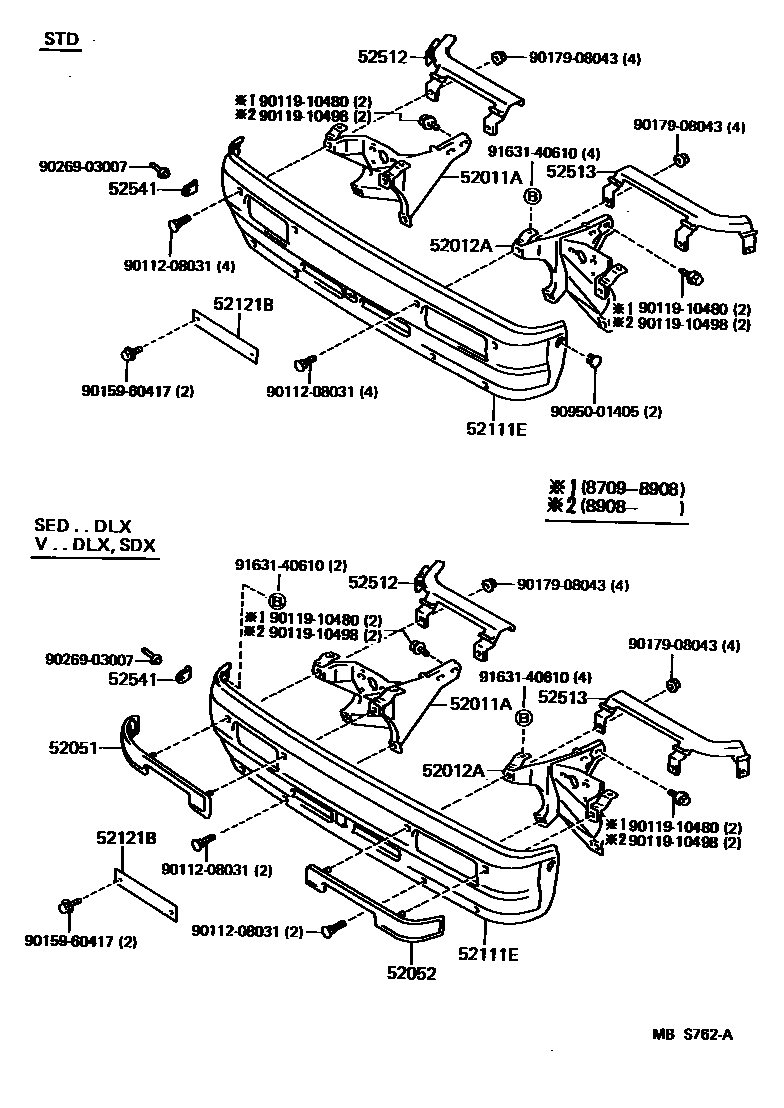

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-30150iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-30160iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-30080iGS136..DLX,SDX;GS130,LS130,136,MS130,YS130..DLX198709-199110

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-30060iGS136..DLX,SDX;GS130,LS130,136,MS130,YS130..DLX198709-199110

52111EBAR, FRONT BUMPER

main52111-30180iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-30080iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198808-199110

52512FILLER, FRONT BUMPER, RH

main52512-30030iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52513FILLER, FRONT BUMPER, LH

main52513-30030iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

52541PROTECTOR, FRONT BUMPER

main52541-30030×2iGS136;GS130,LS130,136,MS130,YS130..DLX,STD198709-199110

9011208031

main90112-08031

9011910480

main90119-10480

9011910498

main90119-10498

9015960417

main90159-60417

9017908043

main90179-08043

9026903007

main90269-03007

9095001405

main90950-01405

9163140610

main91631-40610

17 parts on this diagram · 6 diagrams in section
