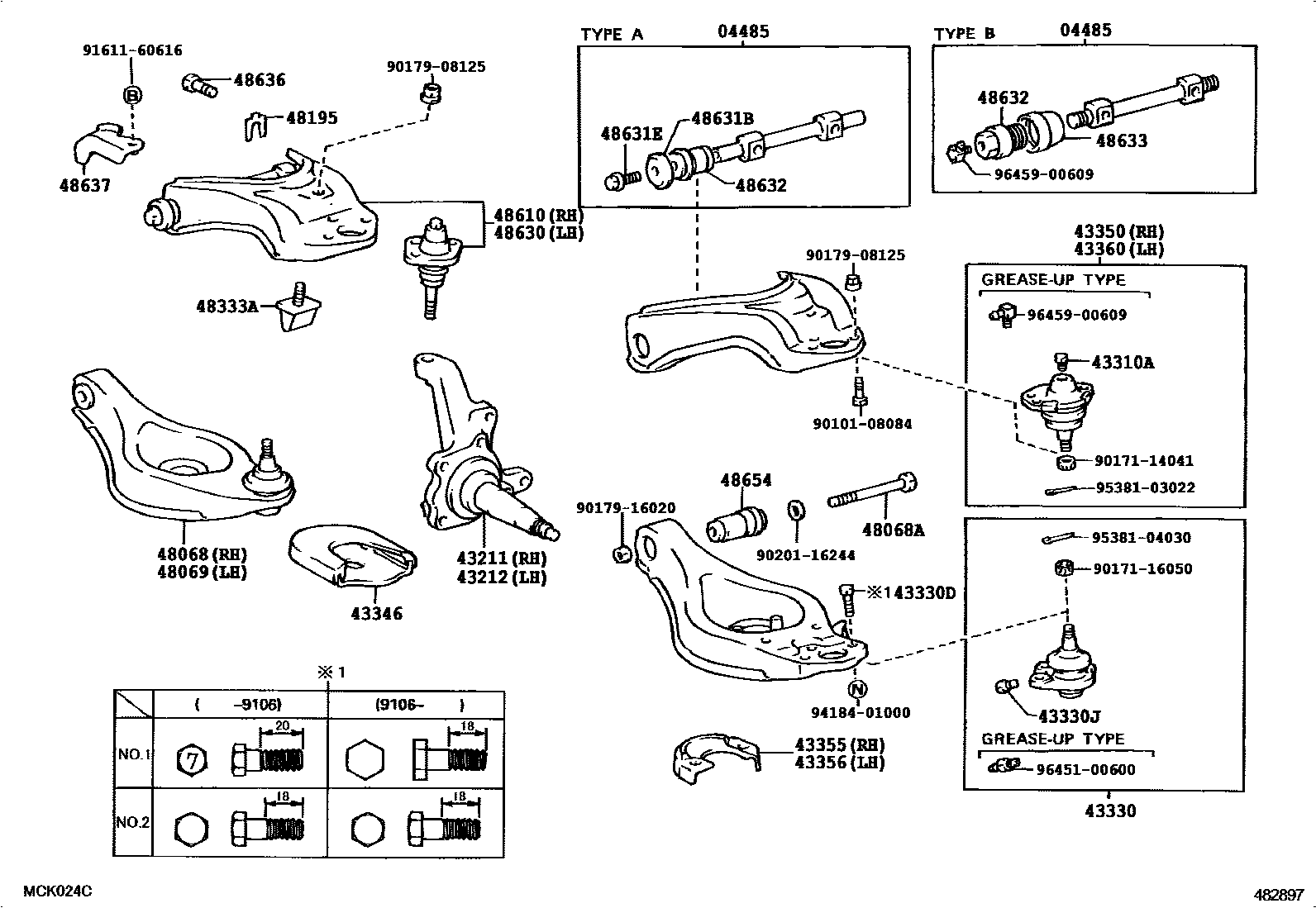

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1��(ESC) OR ABS

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-30050×2iGS130..4H..DLX..TWLPG198908-199110

main04485-30060×2iMS130..4H..DLX198709-198908

main04485-30070×2iLS130..4H..STD198709-198908

main04485-30080×2iJZS131,MS13#,UZS131..ROYG,SALEX198908-199110

43211KNUCKLE, STEERING, RH

main43211-30110iGS130,LS130,YS130..MTM..STD..(DSL,EFI,LPEFI,LPG)198709-199110

main43211-30120iLS130..4H..STD198908-199110

main43211-30140iLS130..5F..STD198709-199110

main43211-30150iGS131..ROY..SPC;JZS131,MS135..ROY198709-199110

43212KNUCKLE, STEERING, LH

main43211-30110iGS130,LS130,YS130..MTM..STD..(DSL,EFI,LPEFI,LPG)198709-199110

main43212-30060iYS130..MTM..STD198709-199110

main43212-30090iGS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-199110

main43212-30100iGS131..ROY..SPC;JZS131,MS135..ROY198709-199110

43310APLUG (FOR BALL JOINT)

main90345-06014×2iGS13#,LS13#,MS135198709-198908

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39225iGS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

main43330-39235iLS130..4H..STD198908-199110

main43340-39205iGS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

main43340-39215iYS130..MTM..STD198709-198908

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90101-10188iLS130..4H..STD199106-199110

NO.1

main90101-10439×6iGS13#,LS13#,MS13#,YS130198709-198908

main90105-10360×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130199106-199110

main90109-10097×3iUZS131198908-199106

43330JPLUG (FOR LOWER BALL JOINT)

main90345-06014×2iMS137198709-198908

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-30010×2iLS130..4H..STD198709-199110

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39055iLS130..4H..STD198908-199110

main43350-39065iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-30010iLS130..STD;GS130..WG..MTM;GS136,LS136,YS130;GS130..4H..DLX..TWLPG198908-199102

main43355-30011iGS130..STD199102-199106

main43355-30020iGS130..ATM..SDX;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,S198908-199010

main43355-30021iLS130..4H..STD199010-199106

main43355-30040iLS130..4H..STD199106-199110

main43355-30050iGS130..STD199106-199110

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-30010iGS130..STD198709-198908

main43356-30011iGS130..STD199102-199106

main43356-30020iMS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL198709-198908

main43356-30021iLS130..4H..STD199010-199106

main43356-30030iGS130..STD199106-199110

main43356-30040iLS130..4H..STD199106-199110

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39055iGS130,MS130,YS130..LPEFI,LPG,TWLPG198709-199110

main43350-39065iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC198709-199110

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30140iMS137,UZS131198709-199110

main48068-30150iGS136,LS136;GS130..WG..MTM198709-199110

main48068-30170iYS130..MTM..STD198908-199110

main48068-30180iLS130..4H..STD198709-198908

main48068-30230iGS136,LS136;GS130..WG..MTM;GS130,LS130..STD198709-199110

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-16024×2iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30140iMS137,UZS131198709-199110

main48069-30150iGS136,LS136;GS130..WG..MTM198709-199110

main48069-30170iGS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG)198709-199110

main48069-30180iLS130..4H..STD198709-198908

main48069-30230iGS136,LS136;GS130..WG..MTM;GS130,LS130..STD198709-199110

48195SHIM, CAMBER ADJUST

main90565-15016iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

main90565-15017iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

main90565-15018iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

48333ASUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM

main48333-30021×2iLS130..4H..STD198709-198908

main48333-30030×2iMS135..NOB198709-198908

main48333-30040×2iMS130..4H..SDX198709-199110

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-30110iGS136,LS136;GS130..WG..MTM198709-199110

main48610-30120iGS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG)198709-199110

main48610-30130iGS136,LS136;GS130..WG..MTM;GS130,LS130..STD198709-199110

main48610-30140iYS130..MTM..STD198709-198908

main48610-30150iLS130..4H..STD198709-198908

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-30110iGS136,LS136;GS130..WG..MTM198709-199110

main48630-30120iYS130..MTM..STD198709-198908

main48630-30130iGS136,LS136;GS130..WG..MTM;GS130,LS130..STD198709-199110

main48630-30140iYS130..MTM..STD198908-199110

main48630-30150iLS130..4H..STD198709-198908

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020×4iJZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#,YS130198908-199110

main90948-02110×4iGS131..ROY..SPC;JZS131,MS135..ROY,SSL198709-199110

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90105-12017×4iGS13#,LS13#,MS13#,YS130198709-198908

48632BUSH, UPPER ARM

main48632-30012×4iLS130..4H..STD198908-199110

main48632-30040×4iYS130..MTM..STD198709-198908

main48632-30060×4iJZS131,MS135..SALEX198908-199110

main48632-30070×4iYS130..MTM..STD198908-199110

48633SEAL, UPPER ARM PIVOT DUST

main48633-30011×4iLS130..4H..STD198709-198908

48636BOLT, UPPER ARM SET

main90105-14062×4iGS13#,JZS13#,LS13#,MS13#,UZS131,YS130198709-199110

48637INSULATOR, UPPER ARM BUSH

main48637-30010iLS130,131..TD,TDE198709-199110

48654BUSH, LOWER ARM

main48654-30030×2iYS130..MTM..STD198709-198908

main48654-30040×2iLS130..4H..STD198709-198908

9010108084

main90101-08084

9017114041

main90171-14041

9017116050

main90171-16050

9017908125

main90179-08125

9017916020

main90179-16020

9020116244

main90201-16244

9161160616

main91611-60616

9418401000

main94184-01000

9538103022

main95381-03022

9538104030

main95381-04030

9645100600

main96451-00600

9645900609

main96459-00609

38 parts on this diagram · 2 diagrams in section
