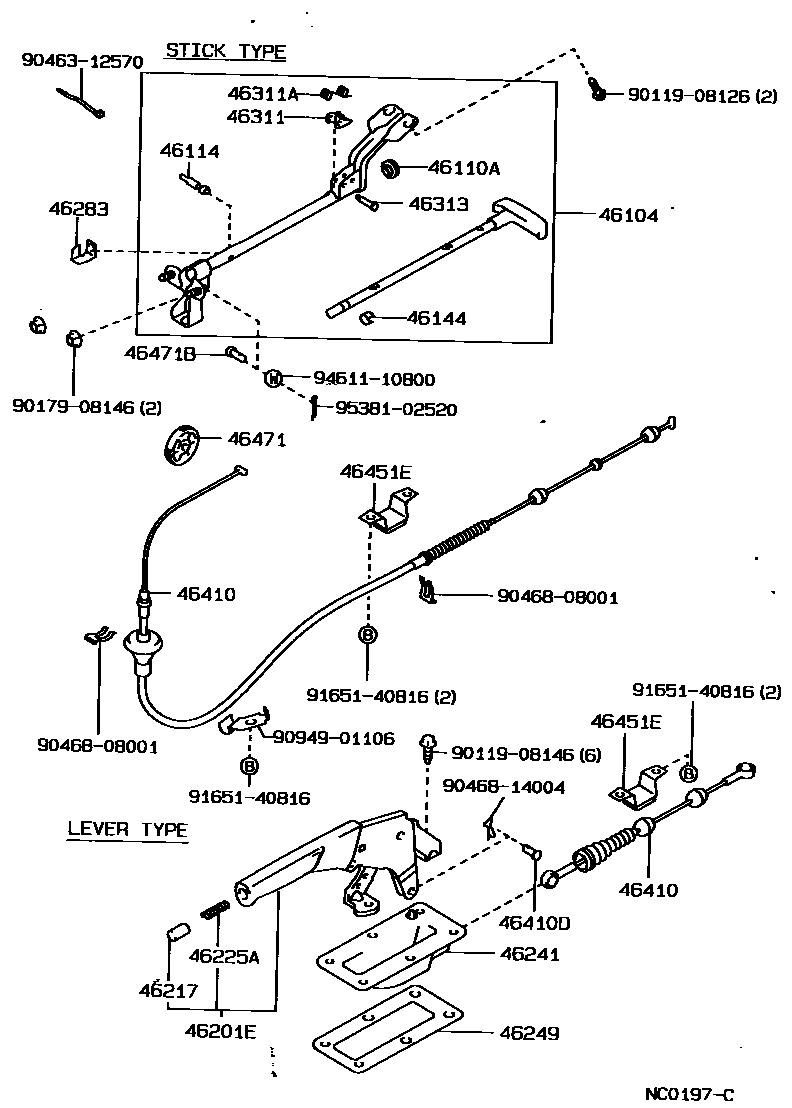

PARKING BRAKE & CABLE

0001 1 0002 1 0003 14-LINK 0004 1IRS 0005 14-LINK 0006 1IRS

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-30110iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30090iGS130,LS130..SED..ATM; GS130,LS130..WG..ATM; GS131,LS131..ATM; JZS13#,MS13#,UZS131198908-199110

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-30061-12iGS130..5F..(DLX,SAL,SALEX,SDX,SPE);GS136,LS13#..(4FC,5F)..(DLX,SDX,SPE,SSL)..(DSL,EFI,TD)198709-198803

MAROON,TRIM3#

main46201-30061-16iGS130,LS130..5F..(SAL,SALEX,SPE,SSL)198709-198803

SABLE,TRIM4#

main46201-30061-24iLS136..DLX;GS130,136,LS130,YS130..5F198709-198803

BLUE,TRIM8#

main46201-30062-12iGS130..5F..(DLX,SDX);GS136,LS130,136..(4FC,5F)..(DLX,SDX)..(DSL,HTWC,TD)198908-199110

MAROON,TRIM3#

main46201-30062-14iLS136..DLX;GS130,136,LS130,YS130..5F198803-199110

BLUE,TRIM8#

main46201-30062-16iGS130,LS130..5F..(SAL,SALEX,SPE,SSL)198803-198908

SABLE,TRIM4#

main46201-30081-12iGS131..5F198709-198803

MAROON,TRIM3#

main46201-30081-16iGS131..5F198709-198803

SABLE,TRIM4#

main46201-30081-24iGS131..5F198709-198803

BLUE,TRIM8#

main46201-30082-12iGS131,LS131..5F198803-199110

MAROON,TRIM3#

main46201-30082-14iGS131,LS131..5F198803-199110

BLUE,TRIM8#

main46201-30082-16iGS131,LS131..5F198803-199110

SABLE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-10iGS130,131,LS130..5F..(ROY,SAL,SALEX,SPE,SSL)198709-198711

SABLE,TRIM4#

main46217-10020-20iLS136..DLX;GS13#,LS130,YS130..5F198709-198711

BLUE,TRIM8#

main46217-10020-42iLS136..DLX;GS13#,LS130..5F..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)198709-198711

MAROON,TRIM3#

main46217-12020-06iGS130,131,LS130,131..5F..(ROY,SAL,SALEX,SPE,SSL)198803-199110

SABLE,TRIM4#

main46217-12020-D0iLS136..DLX;GS130..5F..(SAL,SALEX,SDX,SPE)..HTWC;GS130..5F..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,136,LS130..5F..(DLX,ROY,SALEX,SDX,SPE,SSL)198807-198908

MAROON,TRIM3#

main46217-12020-J0iLS136..DLX;GS13#,LS130,131,YS130..5F198807-199110

DARK BLUE,TRIM8#

main46217-20020-20iGS130,131,LS130..HT..5F; GS130..5F..(SAL,SALEX); LS130..SSL..TD198711-198807

SABLE,TRIM4#

main46217-20020-42iGS13#,LS130..5F..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL); LS136..DLX198711-198807

MAROON,TRIM3#

main46217-20020-54iLS136..DLX;GS13#,LS130,YS130..5F198711-198807

DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

46241BOOT, PARKING BRAKE LEVER

main46241-30010iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

46249SHIELD, PARKING BRAKE HOLE

main46249-30010iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

46283PROTECTOR, PARKING BRAKE SIGNAL SWITCH

main46283-30020iLS136..STD;GS13#,JZS13#,LS130,131,MS13#,UZS131,YS130..4FC,4H,4HC198709-199110

46311PAWL, PARKING BRAKE

main46311-30041×2iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iGS130,131,LS130,MS13#..ATM198709-198908

main90508-08106iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46313PIN, PARKING BRAKE PAWL

main46313-40010×2iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30310iGS131,LS131..5F198709-199110

main46410-30390iGS131,MS135,137..ATM198709-198710

main46410-30430iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

main46410-30460iGS130,JZS130,LS130,MS130..ATM198709-199110

main46410-30480iLS136..DLX;GS130,136,LS130,YS130..5F198709-199110

main46410-30510iGS131,JZS131,LS131,MS135,137,UZS131..ATM198710-199110

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08021iLS136..DLX;GS13#,LS130,131,YS130..5F198709-199110

main90249-10012iGS130,131,JZS13#,LS130,131,MS13#,UZS131..ATM198709-199110

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-30080iGS131,LS131..5F;GS130,136,JZS130,LS130,136,YS130198908-199110

46471PULLEY, WIRE

main46471-30010iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iYS130..4H,4HC;GS130,136,LS130,136,MS130..4H198709-199110

9011908126

main90119-08126

9011908146

main90119-08146

9017908146

main90179-08146

9046312570

main90463-12570

9046808001

main90468-08001

9046814004

main90468-14004

9094901106

main90949-01106

9165140816

main91651-40816

9461110800

main94611-10800

9538102520

main95381-02520

29 parts on this diagram · 6 diagrams in section
