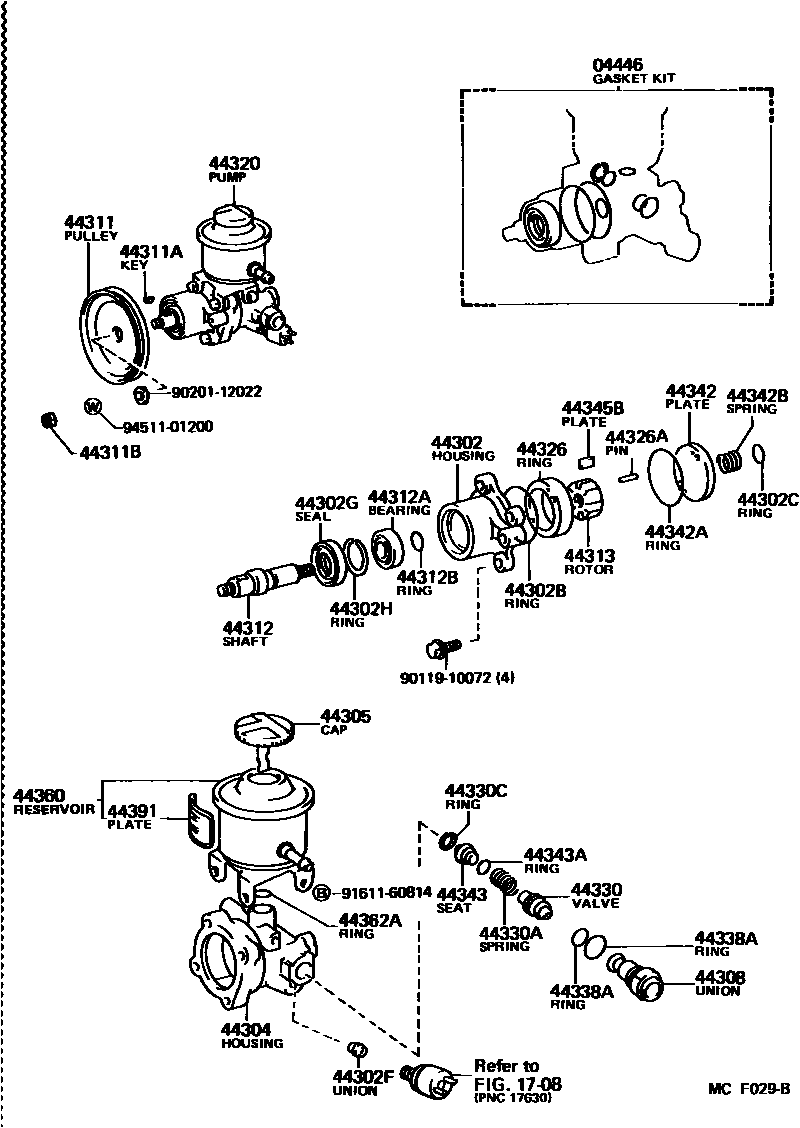

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20030iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198712-199110

main04446-30060iLS13#,MS130,YS130198709-199011

main04446-30061iYS130199012-199110

main04446-30080iGS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL198709-198712

main04446-30090iGS130,131,MS135,137..SPC,TWC198709-198908

main04446-30091iGS130,131,MS13#..SPC,TWC,TWLPG198908-199110

main04446-30110iJZS13#199008-199110

main04446-50010iUZS131198908-199110

1708VACUUM PIPING

→ Go to FIG 17-08

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYS130198709-199012

main44302-22020iLS13#198709

main44302-22031iGS130,131..TWC,TWLPG198709-199110

main44302-22050iGS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC198809-199110

main44302-22060iJZS13#199008-199106

main44302-22061iJZS13#199106-199110

main44302-28020iYS130199012-199110

main44302-30040iGS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198709-198908

main44302-30060iMS130198709-198908

main44302-30080iGS130,131..SPC198709-199110

main44302-30090iMS135,137198709-199110

main44302-50010iUZS131198908-199110

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLS13#,MS130,YS130198709-199110

main90301-63002iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLS13#,MS130,YS130198709-199110

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05005iUZS131198908-199110

main90410-05035iMS130..ATM;GS136,YS130;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iUZS131,YS130199012-199110

main90311-17005iGS130..TWLPG198908-199110

main90311-17007iJZS13#199008-199110

main90311-18007iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main90311-18008iGS130,131,MS135,137..SPC,TWC198709-199110

main90311-24006iLS13#,MS130,YS130198709-199012

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

main90521-44002iJZS13#,LS13#,MS130,YS130198709-199012

main90521-51003iYS130199012-199110

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYS130198709-199110

main44304-30051iLS13#198709-199110

main44304-30090iMS130..4H198709-198908

main44304-30110iMS130..ATM198709-198908

main44324-12031iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44324-22030iGS131..TWC198709-198808

main44324-22031iGS130,131..TWC,TWLPG198808-199110

main44324-30090iGS130,131..SPC198709-198808

main44324-30091iGS130,131..SPC198808-199110

main44324-30100iMS135,137198709-199110

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12010iGS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-198811

main44305-22040iGS136,LS130,136,YS130;GS130,131,LS131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198811-199110

main44305-50010iJZS13#,UZS131198908-199110

44308UNION SUB-ASSY, PRESSURE PORT

main44308-30060iGS131,LS13#,MS130,YS130..DSL,LPG,TD,TDE,TWC198709-198712

main44308-30080iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44308-30090iGS130,131..SPC198908-199110

main44308-30100iMS137198709-198908

main44308-30110iGS130,131..TWC,TWLPG198712-199110

main44308-30120iUZS131198908-199110

main44308-30130iJZS13#199008-199106

main44308-30140iJZS13#199106-199110

44311PULLEY, VANE PUMP

main44311-12010iYS130198709-199012

main44311-22030iMS130198709-198908

main44311-22050iGS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC198809-199110

main44311-22070iLS13#198908

main44311-22090iJZS13#199008-199110

main44311-30040iLS13#198709-198908

main44311-30080iGS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198709-198908

main44311-30090iGS130,131..TWC,TWLPG198709-199110

main44311-30100iGS130,131..SPC198709-199110

main44311-30110iMS135,137198709-199110

main44311-30130iUZS131198908-199110

main44311-30140iYS130199012-199110

44311AKEY, VANE PUMP PULLEY

main90280-05008iGS136,LS130,136;GS130,131,LS131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL199012

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iLS13#199012

main90179-12022iGS131,136,JZS13#,MS135,137,UZS131..HTWC,SPC,TWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(HTWC,SPC,TWLPG)198709-199012

main90179-12055iGS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198709-198908

44312SHAFT, VANE PUMP

main44312-12010iLS13#,MS130,YS130198709-199012

main44312-12020iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

main44312-12030iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44312-26010iJZS13#199008-199110

main44312-26020iJZS13#199008-199110

main44312-50010iUZS131,YS130199012-199110

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iLS13#199012

main90363-17007iUZS131198908-199110

main90363-17008iJZS13#199008-199110

main90363-17011iYS130199012-199110

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iGS136;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main90520-15001iJZS13#,LS13#199012

main90520-15005iUZS131,YS130199012-199110

44313ROTOR, VANE PUMP

main44313-12010iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44313-12020iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44313-12030iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44313-12040iLS13#,MS130,YS130198712-198810

main44313-12050iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44313-22040iGS136,LS130,136,YS130;GS130,131,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110

main44313-22050iGS136,LS130,136,YS130;GS130,131,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110

main44313-22060iGS136,LS130,136,YS130;GS130,131,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110

main44313-22070iGS136,LS130,136,YS130;GS130,131,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110

main44313-22080iGS136,LS130,136,YS130;GS130,131,LS131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198908-199110

main44313-26060iJZS13#199008-199110

main44313-26070iJZS13#199008-199110

main44313-26080iJZS13#199008-199110

main44313-26090iJZS13#199008-199110

main44313-26100iJZS13#199008-199110

main44313-32010iMS137198709-198908

main44313-32020iMS137198709-198908

main44313-32030iMS13#,UZS131198908-199110

main44313-32040iMS13#,UZS131198908-199110

main44313-32050iMS137198709-198908

44320PUMP ASSY, VANE

main44320-30161iGS131..TWC198709-198712

main44320-30260iYS130198709-198908

main44320-30280iMS130..4H198709-198908

main44320-30290iMS130..ATM198709-198908

main44320-30300iGS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL198709-198712

main44320-30301iGS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198712-198908

main44320-30310iGS130,131..SPC198709-198712

main44320-30311iGS130,131..SPC198712-199110

main44320-30320iMS137198709-198908

main44320-30330iMS135198709-198712

main44320-30331iMS135198712-198908

main44320-30340iLS13#198709

main44320-30351iGS131..TWC198712-199110

main44320-30360iGS131,136..HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..HTWC198809-199110

main44320-30370iUZS131198908-199110

main44320-30380iGS130..TWLPG198908-199110

main44320-30390iYS130198908-199012

main44320-30400iJZS13#199008-199106

main44320-30401iJZS13#199106-199110

main44320-30410iYS130199012-199110

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLS13#,MS130,YS130198709-199110

main44325-12020iLS13#,MS130,YS130198709-199110

main44325-12030iLS13#,MS130,YS130198709-199110

main44325-12040iLS13#,MS130,YS130198709-199110

main44325-12050iLS13#,MS130,YS130198709-199110

main44325-22020iMS13#198908-199110

main44325-22030iMS137198709-198908

main44325-22040iMS137198709-198908

main44325-22050iMS13#198908-199110

main44325-22060iMS13#198908-199110

main44325-30100iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44325-30110iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44325-30120iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44325-30130iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44325-30140iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main44325-30150iGS130,131..SPC,TWC,TWLPG198908-199110

main44325-30160iGS130,131,MS135..SPC,TWC198709-198908

main44325-30170iGS130,131,MS135..SPC,TWC198709-198908

main44325-30180iGS130,131,MS135..SPC,TWC198709-198908

main44325-30190iGS130,131,MS135..SPC,TWC198709-198908

main44325-32010iUZS131198908-199110

main44325-32020iUZS131198908-199110

main44325-32030iUZS131198908-199110

main44325-32040iUZS131198908-199110

main44325-32050iUZS131198908-199110

main44325-32060iJZS13#199008-199110

main44325-32070iJZS13#199008-199110

main44325-32080iJZS13#199008-199110

main44325-32090iJZS13#199008-199110

main44325-32100iJZS13#199008-199110

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iGS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main90250-04049iGS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198709-199110

main90250-04071×2iJZS13#199008-199110

main90250-05008iGS130,131,MS135,137..SPC,TWC,TWLPG; LS13#,MS130,YS130198709-199110

main90250-05017iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

44330VALVE ASSY, FLOW CONTROL

main44330-26010iJZS13#199008-199106

main44330-26011iJZS13#199106-199110

main44330-26020iJZS13#199008-199106

main44330-26021iJZS13#199106-199110

main44330-26030iJZS13#199008-199106

main44330-26031iJZS13#199106-199110

main44330-26040iJZS13#199008-199106

main44330-26041iJZS13#199106-199110

main44330-26050iJZS13#199008-199106

main44330-26051iJZS13#199106-199110

main44330-26060iJZS13#199008-199106

main44330-26061iJZS13#199106-199110

main44330-30100iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44330-30110iGS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC)198712-198908

main44330-30120iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44330-30130iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44330-30140iGS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL198709-198712

main44330-30150iGS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC)198712-198908

main44330-30160iMS137198709-198908

main44330-30161iMS13#198908-199110

main44330-30170iMS137198709-198908

main44330-30171iMS13#198908-199110

main44330-30180iMS137198709-198908

main44330-30181iMS13#198908-199110

main44330-30190iMS137198709-198908

main44330-30191iMS13#198908-199110

main44330-30200iMS137198709-198908

main44330-30201iMS13#198908-199110

main44330-30210iMS137198709-198908

main44330-30211iMS13#198908-199110

main44330-30220iGS131..TWC198712-198908

main44330-30221iGS131..TWC198908-199110

main44330-30230iGS131..TWC198712-198908

main44330-30231iGS131..TWC198908-199110

main44330-30240iGS131..TWC198712-198908

main44330-30241iGS131..TWC198908-199110

main44330-30250iGS131..TWC198712-198908

main44330-30251iGS131..TWC198908-199110

main44330-30260iGS131..TWC198712-198908

main44330-30261iGS131..TWC198908-199110

main44330-30270iGS131..TWC198712-198908

main44330-30271iGS131..TWC198908-199110

main44330-30280iUZS131198908-199110

main44330-30290iUZS131198908-199110

main44330-30300iUZS131198908-199110

main44330-30310iUZS131198908-199110

main44330-30320iUZS131198908-199110

main44330-30330iUZS131198908-199110

main44330-32130iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

main44330-32140iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

main44330-32150iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

main44330-32160iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

main44330-32170iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

main44330-32180iGS136,LS130,136,YS130;GS130,131,LS131..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(HTWC,SPC,TD,TDE,TWLPG)198908-199110

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-11047iJZS13#199008-199106

main90501-12103iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main90501-13034iJZS13#199106-199110

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iGS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,136,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC198712-199110

main96151-02200iMS135,137,UZS131;GS130,131..SPC,TWLPG198712-199110

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iGS131,136,UZS131..EFI,HTWC;GS130,JZS13#..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)198709-199110

main90301-22001iGS130,131,LS13#,MS13#,YS130..DSL,LPEFI,SPC,TD,TDE,TWC,TWLPG198908-199110

main96711-19014iGS130,131,LS13#,MS13#,YS130..DSL,LPEFI,SPC,TD,TDE,TWC,TWLPG198908-199110

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLS13#,MS130,YS130198709-199110

main44342-12021iGS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL198709-198712

main44342-20010iUZS131198908-199110

main44342-22010iGS130,131,MS135..ROY198709-198712

main44342-30020iGS130,131,MS135..SPC,TWC198712-198908

main44342-30030iMS137198709-198908

main44342-32010iGS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC)198712-199110

main44342-32050iJZS13#199008-199110

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

main90301-25001iGS130..ATM..SDX..HTWC;GS130..SED..5F..SDX..HTWC;GS130,131..(DLX,SAL,SALEX,SPE,SSL)..HTWC; GS130..WG..MTM..HTWC198809-198908

main90301-30004iGS130,131,MS135,137..SPC,TWC,TWLPG198709-199110

main90301-47001iJZS13#199008-199110

main90301-52001×2iGS131,136..HTWC;GS130..(DLX,SALEX,SDX)..HTWC198908-199110

main90301-53002iLS13#,MS130,YS130198709-199110

main90301-53003iUZS131198908-199110

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLS13#,MS130,YS130198709-199110

44343SEAT, FLOW CONTROL SPRING

main44343-12030iGS130,131,MS135,137..SPC,TWC198709-198712

main44343-12040iGS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,136,LS13#,MS130,YS130..DSL,EFI,HTWC,LPEFI,LPG,TD,TDE,TWC198712-199110

main44343-50010iUZS131198908-199110

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iGS136,LS13#,YS130;GS130,131,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG)198709-198908

main96711-19019iGS130,131,MS135,137..SPC,TWC198709-198712

44345BPLATE, VANE PUMP

main44345-12010×10iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main44345-12020×10iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main44345-12030×10iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main44345-12040×10iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main44345-12050×10iGS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL198709-199110

main44345-26010×10iJZS13#199008-199110

main44345-26020×10iJZS13#199008-199110

main44345-26030×10iJZS13#199008-199110

main44345-26040×10iJZS13#199008-199110

main44345-26050×10iJZS13#199008-199110

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-30200iYS130198709-199110

main44306-30210iMS130198709-198908

main44306-30220iGS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198709-198908

main44306-30230iGS130,131..SPC198709-199110

main44306-30280iJZS13#199008-199110

main44306-50010iUZS131198908-199110

main44360-30100iLS13#198709-199110

main44360-30120iGS131,136,MS135,137..HTWC,TWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(HTWC,TWLPG)198709-199110

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11010iJZS13#199008-199110

main90301-12003iUZS131;GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI198709-199110

main96711-19013iGS130,131,MS130,YS130..LPEFI,LPG,SPC198709-199110

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iYS130198709-199110

9011910072

main90119-10072

9020112022

main90201-12022

9161160814

main91611-60814

9451101200

main94511-01200

38 parts on this diagram · 11 diagrams in section
