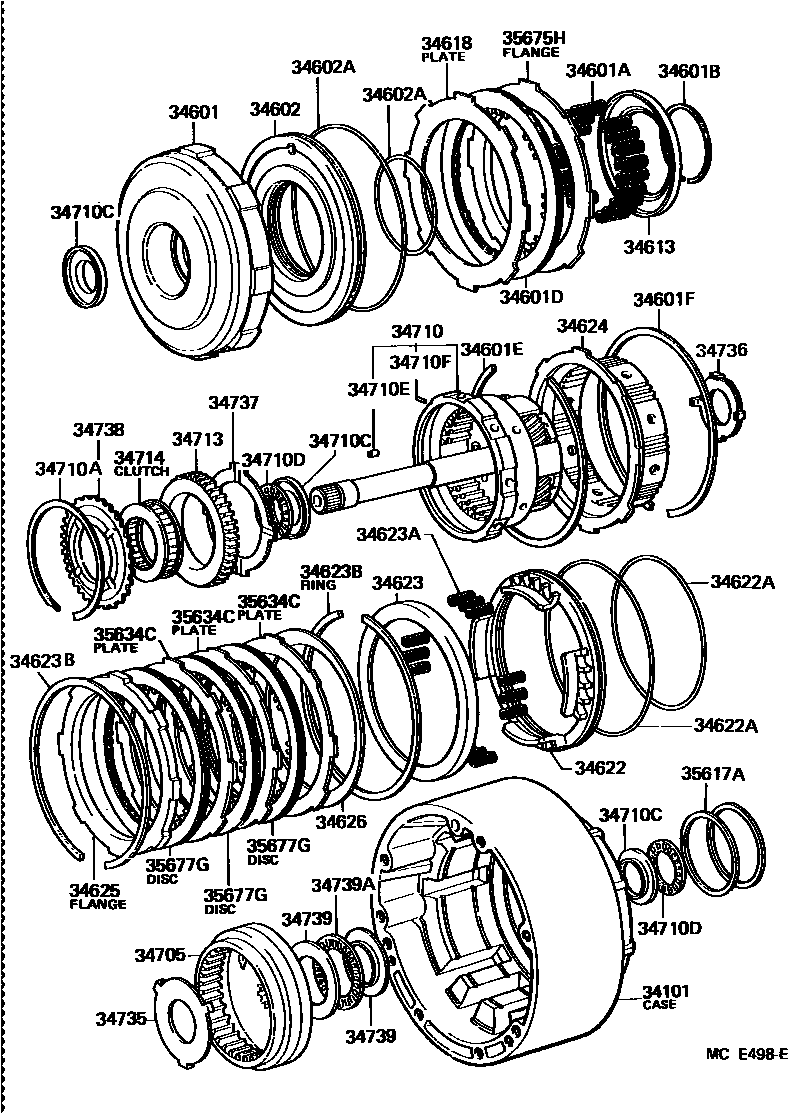

OVERDRIVE GEAR (ATM)

0001 1 0002 1 0003 1 0004 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-30052iLS136,MS130..ATM198709-199110

main34101-30062iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30011iLS136,MS130..ATM198709-199110

main34601-30022iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main34601-30030iGS130,131..SPC;JZS13#,MS135,137198709-199110

main34601-50010iUZS131198908-199110

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023×18iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iLS136,MS130..ATM198709-199110

main34602-30020iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

main34602-30030iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main90301-65005iMS13#,UZS131;GS130,131..SPC198908-199003

main90301-99016iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198810

main90301-99036iMS135,137;GS130,131..SPC198709-198908

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35634-30070iLS136..4FC198908-199110

34622PISTON, OVERDRIVE BRAKE

main34622-22010iLS136,MS130..ATM198709-199110

main34622-30030iMS135,137198709-199110

main34622-30040iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main34622-35010iJZS13#;GS130,131..SPC198709-199110

main34622-50010iUZS131198908-199110

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGS130,131,LS130,YS130..ATM..(EFI,HTWC,LPG,TDE,TWC)198709-198908

main90301-99009iGS130,131,LS130,YS130..ATM..(EFI,HTWC,LPG,TDE,TWC)198709-198908

main90301-99015iLS136,MS130..ATM198709-198908

main90301-99035iMS135,137;GS130,131..SPC198709-198908

main90301-99037iJZS13#,MS13#;GS130,131..SPC199003-199110

main90301-99063iUZS131198908-199110

main90301-99064iUZS131198908-199110

main90301-99192iLS136..4FC198908-199110

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30010iLS136,MS130..ATM198709-199110

main34623-30020iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×12iLS130,131,YS130..ATM; LS136,MS130..ATM198709-199110

main90501-11023×20iGS130..ATM..TWLPG198908-199110

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGS130,131..ATM..HTWC198809-198908

main90521-99139×2iLS136,MS130..ATM198709-198908

34624HUB, OVERDRIVE BRAKE

main34624-30010iLS136,MS130..ATM198709-199110

main34624-32010iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-26010×2iGS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWLPG); GS131..4FC..TWC198908-199110

main34625-30030iJZS13#;GS130,131..SPC; MS13#198908-199110

main34625-30040iGS130,131..SPC;JZS13#,MS13#,UZS131199003-199110

main34625-30050iGS130,131..SPC;JZS13#,MS13#,UZS131199003-199110

main34625-30060iGS130,131..SPC;JZS13#,MS13#,UZS131199003-199110

main34625-30070iMS13#,UZS131;GS130,131..SPC198908-199003

main34625-30080iMS13#,UZS131;GS130,131..SPC198908-199003

main34625-30090iGS130,131..SPC;JZS13#,MS13#,UZS131199003-199110

main34625-30100iMS13#,UZS131198908-199110

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30020iLS136,MS130..ATM198709-199110

main34626-30050iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-14010iLS136,MS130..ATM198709-199110

main34705-30021iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGS130,131..ATM..(HTWC,TWC)198908-199110

main34710-22010iLS136,MS130..ATM198709-199110

main34710-22040iGS130,131..ATM..HTWC198809-198908

main34710-30022iLS130,131,YS130..ATM198709-199110

main34710-30030iGS130,131..SPC;JZS13#,MS135,137198709-199110

main34710-50010iUZS131198908-199110

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-79148iLS136,MS130..ATM198709-199110

main90521-99003iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30010iLS136,MS130..ATM198709-199110

main34739-30031iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

CTR

main34739-30041iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35789-22010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,HTWC,LPG,TDE)198812-198908

main35789-30050iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG); LS136,MS130..ATM198709-199110

main90374-24001iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

CTR

main90374-25005iMS135,137;GS130,131..SPC198709-198908

main90374-28008iGS130,131..SPC;JZS13#,MS13#,UZS131199003-199110

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30010iLS136,MS130..ATM198709-199110

main34713-30020iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main34713-32010iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30020iLS136,MS130..ATM198709-199110

main35791-30030iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35791-30040iMS135,137;GS130,131..SPC198709-198907

main35791-50010iGS130,131..SPC;JZS13#,MS135,137,UZS131198907-199110

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30010iLS136,MS130..ATM198709-199110

main34735-30020iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30010iLS136,MS130..ATM198709-199110

main34737-30020iGS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWC,TWLPG)199008-199110

main34737-30030iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30010iLS136,MS130..ATM198709-199110

main34738-30020iGS130,131,LS130,131,YS130..ATM..(EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

main35789-22030iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)198709-198908

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iGS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)198709-199110

main35617-30020×2iGS130,131..SPC;JZS13#,MS135,137,UZS131198709-199110

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010iUZS131198908-199110

main34616-50010iUZS131198908-199110

main34634-30010×4iGS131..4FC..TWC198709-198908

main35634-22060×3iLS136,MS130..ATM198709-199110

main35634-30080×3iGS131..4FC..TWC198709-198908

35675HFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-22010iMS130..ATM198709-198908

main35675-22010iGS130,131,LS130,YS130..ATM..(EFI,HTWC,LPG,TDE,TWC)198709-198908

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-30030×3iLS136,MS130..ATM198709-199110

main35677-30040×3iGS130,131,LS130..ATM..(EFI,HTWC,TDE); GS131,YS130..ATM..(LPG,TWC)198709-198908

38 parts on this diagram · 4 diagrams in section
