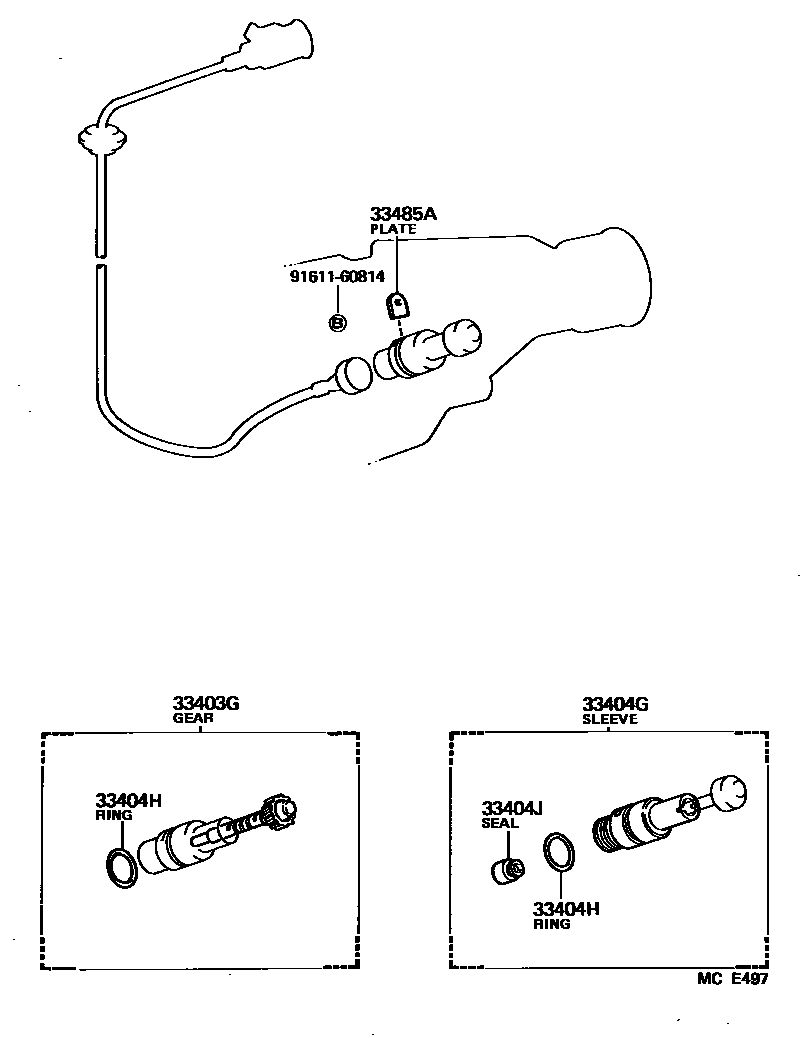

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iMS130..ATM198709-198908

main33403-29245iGS130,131..ATM..HTWC198809-199110

main33403-39185iGS130,LS13#..4FC..(DSL,SPC,TDE)198809-198908

main33403-39195iGS130,131..ATM..(EFI,TWC)198709-199110

main33403-39205iGS131..SPC198809-198908

main33403-69135iMS13#,YS130..ATM198908-199110

main33403-69195iUZS131198908-199110

main33482-39315iGS130..ATM..TWLPG198908-199110

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM198709-199110

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM198709-199110

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGS130,131,LS13#,MS13#,YS130..ATM198709-198908

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iGS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM198709-199110

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
