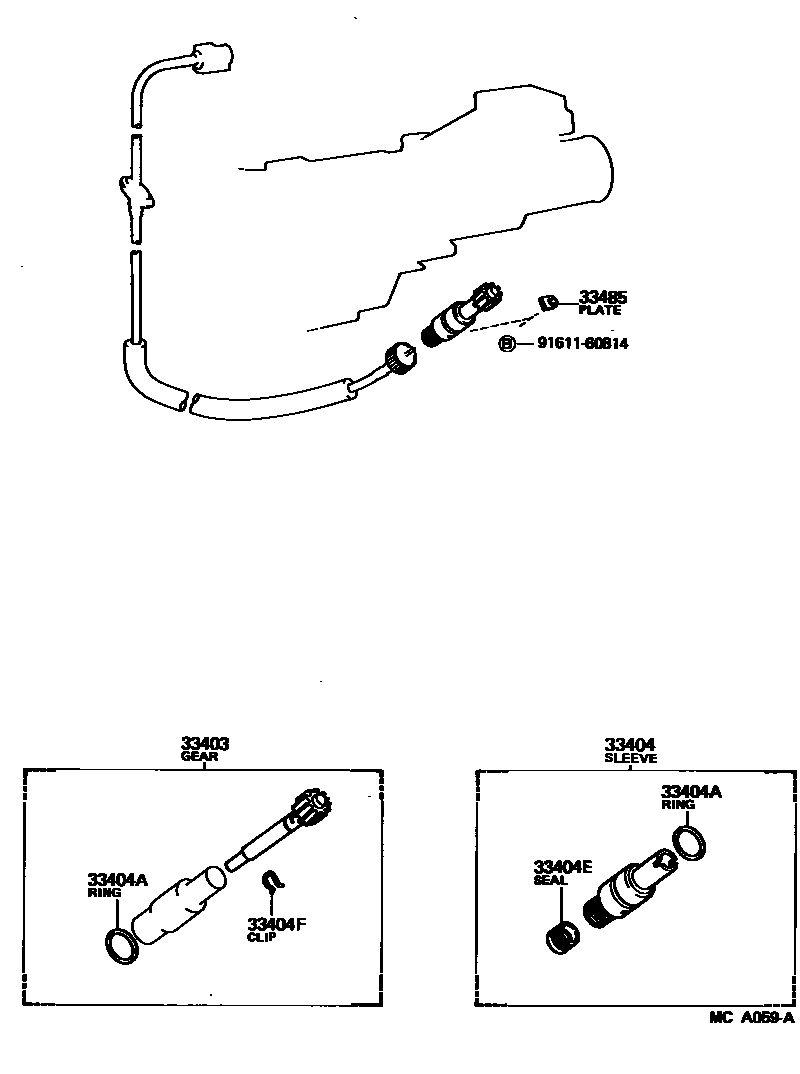

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19235iGS130..5F..STD198709-199110

main33403-29125iLS130..5F..DSL198709-199110

main33403-29135iYS130..5F198709-199110

main33403-29145iLS130,131..TD198709-199110

main33403-39065iGS130..5F..STD..HTWC;GS13#..5F..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)198709-199110

main33403-39075iLS136..5F198709-199110

main33482-29055iLS136..STD198908-199110

main33482-39025iLS130..4H198709-199110

main33482-39035iGS130,MS130..SED..4H198709-199110

main33482-39045iYS130..4H198709-199110

main33482-39085iGS130,136,LS136..(V,WG)..4H198709-199110

main33482-39135iYS130..4H198709-199110

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iGS13#,LS13#,YS130..5F198709-199110

main33404-35010iGS130,136,LS130,136,MS130,YS130..4H198709-199110

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iGS130,136,LS130,136,MS130,YS130..4H198709-199110

main96711-24030iGS13#,LS13#,YS130..5F198709-199110

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGS13#,LS13#,MS130,YS130..MTM198709-199110

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGS13#,LS13#,MS130,YS130..MTM198709-199110

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iGS13#,LS13#,MS130,YS130..MTM198709-199110

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
