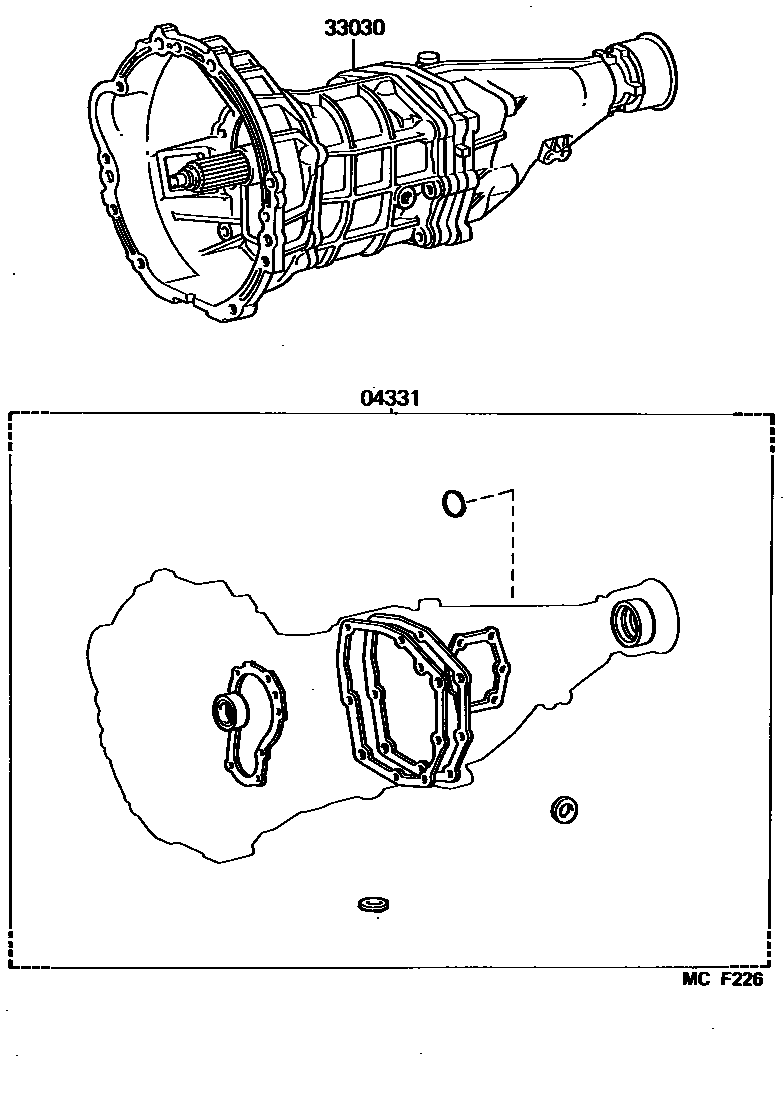

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1 0004 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20041iGS130,136,LS13#,MS130,YS130..4H198709-198908

main04331-20050iGS13#,LS13#,YS130..5F198709-198908

main04331-22040iGS13#,LS13#,YS130..5F198908-199110

main04331-30090iGS130,136,LS130,136,YS130..4H198908-199110

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-3A040iMS130..4H198709-198908

main33030-3A050iGS130..SED..4H198709-199110

main33030-3A060iLS136..STD198709-199110

main33030-3A070iLS130..4H198709-199110

main33030-3A190iGS130,136..(V,WG)..4H198709-199110

main33030-3A260iYS130..4H198709-199110

main33030-3A271iYS130..5F198709-199110

main33030-3A320iLS130..5F..DSL198908-199110

main33030-3A330iLS136..5F198709-199110

main33030-3A340iGS13#..5F198709-199110

main33030-3A370iLS130,131..TD198908-199110

2 parts on this diagram · 4 diagrams in section
