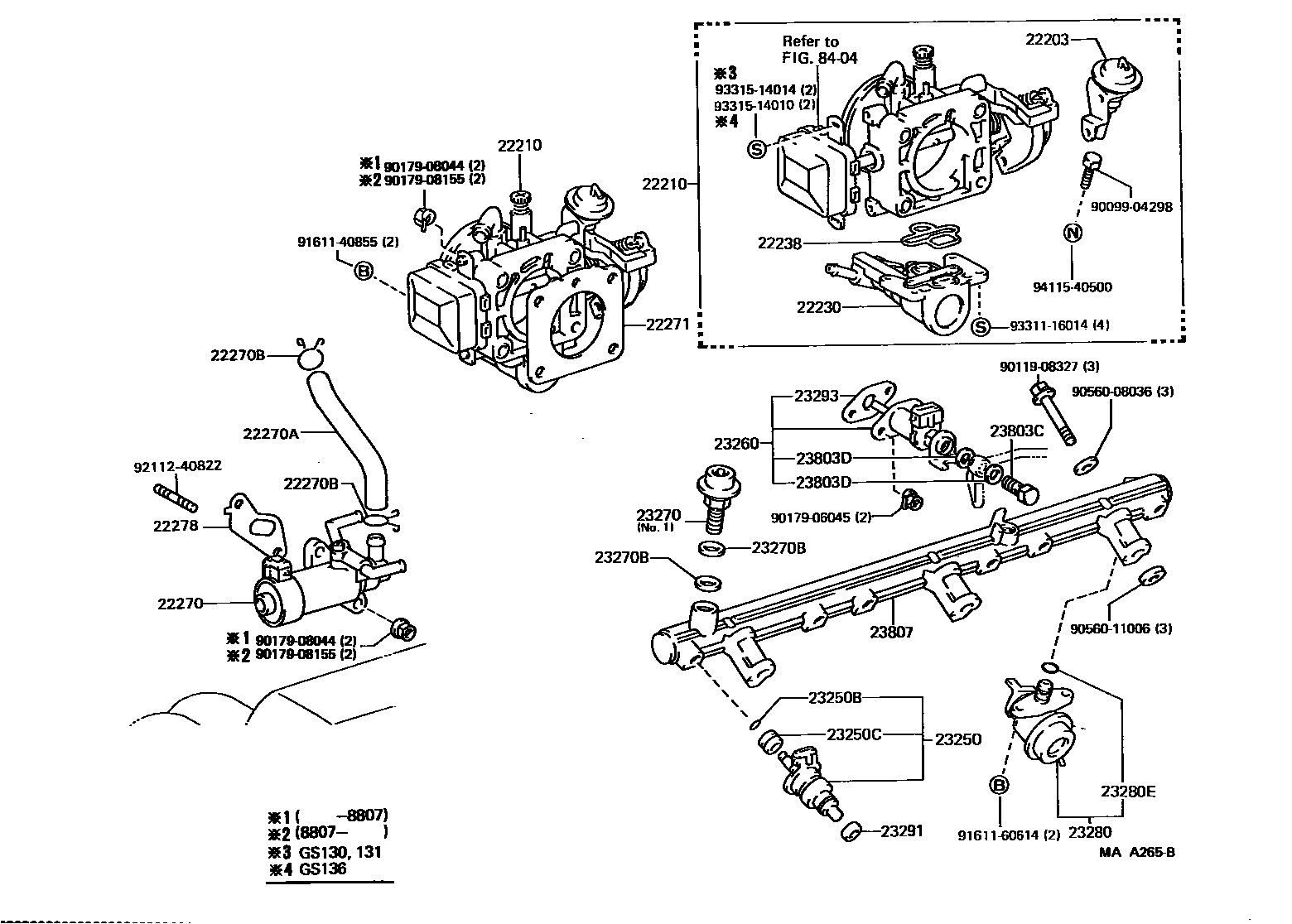

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1��(������ ����-�) 0009 1 0011 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-42300i7MGE..MS135,137198808-199110

main22203-42040i7MGE..MS135,137198709-198808

main22203-46020i1JZGE..JZS13#199008-199110

main22203-70030i1GE..GS13#198709-198908

main22203-70050i1GGE..GS131198709-199110

main22203-70060i1GGZE..GS130,131198709-199110

main22203-70080i1GFE..GS13#198809-199110

22210BODY ASSY, THROTTLE

main22030-50020i1UZFE..UZS131198908-199110

main22210-42170i7MGE..MS135,137198709-198808

sub22210-42380

main22210-42190i7MGE..MS137198709-199110

main22210-42380i7MGE..MS135,137198808-199110

main22210-46050i1JZGE..JZS131..ROY199008-199110

main22210-46070i1JZGE..JZS13#199008-199110

sub22210-46072

main22210-70080i1GE..GS130,131198709-198908

main22210-70160i1GE..GS136198709-198908

main22210-70170i1GGE..GS131..5F198709-198809

main22210-70180i1GGE..GS131..4FC198709-198809

main22210-70210i1GGZE..GS130,131198709-198809

main22210-70240i1GFE..GS13#..MTM198809-199110

main22210-70270i1GFE..GS130,131..ATM198809-199110

main22210-70280i1GGZE..GS130,131198809-199110

main22210-70290i1GGE..GS131..5F198809-199110

main22210-70300i1GGE..GS131..4FC198809-199110

22230VALVE ASSY, AUXILIARY AIR

main22230-70040i1GE..GS13#198709-198908

22238GASKET, AUXILIARY AIR VALVE

main22238-70010i1GE..GS13#198709-198908

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main17630-70030i1GFE..GS13#198809-199110

main22270-42010i7MGE..MS135,137198709-199110

main22270-46010i1JZGE..JZS13#199008-199110

main22270-46020i1JZGE..JZS131..ROY199008-199110

main22270-50010i1UZFE..UZS131198908-199110

main22270-70040i1GE..GS130,131198709-198908

main22270-70090i1GGE..GS131198709-199110

main22270-70100i1GGZE..GS130,131198709-198806

sub22270-70101

sub90445-15041

main22270-70101i1GGZE..GS130,131198806-199110

main22270-70110i1GGZE..GS131..ROY199008-199110

22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)

main17341-50020i1UZFE..UZS131198908-199110

main17343-70020i1GE..GS130,131198709-198908

main17344-70020i1GGZE..GS130,131198709-198809

main17344-70050i1GGZE..GS130,131198809-199110

main17344-70060i1GGZE..GS131..ROY199009-199110

main17344-88301i1GGE..GS131198709-199110

main17347-42020i7MGE..MS135,137198709-199110

main17347-42030i7MGE..MS13#..ROY,ROYG198709-199110

22270BCLIP(FOR AIR HOSE)

main90467-20002i1GE..GS130,131198709-198908

main90467-22007i1UZFE..UZS131198908-199005

sub96134-52100

main90467-22007i1UZFE..UZS131199005-199007

3 WAY SIDE

sub96134-52100

main90467-23003i7MGE..MS135,137198709-198808

sub96134-42300

main90467-23009i1UZFE..UZS131199005-199007

I.S.C.V SIDE

main90467-23009i1UZFE..UZS131199007-199110

main96134-42300i7MGE..MS135,137198808-199110

22271GASKET, THROTTLE BODY

main22271-42020i7MGE..MS135,137198709-199110

main22271-46010i1JZGE..JZS13#199008-199110

main22271-50010i1UZFE..UZS131198908-199110

main22271-70010i1GE..GS13#198709-198908

main22271-70020i1GFE..GS13#198809-199007

sub22271-70021

main22271-70021i1GFE..GS13#199007-199110

main22271-88301i1GGZE,1GGE..GS130,131198709-199110

22278GASKET, IDLE SPEED CONTROL VALVE

main22278-42010i7MGE..MS13#198912-199110

main22278-43011i7MGE..MS135,137198709-198912

sub22278-42010

main22278-50010i1UZFE..UZS131198908-199110

main22278-70010i1GE..GS130,131198709-198908

main22278-88340i1GGZE,1GGE..GS130,131198709-199110

23250INJECTOR ASSY, FUEL

main23209-46010i1JZGE..JZS13#199008-199110

main23209-50010i1UZFE..UZS131198908-199110

main23209-70010i1GE..GS13#198709-198908

sub23209-13010

main23209-70040i1GGZE..GS130,131198709-198908

main23209-70050i1GGE..GS131198709-198809

main23209-70070i1GFE..GS13#198809-199110

main23209-70080i7MGE..MS13#198809-199110

main23209-70090i1GGE..GS131198809-199110

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1GE,1GFE,1GGZE,1GGE..GS13#198709-199110

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i7MGE..MS13#198709-199110

23260INJECTOR ASSY, COLD START FUEL

main23260-49115i7MGE..MS13#198709-199008

sub23260-49116

main23260-49116i7MGE..MS13#199008-199110

main23260-59035i1UZFE..UZS131198908-199110

sub23260-59045

main23260-79075i1GE..GS13#198709-198908

sub23260-79076

main23260-79125i1GGE..GS131198709-199008

sub23260-79126

main23260-79126i1GGE..GS131199008-199110

main23260-79135i1GGZE..GS130,131198709-198806

sub23260-79137

main23260-79136i1GGZE..GS130,131198806-198809

sub23260-79138

main23260-79145i1GFE..GS13#198809-199007

sub23260-79146

main23260-79146i1GFE..GS13#199007-199110

main23260-79155i1GGZE..GS130,131198809-199007

sub23260-79156

main23260-79156i1GGZE..GS130,131199007-199110

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46021i1JZGE..JZS13#199008-199110

NO.2

main23270-28030i1GFE..GS13#198809-199110

NO.1

sub23207-46010

main23270-35010i7MGE..MS135,137198709-198908

sub23270-42010

main23270-50010i1UZFE..UZS131198908-199110

sub23270-50011

main23270-52011i1GGE..GS131198709-199110

sub23207-16020

main23270-70010i1GE..GS136198709-198908

main23270-70020i1GGZE..GS130,131198709-199110

NO.1

sub23270-74030

main23270-70030i1GFE,1GGZE..GS130..WG198908-199110

main23270-70030i1GFE,1GGZE..GS130..WG198908-199110

NO.1

main23270-70030i1GE,1GFE,1GGZE..GS130..WG198709-198908

NO.2

main23270-70050i1GE..GS130,131198709-198908

NO.1

sub23270-42010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1UZFE..UZS131198709-199105

DAMPER SIDE

sub23232-41081

main23232-41081i1GFE,1GGZE,1GGE..GS13#199002-199110

DAMPER SIDE

main90430-12005i1GGE..GS131198709-199008

DELIVERY PIPE SIDE

main90430-12005i1UZFE..UZS131198709-199105

DERIVERY PIPE SIDE

main90430-12026i1JZGE..JZS13#199002-199110

DELIVERY PIPE SIDE

main90430-12026i1UZFE..UZS131199105-199110

DERIVERY PIPE SIDE

main90430-14002i1GE..GS13#198709-198908

DELIVERY PIPE SIDE

main90430-14008i1JZGE..JZS13#199008-199110

DAMPER SIDE

main90430-17002i7MGE..MS135,137198709-199007

DAMPER SIDE

main90430-17006i7MGE..MS13#199007-199110

23280REGULATOR ASSY, FUEL PRESSURE

main23280-42010i7MGE..MS135,137198709-198908

main23280-42040i7MGE..MS13#198908-199110

main23280-46010i1JZGE..JZS13#199008-199110

main23280-50010i1UZFE..UZS131198908-199110

main23280-70020i1GE..GS136198709-198908

main23280-70030i1GGE..GS131198709-199110

main23280-70040i1GGZE..GS130,131198709-198908

sub23280-70090

main23280-70050i1GE..GS130,131198709-198908

main23280-70070i1GFE..GS13#198809-199110

main23280-70090i1GGZE..GS130,131198908-199110

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GE,1GFE..GS13#198709-199110

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1GE,1GFE,1GGZE,1GGE..GS13#198709-199110

23293GASKET, COLD START INJECTOR

main23293-42010i7MGE..MS13#198912-199110

main23293-50010i1UZFE..UZS131198908-199110

main23293-62020i1GGE..GS131199001-199110

main23293-70020i1GGZE..GS130,131198709-199102

sub23293-70021

main23293-70021i1GGZE..GS130,131199102-199110

main23293-74010i7MGE..MS135,137198709-199001

sub23293-42010

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003i1GE..GS13#198709-199110

main90401-08006i1GE,1GFE,1GG#..GS13#198808-198904

sub90401-08003

main90401-10038i1UZFE..UZS131198908-199110

main90430-12026i1JZGE..JZS13#199008-199110

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90401-12023i1JZGE..JZS13#199008-199110

main90430-08005i1GE,1GFE,1GG#..GS13#198709-199008

main90430-08012i1GFE,1GGZE,1GGE..GS13#199002-199110

main90430-10012i1UZFE..UZS131199105-199110

main90430-10204i1UZFE..UZS131198908-199105

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-42010i7MGE..MS135,137198709-198809

main23807-42020i7MGE..MS135,137198809-199110

main23807-46010i1JZGE..JZS13#199008-199110

sub23807-46011

main23807-50010i1UZFE..UZS131198908-199110

sub23807-50011

main23807-70020i1GE..GS13#198709-198908

main23807-70040i1GFE..GS13#198809-199110

main23807-88301i1GGZE,1GGE..GS130,131198709-199110

8404

9009904298

main90099-04298

9011908327

main90119-08327

9017906045

main90179-06045

9017908044

main90179-08044

9017908155

main90179-08155

9056008036

main90560-08036

9056011006

main90560-11006

9161140855

main91611-40855

9161160614

main91611-60614

9211240822

main92112-40822

9331116014

main93311-16014

9331514010

main93315-14010

9331514014

main93315-14014

9411540500

main94115-40500
