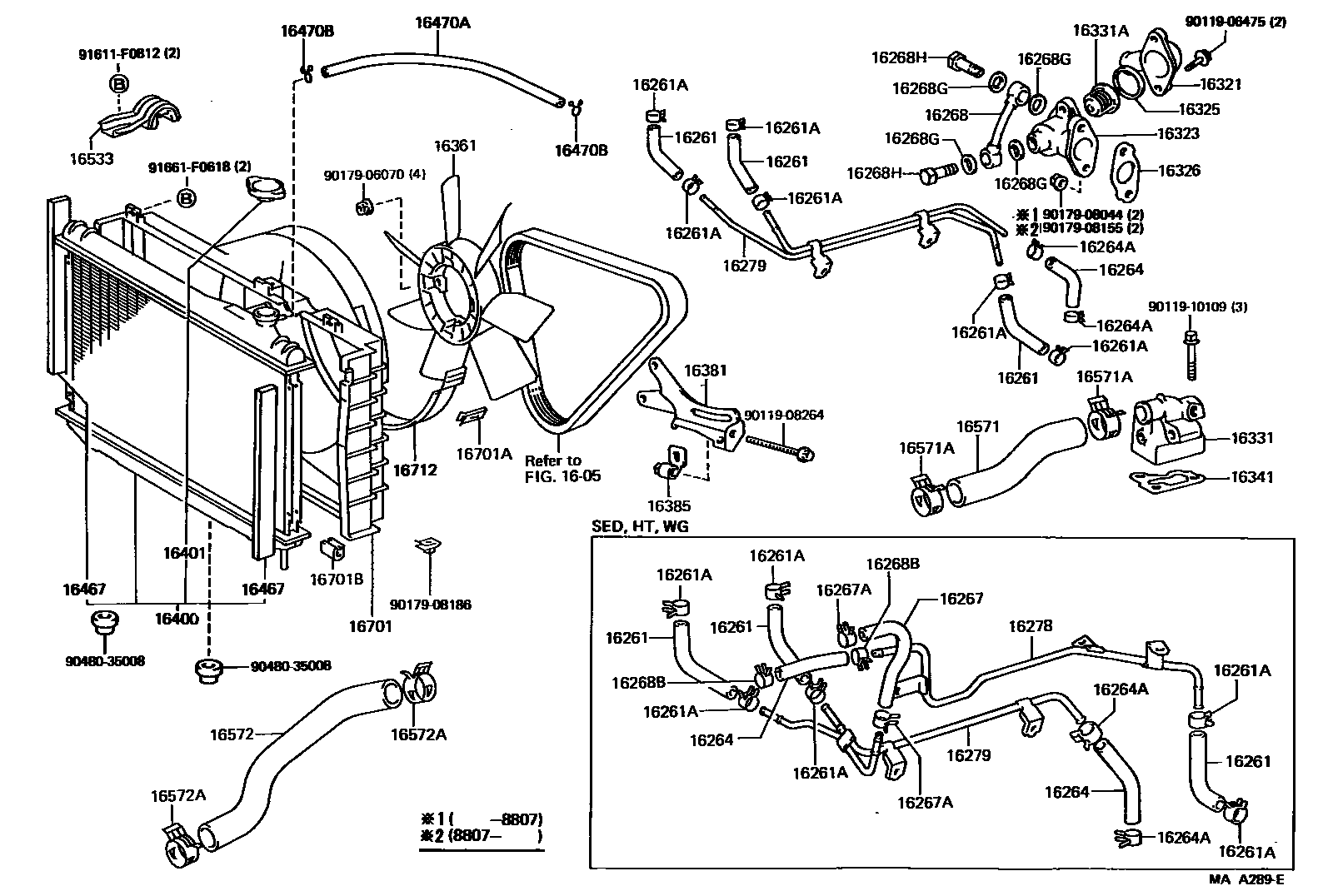

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

1605

16261HOSE, WATER BY-PASS

main16261-46020i1JZGE..JZS13#199008-199110

main16261-54021i2L,2LT#..LS13#198709-198908

main16261-54110i2L,2LT#..LS13#198908-199110

main16261-70020i1GE..GS13#198709-198908

sub16261-70030

main16261-70050i1GFE..GS130,131198809-199008

sub16261-70051

main16261-70051i1GFE..GS13#199008-199110

main16261-70060i1GGP..GS130198908-199110

main16261-88300i1GGZE,1GGE..GS130,131198709-199110

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GE..GS13#198709-198809

sub96135-51300

main90467-13050i1JZGE..JZS13#199008-199110

sub96135-51300

main90467-13051i1GE..GS13#198809-199110

sub96135-51300

main90467-15004i2L,2LT#..LS13#198709-198909

main90467-15022i2L,2LT#..LS13#198909-199110

main90467-20005i1GGP..GS130198908-199110

sub96134-41900

main90467-26003i1GGZE,1GGE..GS130,131198709-199110

sub90467-26007

16264HOSE, WATER BY-PASS, NO.2

main16264-46010i1JZGE..JZS13#199008-199110

sub16264-46040

main16264-54010i2L,2LT..LS13#198709-198908

main16264-54050i2LTHE..LS130198709-198908

main16264-54070i2L,2LT..LS13#198908-199110

main16264-54110i2LTHE..LS130,131198908-199004

main16264-54130i2LTHE..LS130,131199004-199110

main16264-70060i1GFE..GS13#198809-199110

main16264-70070i1GGP..GS130198908-199110

main99555-10100i1GE..GS130,131198709-198908

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GE..GS13#198709-198809

sub96135-51300

main90467-13050i1JZGE..JZS13#199008-199110

sub96135-51300

main90467-13051i1GE..GS13#198809-199110

sub96135-51300

main90467-15004i2L,2LT#..LS13#198709-198909

main90467-15022i2L,2LT#..LS13#198909-199110

main90467-22004i1GGP..GS130199106-199110

sub90467-21010

main90467-23001i1GGP..GS130198908-199106

sub96134-52100

16267HOSE, WATER BY-PASS, NO.3

main16267-42020i7MGE..MS135,137198709-199110

main16267-54010i2L..LS136198709-198908

main16267-54030i2L,2LT..LS130198709-198908

main16267-54040i2L,2LT..LS13#198908-199110

main16267-70020i1GE..GS130,131198709-198908

main16267-88302i1GGP..GS130198908-199110

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-13001i1GE..GS130,131198709-198809

sub96135-51300

main90467-13051i1GE..GS130,131198809-198908

sub96135-51300

main90467-15004i2L,2LT..LS13#198709-198909

main90467-15022i2L,2LT..LS13#198909-199110

main96135-41300i7MGE..MS135,137198808-199110

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-41150iMP..MS130198709-198908

main16268-42030i7MGE..MS135,137198709-198809

sub16268-42041

sub16268-42051

main16268-42050i7MGE..MS135,137198809-198910

sub16268-42051

main16268-42051i7MGE..MS13#198910-199110

main16268-46010i1JZGE..JZS13#199008-199105

sub16268-46011

main16268-46011i1JZGE..JZS13#199105-199110

main16268-50020i1UZFE..UZS131198908-199110

main16268-70011i1GE..GS13#198709-198908

main16268-70020i1GGZE..GS130,131198709-198809

sub16268-70021

main16268-70030i1GFE..GS13#198809-199104

sub16268-70031

main16268-70031i1GFE..GS13#199104-199110

main16268-70040i1GGZE..GS130,131198809-199008

sub16268-70041

main16268-70041i1GGZE..GS130,131199008-199110

main16268-73130i3YP..YS130198709-198908

main16268-73141i3YPE..YS130198908-199110

main16268-88301i1GGP,1GGE..GS130,131198709-199006

sub16268-88302

main16268-88302i1GGP,1GGE..GS130,131199006-199110

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main90467-13001i1GE..GS130,131198709-198809

sub96135-51300

main90467-13051i1GE..GS130,131198809-198908

sub96135-51300

16268GGASKET(FOR WATER BY-PASS PIPE)

main16347-70010i1GGZE..GS130,131198709-198802

sub16347-88300

main16347-88300i1GGZE..GS130,131198802-199110

sub16347-70011

main16347-88300i1GGZE..GS131..ROY199008-199110

sub16347-70011

main90430-18012i1GE..GS13#198709-198908

main90430-22006i7MGE..MS135,137198709-198912

sub90430-22008

main90430-22008i7MGE..MS13#198912-199110

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-18006i1GE..GS13#198709-198908

main90401-22004i7MGE..MS135,137198709-199110

16278PIPE, WATER BY-PASS, NO.2

main16278-46010i1JZGE..JZS13#199008-199110

main16278-70040i1GE..GS130,131198709-198908

main16278-70050i1GGZE..GS130,131198709-199110

main16278-70060i1GFE..GS13#198809-199009

main16278-70061i1GFE..GS13#199009-199110

main16278-70070i1GGP..GS130198908-199110

main16278-88300i1GGE..GS131198709-198807

main16278-88301i1GGE..GS131198807-199012

sub16278-88302

main16278-88302i1GGE..GS131199012-199110

16279PIPE, WATER BY-PASS, NO.3

main16279-70020i1GE..GS130,131198709-198908

main16279-70030i1GE..GS136198709-198908

main16279-70060i1GGP..GS130198908-199110

16321INLET, WATER

main16321-46010i1JZGE..JZS13#199008-199108

main16321-46040i1JZGE..JZS13#199108-199110

main16321-50010i1UZFE..UZS131198908-199110

main16321-70011i1GE,1GGZE..GS13#198709-199110

main16321-70030i1GFE..GS13#198809-199110

main16321-71010i3YP#..YS130198709-199110

main16321-88301i1GGP,1GGE..GS130,131198709-199110

16323HOUSING, WATER INLET

main16032-50020i1UZFE..UZS131198908-199110

sub16032-50021

main16323-70011i1GE..GS13#198709-198908

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1UZFE..UZS131198908-199110

main16325-63010i1GE,1GG#..GS13#198709-199110

sub16325-63011

16326GASKET, WATER INLET HOUSING, NO.2

main16325-46010i1JZGE..JZS13#199008-199110

main16326-70011i1GE,1GGP,1GGE..GS13#198709-199110

sub16326-70012

16331OUTLET, WATER

main16304-70011i1GGZE..GS130,131198709-199110

main16331-41090iMP..MS130198709-198908

main16331-42021i7MGE..MS135,137198709-199110

main16331-46020i1JZGE..JZS13#199008-199110

main16331-54030i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD198709-198908

main16331-54050i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD198709-198908

main16331-54130i2LTHE..LS130,131..SALEX198908-199110

main16331-54140i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD198908-199110

sub16331-54210

main16331-70030i1GE..GS13#198709-198908

main16331-70060i1GFE..GS13#198809-199110

main16331-71010i3YP..YS130198709-198908

main16331-73010i3YPE..YS130198908-199110

main16331-88300i1GGP,1GGE..GS130,131198709-199110

16331ATHERMOSTAT

main90916-03054iMP..MS130198709-198808

sub90916-03083

main90916-03055i7MGE..MS135,137198709-198808

sub90916-03078

main90916-03055i7MGE..MS135,137198709-198808

sub90916-03078

main90916-03060i1GE..GS13#198709-198908

sub90916-03090

main90916-03062i2L,2LT#..LS13#198709-198805

sub90916-03072

main90916-03063i1GGZE,1GGE..GS130,131198709-199110

main90916-03069i3YPE..YS130198908-199110

sub90916-03046

main90916-03069i3YP..YS130198709-198908

sub90916-03046

main90916-03072i2L,2LT#..LS13#198805-199110

sub90916-03099

main90916-03078iMP..MS130198808-198908

main90916-03078i7MGE..MS135,137198808-199110

main90916-03081i1GFE..GS13#198809-199110

main90916-03082i3YPE..YS130198908-199110

main90916-03083iMP..MS130198808-198908

main90916-03084i1UZFE..UZS131198908-199110

sub90916-03129

main90916-03092i1JZGE..JZS13#199008-199108

sub90916-03093

main90916-03093i1JZGE..JZS13#199108-199110

main90916-03095i1GGP..GS130199107-199110

16341GASKET, WATER OUTLET

main16341-35010i1GFE..GS13#198908-199110

main16341-35010i1GFE..GS130,131198709-198908

main16341-38021iMP..MS130198905-198908

main16341-41010iMP..MS130198709-198905

sub16341-38021

main16341-54011i2L,2LT#..LS13#198709-198808

sub16341-54030

main16341-54030i2L,2LT#..LS13#198808-199110

sub16341-54040

main16341-70010i1GE..GS13#198709-198908

main16341-70020i1GGZE..GS130,131198709-199110

main16341-70030i1GFE..GS130,131198809-198908

sub16341-70031

main16341-70030i1GFE..GS13#198908-199009

sub16341-70031

main16341-70031i1GFE..GS13#199009-199110

sub16341-70040

main16341-71010i3YP#..YS130198709-198912

sub16341-71011

main16341-71011i3YPE..YS130198912-199110

16361FAN

main16361-38010i3YP#..YS130198709-199110

main16361-41100i7MGE,MP..MS13#198709-199110

main16361-42030i1UZFE..UZS131198908-199110

NO.2

main16361-46040i1JZGE..JZS13#199008-199110

NO.1

main16361-50030i1UZFE..UZS131198908-199110

NO.1

main16361-54020i2L,2LT#..LS13#198709-198908

main16361-54060i2L,2LT#..LS13#198908-199110

main16361-70020i1GE..GS13#198709-198908

main16361-70030i1GGZE..GS130,131198709-199110

main16361-70040i1GFE..GS13#198809-199110

main16361-88300i1GGP,1GGE..GS130,131198709-199110

16381BAR, FAN BELT ADJUSTING

main16381-42011i7MGE..MS135,137198809-199110

main16381-42021i7MGE..MS135,137198709-198809

main16381-43010iMP..MS130198709-198908

main16381-54011i2L,2LT#..LS13#198709-198908

main16381-54070i2L,2LT#..LS13#198908-199110

sub16381-54071

main16381-70021i1GE..GS13#198709-198908

main16381-70031i1GGZE..GS130,131198809-199110

main16381-70040i1GGZE..GS130,131198709-198806

sub16381-70041

sub90179-08040

main16381-70041i1GGZE..GS130,131198806-198808

sub16381-70042

main16381-70042i1GGZE..GS130,131198808-198809

main16381-70050i1GFE..GS13#198809-199110

main16381-73011i3YP#..YS130198709-199110

main16381-88301i1GGP..GS130198809-199110

main16381-88340i1GGE..GS131198709-198809

16385SLIDER, FAN BELT ADJUSTING

main16385-70011i1GE..GS13#198709-198908

main16385-70020i1GFE..GS13#198809-199110

main16385-71010i3YP#..YS130198709-199110

16400RADIATOR ASSY

main16400-41390iMP..MS130..ATM198709-198908

sub16400-43200

main16400-41400iMP..MS130..4H198709-198908

sub16400-43200

main16400-42160i7MGE..MS135,137198709-199110

main16400-43200i1GE,1GFE,1GGZE,1GGE..GS130,131..ATM198709-199110

main16400-43210i1GE,1GFE,1GGE..GS130,131..MTM198709-199110

sub16400-43200

main16400-43220iMP..MS130..ATM198712-198908

sub16400-43221

main16400-46080i1JZGE..JZS13#199008-199110

main16400-50030i1UZFE..UZS131198908-199110

main16400-54560i2L..LS130198709-198908

sub16400-54580

main16400-54570i2LT..LS130,131;2L..LS136..MTM198709-199110

sub16400-54580

main16400-54580i2L..LS136..4FC198709-199110

main16400-54590i2LTHE..LS130198709-198908

main16400-54790i2LTHE..LS130,131198908-199008

sub16400-54791

main16400-54791i2LTHE..LS130,131199008-199110

main16400-54830i2L..LS130198908-199110

sub16400-54590

main16400-70260i1GE,1GFE..GS136198709-199110

sub16400-43210

main16400-70410i1GGP..GS130..4H198908-199110

sub16400-70421

main16400-70420i1GGP..GS130..ATM198908-199104

sub16400-70421

main16400-70421i1GGP..GS130..ATM199104-199110

main16400-73310i3YP#..YS130..MTM198709-199110

sub16400-73321

main16400-73320i3YP#..YS130..4HC198709-199011

sub16400-73321

main16400-73321i3YPE..YS130..4HC199011-199110

16401CAP SUB-ASSY, RADIATOR

main16401-63010i3YP..YS130198709-199110

main16401-71010i1GE,1GFE..GS136198709-199110

sub16401-54750

main16401-72090i1UZFE..UZS131198908-199110

sub16401-20353

16467SIDE SEAL

main16467-70260i1GE,1GFE..GS136198709-199110

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85319-30280i1JZGE..JZS13#198908-199110

main85343-30270i2L,2LT#..LS13#198709-198908

main85343-30290i1UZFE..UZS131198908-199110

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3YPE..YS130198709-199110

16533SUPPORT, RADIATOR, UPPER

main16505-41010i7MGE,MP..MS13#198709-199110

main16505-70040i1GGP..GS130198908-199110

16571HOSE, RADIATOR, INLET

main16571-41130iMP..MS130198709-198908

main16571-42020i7MGE..MS135,137198709-199110

main16571-46040i1JZGE..JZS13#199008-199110

main16571-54170i2L,2LT#..LS13#198709-198908

main16571-54290i2L,2LT#..LS13#198908-199110

main16571-70160i1GGP,1GGE..GS130,131198709-199110

main16571-70170i1GGZE..GS130,131198709-199110

main16571-70180i1GE..GS13#198709-198908

main16571-70260i1GFE..GS13#198809-199110

main16571-73090i3YP..YS130198709-198908

main16571-73100i3YPE..YS130198908-199110

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i1GE,1GG#..GS13#198709-199011

sub90467-37003

main90467-37001i1GFE..GS13#198809-199009

sub90467-37003

main90467-37002i1GFE,1GG#..GS13#199008-199109

sub90467-37005

main90467-37002i2L,2LT#..LS13#198709-199009

OUTLET SIDE

sub90467-37005

main90467-37002i2L,2LT#..LS13#198908-199009

WATER OUTLET SIDE

sub90467-37005

main90467-37002i3YPE..YS130198709-199011

sub90467-37005

main90467-37006i1JZGE..JZS13#199109-199110

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-41120iMP..MS130198709-198908

main16572-42030i7MGE..MS135,137198709-199110

main16572-46040i1JZGE..JZS13#199008-199108

main16572-46041i1JZGE..JZS13#199108-199110

main16572-54160i2L,2LT#..LS13#198709-198908

main16572-54340i2L,2LT#..LS13#198908-199110

main16572-70130i1GGP,1GGE..GS130,131198709-199110

main16572-70140i1GGZE..GS130,131198709-199110

main16572-70150i1GE..GS13#198709-198908

main16572-70200i1GFE..GS13#198809-199110

sub16572-70240

main16572-73080i3YP#..YS130198709-199110

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i7MGE,MP..MS13#198709-199011

sub90467-37003

main90467-37002i2LTHE..LS130..SALEX199009-199109

sub90467-37005

main90467-37002i3YP..YS130198709-198908

OUTLET SIDE

sub90467-37005

main90467-37002i1GFE..GS13#198809-199108

sub90467-37005

main90467-37002i7MGE..MS13#198908-199009

WATER OUTLET SIDE

sub90467-37005

main90467-37002i7MGE..MS13#198908-199009

WATER PUMP SIDE

sub90467-37005

main90467-37002i3YPE..YS130198709-199011

sub90467-37005

main90467-37002i1JZGE..JZS13#199108-199109

RADIATOR SIDE

sub90467-37005

main90467-37006i3YPE..YS130199109-199110

sub90467-37005

main90467-41004i2L,2LT#..LS13#198908-199110

WATER PUMP SIDE

sub90466-41003

main90467-41007i1JZGE..JZS13#199108-199110

INLET SIDE

sub90467-41002

main96111-10490i2L,2LT#..LS13#198709-198908

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-41090iMP..MS130198709-198908

main16711-42020i7MGE..MS135,137198709-199110

main16711-50020i1UZFE..UZS131198908-199110

NO.1

main16711-50030i1UZFE..UZS131198908-199110

NO.2

main16711-54220i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD198709-198908

main16711-54230i2LTHE..LS130..SALEX198709-198908

main16711-54350i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD198908-199108

sub16711-54351

main16711-54351i2L,2LT#..LS13#..DLX,SDX,SPE,SSL,STD199108-199110

main16711-54360i2LTHE..LS130,131..SALEX198908-199110

main16711-70070i1GE,1GFE,1GGZE,1GGE..GS13#198709-199110

main16711-70120i1GGP..GS130198908-199110

main16711-73100i3YP#..YS130198709-199110

16701ACLIP(FOR FAN SHROUD)

main90468-05109i1JZGE..JZS13#199108-199110

main90468-06013i7MGE,MP..MS13#198709-199110

main90468-06073i1UZFE..UZS131198908-199110

16701BCUSHION, FAN SHROUD

main90541-11002i1JZGE..JZS13#198709-199110

16712SHROUD, FAN, NO.2

main16702-46010i1JZGE..JZS13#199008-199110

main16712-41080i7MGE,MP..MS13#198709-199110

main16712-50020i1UZFE..UZS131198908-199110

main16712-54170i2L,2LT#..LS13#198709-198908

main16712-54260i2L,2LT#..LS13#198908-199110

main16712-70050i1GE,1GFE,1GG#..GS13#198709-199110

main16712-73010i3YP#..YS130198709-199110

9011906475

main90119-06475

9011908264

main90119-08264

9011910109

main90119-10109

9017906070

main90179-06070

9017908044

main90179-08044

9017908155

main90179-08155

9017908186

main90179-08186

9048035008

main90480-35008

91611F0812

main91611-F0812

91661F0618

main91661-F0618

47 parts on this diagram · 21 diagrams in section
