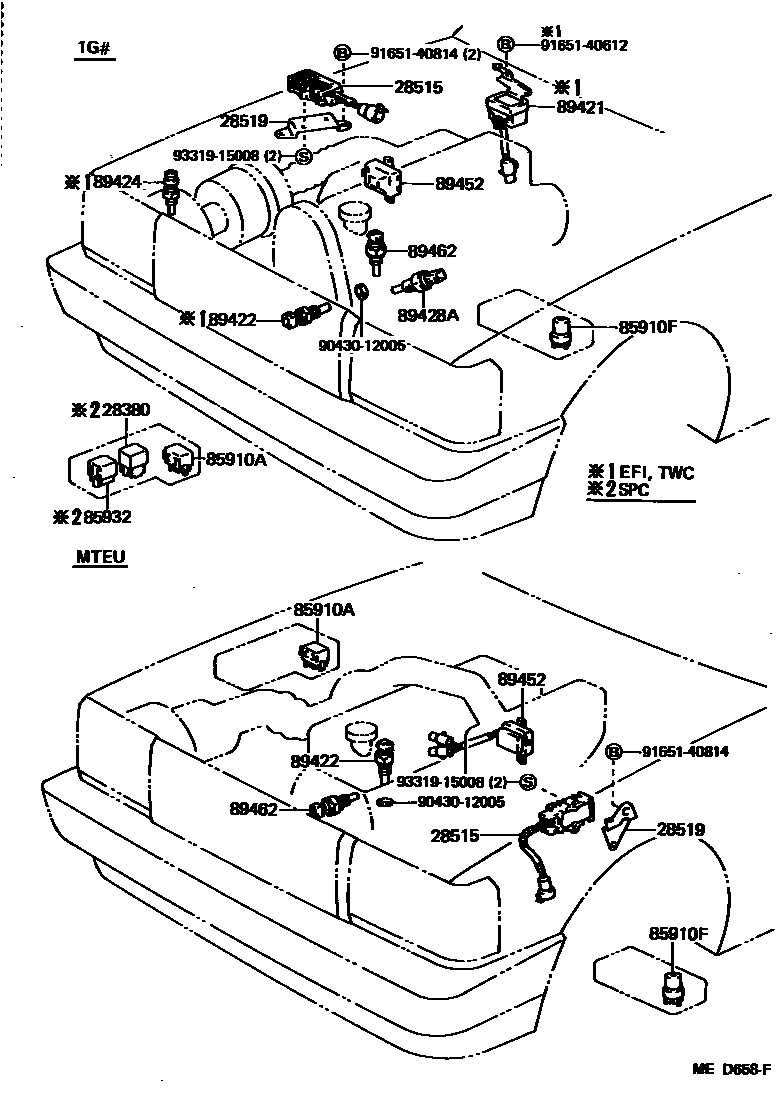

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28380RELAY ASSY, FUEL PUMP

main28380-30010i1GGZEU..GS121198509-198708

28515RESISTOR, SOLENOID

main28515-43020i1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12#198308-198509

main28515-43021i1GGZEU,6MGEU..GS121,MS125198509-198708

main28515-70010i1GE#..GS120,126198308-198708

28519BRACKET, SOLENOID RESISTOR

main28519-30030i1GGEU,5MGEU,6MGEU,MTEU..GS121,MS12#198308-198509

main28519-30040i1GE#..GS120,126198308-198708

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iGS12#,MS12#..EFI,SPC,TBO,TWC198308-198708

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGS12#,MS12#..EFI,SPC,TBO,TWC198308-198708

85932RELAY, SUPERCHARGER

main85932-30010iGS121..SPC198509-198708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-30030iGS120198308-198509

main89421-30050iGS120198509-198708

main89421-30060iGS121..TWC198509-198708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iGS12#,MS12#..EFI,SPC,TBO,TWC198308-198708

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iGS120198308-198509

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-14070iGS120198509-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22010iGS126198509-198708

main89452-28010iMS123,125198308-198509

main89452-28040iGS120,121,MS125..EFI,TWC198509-198708

main89452-30040iGS121,MS120..TBO,TWC198308-198509

89462SWITCH, START INJECTOR TIME

main89462-30011iMS12#..TBO,TWC198308-198708

main89462-40010iGS12#198308-198708

9043012005

main90430-12005

9165140612

main91651-40612

9165140814

main91651-40814

9331915008

main93319-15008

16 parts on this diagram · 3 diagrams in section
