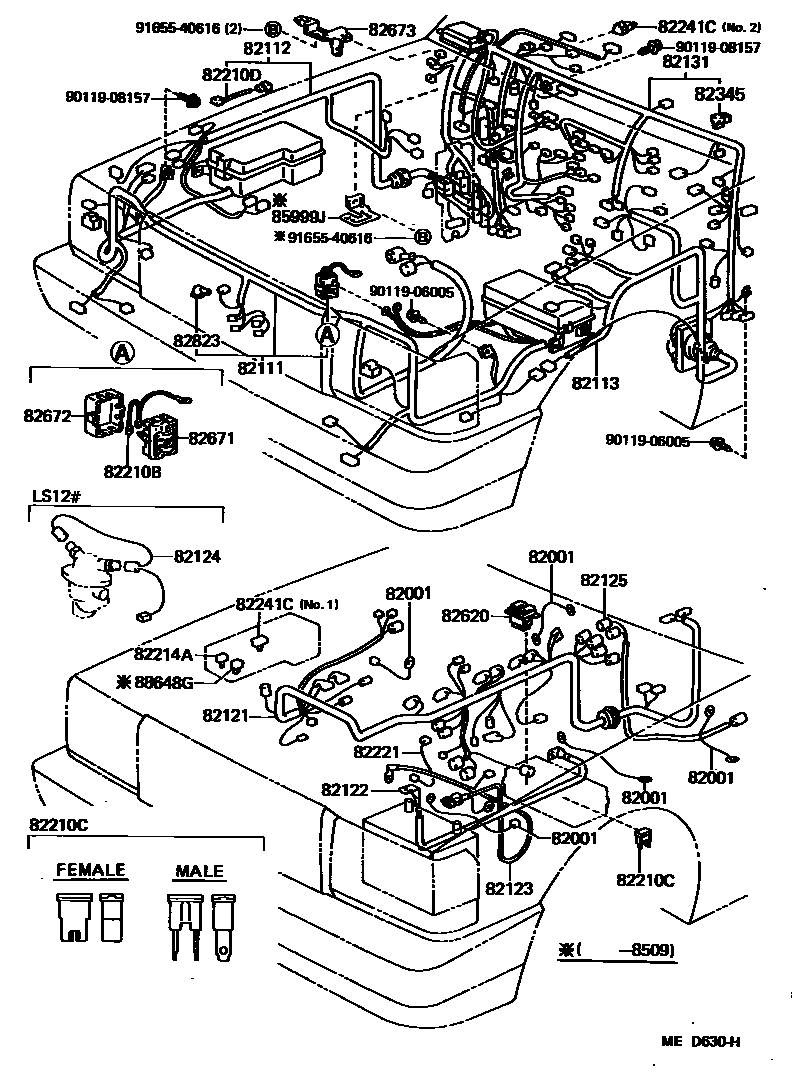

Toyota CROWN — WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82121WIRE, ENGINE
82122WIRE, ENGINE, NO.2
82123WIRE, ENGINE, NO.3
82124WIRE, ENGINE, NO.4
82131WIRE, COWL
82210BFUSIBLE LINK
82210CFUSIBLE LINK
82210DFUSIBLE LINK
82214AWIRE, LAMP
82221WIRE, OIL PRESSURE SWITCH
82241CWIRE, RELAY
82345DIODE
82673BRACKET, JUNCTION BLOCK
85999JBRACKET, CIRCUIT BREAKER
88648GWIRE, AIR CONDITIONER
9011906005
9011908157
9165540616
27 parts on this diagram · 10 diagrams in section
WIRING & CLAMP for Toyota CROWN
This section contains 153 genuine Toyota parts for the WIRING & CLAMP system of the Toyota CROWN. Key components include: CABLE, BOND, NO.1, WIRE SUB-ASSY, BODY GROUND, NO.1, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE ROOM, NO.2, WIRE, ENGINE ROOM, NO.3.
