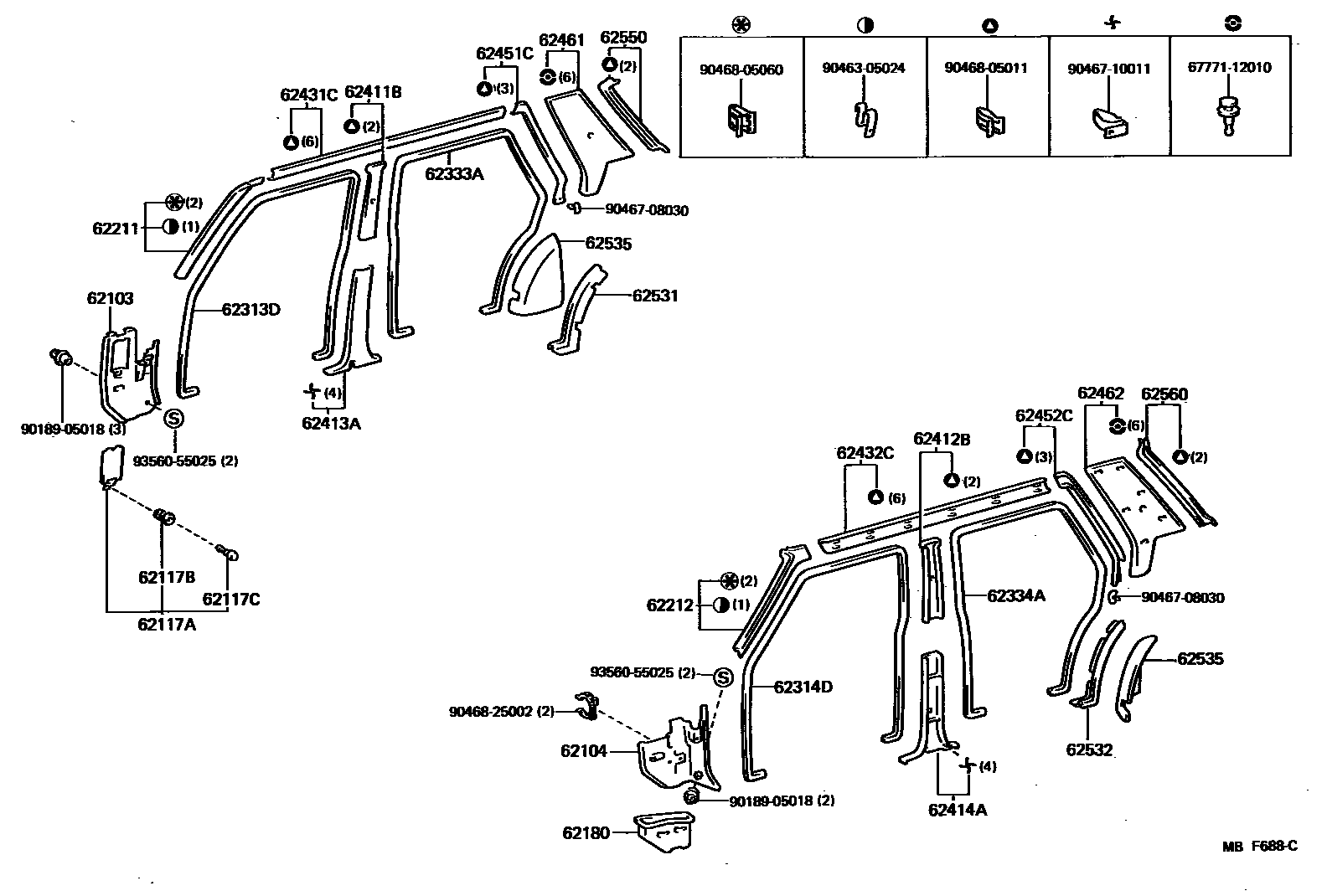

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-30210-02iGS120,121,LS120,MS120..(HT,SED)..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-30210

main62101-30210-04iGS120,121,LS120,MS120..SAL,SPE,SSL198308-198708

BLUE,BLUE,TRIM8#

sub62101-30210

main62101-30210-05iGS120,121,LS120,MS120..SAL,SPE198308-198509

BEIGE,BEIGE,TRIM4#

sub62101-30210

main62101-30210-06iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub62101-30210

main62101-30210-12iGS120,121,LS120..SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub62101-30210

main62101-30230-02iGS120,LS120..WG..SAL198405-198509

ECLAIR,ATHLETE,DEEP MAROON,RED/MAROON,TRIM3#

main62101-30230-02iGS121,MS123,125..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62101-30230-02iGS121,MS123,125..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62101-30230-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62101-30230-04iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,BLUE,BLUE,TRIM8#

main62101-30230-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

main62101-30230-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

main62101-30230-04iGS121,MS123,125..ROY198308-198708

BLUE,BLUE,TRIM8#

main62101-30230-04iGS121,MS123,125..ROY198308-198708

*EXT,BLUE,BLUE,TRIM8#

main62101-30230-05iGS121,MS123,125..ROY198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62101-30230-05iGS120,LS120,MS120..(HT,SED)..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main62101-30230-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

main62101-30230-06iGS121,MS125198509-198708

BROWN,BROWN,TRIM4#

main62101-30230-06iGS121,MS125198509-198708

*EXT,BROWN,BROWN,TRIM4#

main62101-30230-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

main62101-30230-12iGS121,MS125198509-198708

*EXT,MAROON,MAROON,TRIM3#

main62101-30230-12iGS121,MS125198509-198708

MAROON,MAROON,TRIM3#

main62101-30230-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

main62101-30230-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

main62101-30240-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-30230-02iGS120,121,LS120,MS120..SPE198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-30230

main62102-30230-04iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

sub62102-30230

main62102-30230-05iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub62102-30230

main62102-30230-06iGS120,LS120..SPE198509-198708

BROWN,BROWN,TRIM4#

sub62102-30230

main62102-30230-12iGS120,LS120..SPE198509-198708

MAROON,MAROON,TRIM3#

sub62102-30230

main62102-30240-02iGS120,LS120..WG..SAL198405-198509

ECLAIR,ATHLETET DEEP MAROON,RED/MAROON,TRIM3#

sub62102-30240

main62102-30240-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62102-30240

main62102-30240-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-30240

main62102-30240-04iGS120,121,LS120,MS12#..ROY,SAL,SSL198308-198708

BLUE,BLUE,TRIM8#

sub62102-30240

main62102-30240-04iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,BLUE,BLUE,TRIM8#

sub62102-30240

main62102-30240-05iGS120,121,LS120,MS12#..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62102-30240

main62102-30240-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub62102-30240

main62102-30240-12iGS120,121,LS120,MS125..ROY,SAL,SSL198509-198708

MAROON,MAROON,TRIM3#

sub62102-30240

main62102-30250-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-30010-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62117-30010-02iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62117-30010-04iGS12#,LS12#,MS12#,YS120198308-198509

BLUE,BLUE,TRIM8#

main62117-30010-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

main62117-30011-02iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main62117-30011-04iGS12#,LS12#,MS12#,YS120198509-198708

BLUE,BLUE,TRIM8#

main62117-30011-06iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08031-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

sub90467-08031

main90467-08031-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

sub90467-08031

main90467-08031-12iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08031

main90467-08031-12iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08031

main90467-08031-22iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub90467-08031

main90467-08031-26iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub90467-08031

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-05015-04iGS12#,LS12#,MS12#,YS120198308-198708

BLUE,BLUE,TRIM8#

sub90467-05015

main90467-05015-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198509

BEIGE,BEIGE,TRIM4#

sub90467-05015

main90467-05015-12iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-05015

main90467-05015-12iGS120,121,LS120,MS12#..(HT,SED)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-05015

main90467-05015-22iGS120,121,LS120,MS125..ROY,SAL,SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub90467-05015

main90467-05015-26iGS120,121,LS120,MS125..(HT,SED)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub90467-05015

62180BOX ASSY, COWL SIDE TRASH, LH

main62174-30020-02iGS120..(HT,SED)..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62174-30020

main62174-30020-04iGS120,121,LS120..SAL,SSL198308-198708

BLUE,BLUE,TRIM8#

sub62174-30020

main62174-30020-05iGS120,LS120..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62174-30020

main62174-30020-06iGS120,121,LS120..(HT,SED)..(SAL,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub62174-30020

main62174-30020-12iGS120,121,LS120..SAL,SSL198509-198708

MAROON,MAROON,TRIM3#

sub62174-30020

main62180-30020-02iGS120,LS120,MS120..(HT,SED)..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62180-30020-02iGS121,MS123,125..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62180-30020-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62180-30020-02iGS120,LS120..WG..SAL198405-198509

ECLAIR,ATHLETE,DEEP MAROON,RED/MAROON,TRIM3#

main62180-30020-04iGS121,MS123,125..ROY198308-198708

*EXT,BLUE,BLUE,TRIM8#

main62180-30020-04iGS120,LS120,MS120..(HT,SED)..SAL198308-198708

BLUE,BLUE,TRIM8#

main62180-30020-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

main62180-30020-04iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,BLUE,BLUE,TRIM8#

main62180-30020-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

main62180-30020-05iGS120,LS120,MS120..(HT,SED)..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62180-30020-05iGS121,MS123,125..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main62180-30020-06iGS121,MS125198509-198708

*EXT,BROWN,BROWN,TRIM4#

main62180-30020-06iGS120,LS120..(HT,SED)..SAL198509-198708

BROWN,BROWN,TRIM4#

main62180-30020-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

main62180-30020-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

main62180-30020-12iGS121,MS125198509-198708

*EXT,MAROON,MAROON,TRIM3#

main62180-30020-12iGS121,MS125198509-198708

MAROON,MAROON,TRIM3#

main62180-30020-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

main62180-30020-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

62211GARNISH, FRONT PILLAR, RH

main62211-30100-04iGS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

main62211-30100-05iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main62211-30100-06iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main62211-30110-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62211-30110-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62211-30110-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62211-30110-04iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62211-30110-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

main62211-30110-06iGS120,LS120..SED..SDX198509-198708

BROWN,BROWN,TRIM4#

main62211-30110-12iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62211-30120-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

main62211-30130-04iMS120..SDX198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62211-30140-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62211-30140-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62211-30140-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62211-30140-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62211-30140-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

62212GARNISH, FRONT PILLAR, LH

main62212-30100-04iGS120,126,LS12#..(V,WG)..(4FC,4HC,5F)198308-198708

BLUE,BLUE,TRIM8#

main62212-30100-05iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main62212-30100-06iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main62212-30110-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62212-30110-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62212-30110-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62212-30110-04iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

BLUE,BLUE,TRIM8#

main62212-30110-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

main62212-30110-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62212-30110-12iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62212-30120-04iMS120..SDX198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62212-30130-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62212-30130-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62212-30130-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62212-30130-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62212-30130-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main62212-30140-04iLS120..STD;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H198308-198708

BLUE,BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-30070-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62311-30070

main62311-30070-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62311-30070

main62311-30070-04iGS120,LS120,MS120..SED..SDX198308-198708

BLUE,BLUE,TRIM8#

sub62311-30070

main62311-30070-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

W/WEATHER STRIP,BLUE,BLUE,TRIM8#

sub62311-30070

main62311-30070-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

W/WEATHER STRIP,BEIGE,BEIGE,TRIM4#

sub62311-30070

main62311-30070-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

sub62311-30070

main62311-30070-06iGS120,LS120..WG..(4FC,5F)..SDX198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62311-30070

main62311-30070-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

W/WEATHERSTRIP,BROWN,SEPIA BROWN,TRIM4#

sub62311-30070

main62311-30070-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62311-30070

main62311-30080-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62311-30080-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main62311-30080-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62311-30080-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,SEPIA BROWN,TRIM4#

main62311-30080-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main62313-30080-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62313-30080-05iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62313-30080-06iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62312-30060-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62312-30060

main62312-30060-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62312-30060

main62312-30060-04iGS120,LS120,MS120..SED..SDX198308-198708

W/WEATHER STRIP,BLUE,BLUE,TRIM8#

sub62312-30060

main62312-30060-04iGS120,LS120,MS120..SED..SDX198308-198708

BLUE,BLUE,TRIM8#

sub62312-30060

main62312-30060-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62312-30060

main62312-30060-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

W/WEATHER STRIP,BEIGE,BEIGE,TRIM4#

sub62312-30060

main62312-30060-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62312-30060

main62312-30060-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

W/WEATHERSTRIP,BROWN,SEPIA BROWN,TRIM4#

sub62312-30060

main62312-30060-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub62312-30060

main62312-30070-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62312-30070-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main62312-30070-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62312-30070-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,SEPIA BROWN,TRIM4#

main62312-30070-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main62313-30080-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62313-30080-05iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62313-30080-06iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62331-30020-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62331-30020

main62331-30020-04iGS120,LS120,MS120..SED..SDX198308-198708

BLUE,BLUE,TRIM8#

sub62331-30020

main62331-30020-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

sub62331-30020

main62331-30020-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62331-30020

main62331-30020-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62331-30020

main62331-91702-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62331-91702

main62331-91702-04iGS120,LS120..WG198308-198708

W/WEATHERSTRIP,BLUE,BLUE,TRIM8#

sub62331-91702

main62331-91702-05iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

sub62331-91702

main62331-91702-06iGS120,LS120..WG..(4FC,5F)..SDX198509-198708

W/WEATHERSTRIP,BROWN,SEPIA BROWN,TRIM4#

sub62331-91702

main62331-91702-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub62331-91702

main62333-30040-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62333-30040-05iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main62333-30040-06iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62333-30060-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main62333-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62333-30060-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main62333-91702-04iGS120,126,LS126..(V,WG)..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

main62333-91702-05iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62333-91702-06iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,SEPIA BROWN,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62332-30020-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62332-30020

main62332-30020-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

sub62332-30020

main62332-30020-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

sub62332-30020

main62332-30020-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub62332-30020

main62332-30020-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62332-30020

main62332-91702-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62332-91702

main62332-91702-04iGS120,LS120..WG198308-198708

W/WEATHERSTRIP,BLUE,BLUE,TRIM8#

sub62332-91702

main62332-91702-05iGS120,LS120..WG..(4FC,4HC,5F)198308-198509

W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#

sub62332-91702

main62332-91702-06iGS120,LS120..WG..(4FC,5F)..SDX198509-198708

W/WEATHERSTRIP,BROWN,SEPIA BROWN,TRIM4#

sub62332-91702

main62332-91702-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub62332-91702

main62333-30040-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main62333-30040-05iGS120,LS120..(4FC,5F)..DLX198308-198509

BEIGE,BEIGE,TRIM4#

main62333-30040-06iGS120,LS120..(4FC,4HC,5F)..DLX198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62333-30060-04iGS120,121,LS120,MS12#..HT198308-198708

BLUE,BLUE,TRIM8#

main62333-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62333-30060-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62333-30060-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

main62333-91702-04iGS120,126,LS126..(V,WG)..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

main62333-91702-05iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62333-91702-06iGS120,126,LS126..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,SEPIA BROWN,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30210-02iGS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30210-04iGS120,126,LS12#..V,WG198308-198708

BLUE,BLUE,TRIM8#

main62411-30210-05iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30210-06iGS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main62411-30210-12iGS120..SED..SAL198509-198708

MAROON,MAROON,TRIM3#

main62411-30220-02iGS120,LS120,MS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30220-02iGS120,LS120,MS120..SED..SAL198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62411-30220-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62411-30220-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

main62411-30220-04iGS120,LS120,MS120..SED..SAL198308-198708

*EXT,BLUE,BLUE,TRIM8#

main62411-30220-04iGS121,MS123,125..SED198308-198708

BLUE,BLUE,TRIM8#

main62411-30220-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30220-05iGS120,LS120,MS120..SED..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62411-30220-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main62411-30220-06iGS121,MS125..SED198509-198708

*EXT,BROWN,BROWN,TRIM4#

main62411-30220-12iGS121,MS125..SED198509-198708

*EXT,MAROON,MAROON,TRIM3#

main62411-30220-12iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main62411-30230-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30230-04iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198708

BLUE,BLUE,TRIM8#

main62411-30230-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30230-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

main62411-30230-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main62411-30240-02iGS120,LS120,MS120..HT..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62411-30240-02iGS121,MS123,125..HT..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62411-30240-04iGS121,MS123,125..HT..ROY198308-198509

*EXT,BLUE,BLUE,TRIM8#

main62411-30240-04iGS120,LS120,MS120..HT..SAL198308-198708

BLUE,BLUE,TRIM8#

main62411-30240-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

main62411-30240-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

main62411-30240-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main62411-30240-05iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62411-30240-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

main62411-30240-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

main62411-30240-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62411-30240-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62411-30240-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

main62411-30240-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30210-02iGS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30210-04iGS120,126,LS12#..V,WG198308-198708

BLUE,BLUE,TRIM8#

main62412-30210-05iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30210-06iGS120..SED..SAL198509-198708

BROWN,BROWN,TRIM4#

main62412-30210-12iGS120..SED..SAL198509-198708

MAROON,MAROON,TRIM3#

main62412-30220-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main62412-30220-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30220-02iGS120,LS120,MS120..SED..SAL198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62412-30220-04iMS120..4FC..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

main62412-30220-04iGS121,MS123,125..SED198308-198708

BLUE,BLUE,TRIM8#

main62412-30220-04iGS120,LS120,MS120..SED..SAL198308-198708

*EXT,BLUE,BLUE,TRIM8#

main62412-30220-05iGS121,MS123,125..SED198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62412-30220-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30220-06iGS121,MS125..SED198509-198708

*EXT,BROWN,BROWN,TRIM4#

main62412-30220-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

main62412-30220-12iGS120,LS120..(SED,WG)..SAL198509-198708

*EXT,MAROON,MAROON,TRIM3#

main62412-30220-12iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main62412-30230-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30230-04iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198708

BLUE,BLUE,TRIM8#

main62412-30230-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30230-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

main62412-30230-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

main62412-30240-02iGS121,MS123,125..HT..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62412-30240-02iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

main62412-30240-04iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BLUE,BLUE,TRIM8#

main62412-30240-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

main62412-30240-04iGS121,MS123,125..HT..ROY198308-198708

BLUE,BLUE,TRIM8#

main62412-30240-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

main62412-30240-05iGS120,LS120,MS120..HT..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main62412-30240-05iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

main62412-30240-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

main62412-30240-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

main62412-30240-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62412-30240-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

main62412-30240-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

main62412-30240-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62041-30030-02iGS120,LS120,MS120..SED..SAL198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30030

main62041-30030-02iGS120,LS120,MS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30030

main62041-30030-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30030

main62041-30030-04iMS120..4FC..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

sub62041-30030

main62041-30030-04iGS121,MS123,125..SED198308-198708

BLUE,BLUE,TRIM8#

sub62041-30030

main62041-30030-04iGS120,LS120..(SED,WG)..SAL198308-198708

*EXT,BLUE,BLUE,TRIM8#

sub62041-30030

main62041-30030-05iGS121,MS123,125..SED198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62041-30030

main62041-30030-05iGS120,LS120,MS120..SED..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62041-30030

main62041-30030-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

sub62041-30030

main62041-30030-06iGS120,LS120..SED..SAL198509-198708

*EXT,BROWN,BROWN,TRIM4#

sub62041-30030

main62041-30030-12iGS120,LS120..(SED,WG)..SAL198509-198708

*EXT,MAROON,MAROON,TRIM3#

sub62041-30030

main62041-30030-12iGS120,LS120..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

sub62041-30030

main62041-30040-02iGS121,MS123,125..HT..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30040

main62041-30040-02iGS120,LS120,MS120..HT..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62041-30040

main62041-30040-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

sub62041-30040

main62041-30040-04iGS121,MS123,125..HT..ROY198308-198708

BLUE,BLUE,TRIM8#

sub62041-30040

main62041-30040-04iGS121,MS123,125..HT..ROY198308-198509

*EXT,BLUE,BLUE,TRIM8#

sub62041-30040

main62041-30040-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

sub62041-30040

main62041-30040-05iGS121,MS123,125..HT..ROY198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62041-30040

main62041-30040-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

sub62041-30040

main62041-30040-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62041-30040

main62041-30040-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

sub62041-30040

main62041-30040-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

sub62041-30040

main62041-30040-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

sub62041-30040

main62041-30040-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62041-30040

main62041-30040-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

sub62041-30040

main62413-30120-02iGS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62413-30120-04iGS120,126,LS12#,MS120,YS120..DLX,SDX,STD198308-198708

BLUE,BLUE,TRIM8#

main62413-30120-05iGS120..SED..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main62413-30120-06iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main62413-30120-12iGS120..SED..SAL198509-198708

MAROON,MAROON,TRIM3#

main62413-30130-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62413-30130-04iGS120,121,LS120..SPE,SSL198308-198708

BLUE,BLUE,TRIM8#

main62413-30130-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main62413-30130-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

main62413-30130-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62042-30030-02iGS121,MS123,125..SED198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30030

main62042-30030-02iGS121,MS123,125..SED198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30030

main62042-30030-02iGS120,LS120..WG..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30030

main62042-30030-04iGS120,LS120..(SED,WG)..SAL198308-198708

*EXT,BLUE,BLUE,TRIM8#

sub62042-30030

main62042-30030-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,BLUE,BLUE,TRIM8#

sub62042-30030

main62042-30030-04iGS121,MS123,125..SED198308-198708

BLUE,BLUE,TRIM8#

sub62042-30030

main62042-30030-05iGS121,MS123,125..SED198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62042-30030

main62042-30030-05iGS121,MS123,125..SED198308-198509

BEIGE,BEIGE,TRIM4#

sub62042-30030

main62042-30030-06iGS121,MS125..SED198509-198708

BROWN,BROWN,TRIM4#

sub62042-30030

main62042-30030-06iGS120,LS120..SED..SAL198509-198708

*EXT,BROWN,BROWN,TRIM4#

sub62042-30030

main62042-30030-12iGS121,MS125..SED198509-198708

MAROON,MAROON,TRIM3#

sub62042-30030

main62042-30030-12iGS120,LS120..(SED,WG)..SAL198509-198708

*EXT,MAROON,MAROON,TRIM3#

sub62042-30030

main62042-30040-02iGS121,MS123,125..HT..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30040

main62042-30040-02iGS121,MS123,125..HT..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62042-30040

main62042-30040-04iGS121,MS123,125..HT..ROY198308-198708

BLUE,BLUE,TRIM8#

sub62042-30040

main62042-30040-04iGS121,MS123,125..HT..ROY198308-198509

*EXT,BLUE,BLUE,TRIM8#

sub62042-30040

main62042-30040-04iGS120,LS120..SSL198704-198708

IVENT,BLUE,BLUE,TRIM8#

sub62042-30040

main62042-30040-04iGS120,LS120..SSL198609-198612

THE 40TH,BLUE,BLUE,TRIM8#

sub62042-30040

main62042-30040-05iGS120,LS120,MS120..HT..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub62042-30040

main62042-30040-05iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62042-30040

main62042-30040-06iGS120,LS120..SSL198704-198708

IVENT,BROWN,BROWN,TRIM4#

sub62042-30040

main62042-30040-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62042-30040

main62042-30040-06iGS120,LS120..SSL198609-198612

THE 40TH,BROWN,BROWN,TRIM4#

sub62042-30040

main62042-30040-12iGS120,LS120..SSL198704-198708

IVENT,MAROON,MAROON,TRIM3#

sub62042-30040

main62042-30040-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62042-30040

main62042-30040-12iGS120,LS120..SSL198609-198612

THE 40TH,MAROON,MAROON,TRIM3#

sub62042-30040

main62414-30050-02iGS120..SED..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62414-30050-04iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

main62414-30050-05iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main62414-30050-06iGS120,126,LS12#..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main62414-30050-12iGS120..SED..SAL198509-198708

MAROON,MAROON,TRIM3#

main62414-30060-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62414-30060-04iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198708

BLUE,BLUE,TRIM8#

main62414-30060-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main62414-30060-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

main62414-30060-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62431-30050-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62431-30050-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62431-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62431-30050-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62431-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62431-30060-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62431-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62431-30060-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62431-30060-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62432-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62432-30050-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62432-30050-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

main62432-30050-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62432-30050-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62432-30060-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62432-30060-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62432-30060-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62432-30060-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62432-30060-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-30040-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62451-30040-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62451-30040-05iGS120,LS120..SED..SDX198308-198509

BEIGE,BEIGE,TRIM4#

main62451-30040-06iGS120,LS120..SED..SDX198509-198708

BROWN,BROWN,TRIM4#

main62451-30040-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62451-30050-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62451-30050-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62451-30050-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62451-30050-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62451-30050-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-30030-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62452-30030-04iGS120,LS120,MS120..SED..SDX198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62452-30030-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main62452-30030-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main62452-30030-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main62452-30040-02iGS120,121,LS120,MS12#..HT198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main62452-30040-04iGS120,121,LS120,MS12#..HT198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62452-30040-05iGS120,121,LS120,MS12#..HT198308-198509

BEIGE,BEIGE,TRIM4#

main62452-30040-06iGS120,121,LS120,MS125..HT198509-198708

BROWN,BROWN,TRIM4#

main62452-30040-12iGS120,121,LS120,MS125..HT198509-198708

MAROON,MAROON,TRIM3#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-30230-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30230-05iGS120,LS120..(4FC,5F)..DLX198308-198708

BEIGE,BEIGE,TRIM4#

main62470-30240-04iGS120,LS120,MS120..SED..SDX198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30240-05iGS120,LS120..SED..SDX198308-198708

BEIGE,BEIGE,TRIM4#

main62470-30250-04iMS120..4FC..SDX198510-198708

Q PACKAGE,LIGHT BLUE,BLUE,TRIM8#

main62470-30250-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30250-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62470-30260-04iGS120,121,LS120,MS120..SPE198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30260-05iGS120,121,LS120,MS120..SPE198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62470-30270-04iGS120,121,LS120,MS12#..HT..(ROY,SAL,SSL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62470-30270-05iGS120,121,LS120,MS12#..HT..(ROY,SAL,SSL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62470-30280-02iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON,DEEP MAROON,TRIM3#

62462GARNISH, ROOF SIDE TRIM, LH

main62480-30190-04iGS120,LS120,MS120,YS120..DLX,STD198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30190-05iGS120,LS120..(4FC,5F)..DLX198308-198708

BEIGE,BEIGE,TRIM4#

main62480-30200-04iGS120,LS120,MS120..SED..SDX198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30200-05iGS120,LS120..SED..SDX198308-198708

BEIGE,BEIGE,TRIM4#

main62480-30210-04iMS120..(4H,4HC)..SDX198510-198708

Q PACKAGE,LIGHT BLUE,BLUE,TRIM8#

main62480-30210-04iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30210-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62480-30220-04iGS120,121,LS120,MS120..SPE198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30220-05iGS120,121,LS120,MS120..SPE198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62480-30230-04iGS120,121,LS120,MS12#..HT..(ROY,SAL,SSL)198308-198708

LIGHT BLUE,BLUE,TRIM8#

main62480-30230-05iGS120,121,LS120,MS12#..HT..(ROY,SAL,SSL)198308-198708

BEIGE,BEIGE,TRIM3#,4#

main62480-30240-02iMS125..HT..4FC198501-198509

THE 30TH LIMITED,DEEP MAROON,DEEP MAROON,TRIM3#

62531COVER, WHEEL HOUSE TRIM, RH

main62610-30010iGS120,121,LS120,MS120,YS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)198308-198708

62532COVER, WHEEL HOUSE TRIM, LH

main62620-30010iGS120,121,LS120,MS120,YS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)198308-198708

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-30020iGS120,121,LS120,MS12#,YS120..HT,SED198308-198708

main62611-91704iGS120,LS120..WG..SAL198308-198708

62550GARNISH ASSY, REAR BODY PILLAR, RH

main62581-30060-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62581-30060

main62581-30060-04iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

sub62581-30060

main62581-30060-05iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

sub62581-30060

main62581-30060-06iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62581-30060

main62581-30060-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62581-30060

main62581-30070-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62581-30070

main62581-30070-04iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198708

BLUE,BLUE,TRIM8#

sub62581-30070

main62581-30070-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

sub62581-30070

main62581-30070-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

sub62581-30070

main62581-30070-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub62581-30070

main62581-30080-02iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62581-30080

main62581-30080-02iGS120,LS120,MS120..HT..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62581-30080

main62581-30080-04iGS120,LS120,MS120..HT..SAL198308-198708

BLUE,BLUE,TRIM8#

sub62581-30080

main62581-30080-04iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BLUE,BLUE,TRIM8#

sub62581-30080

main62581-30080-05iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62581-30080

main62581-30080-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

sub62581-30080

main62581-30080-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62581-30080

main62581-30080-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62581-30080

62560GARNISH ASSY, REAR BODY PILLAR, LH

main62582-30050-02iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62582-30050

main62582-30050-04iGS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

sub62582-30050

main62582-30050-05iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub62582-30050

main62582-30050-06iGS120,LS120..SED..(4FC,4HC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub62582-30050

main62582-30050-12iGS120,121,LS120,MS125..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62582-30050

main62582-30060-02iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62582-30060

main62582-30060-04iGS120,121,LS120..SPE,SSL198308-198708

BLUE,BLUE,TRIM8#

sub62582-30060

main62582-30060-05iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

sub62582-30060

main62582-30060-06iGS120,121,LS120..SPE,SSL198509-198708

BROWN,BROWN,TRIM4#

sub62582-30060

main62582-30060-12iGS120,121,LS120..SPE,SSL198509-198708

MAROON,MAROON,TRIM3#

sub62582-30060

main62582-30070-02iGS120,LS120,MS120..HT..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub62582-30070

main62582-30070-02iGS121,MS123,125..HT..ROY198308-198509

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62582-30070

main62582-30070-04iGS120,LS120,MS120..HT..SAL198308-198509

*EXT,BLUE,BLUE,TRIM8#

sub62582-30070

main62582-30070-04iGS120,LS120,MS120..HT..SAL198308-198708

BLUE,BLUE,TRIM8#

sub62582-30070

main62582-30070-05iGS121,MS123,125..HT..ROY198308-198509

BEIGE,BEIGE,TRIM4#

sub62582-30070

main62582-30070-05iGS121,MS123,125..HT..ROY198308-198509

*EXT,BEIGE,BEIGE,TRIM4#

sub62582-30070

main62582-30070-06iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

sub62582-30070

main62582-30070-12iGS120,121,LS120,MS125..HT..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub62582-30070

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9018905018

main90189-05018

9046305024

main90463-05024

9046708030

main90467-08030

9046710011

main90467-10011

9046805011

main90468-05011

9046805060

main90468-05060

9046825002

main90468-25002

9356055025

main93560-55025

36 parts on this diagram · 4 diagrams in section
