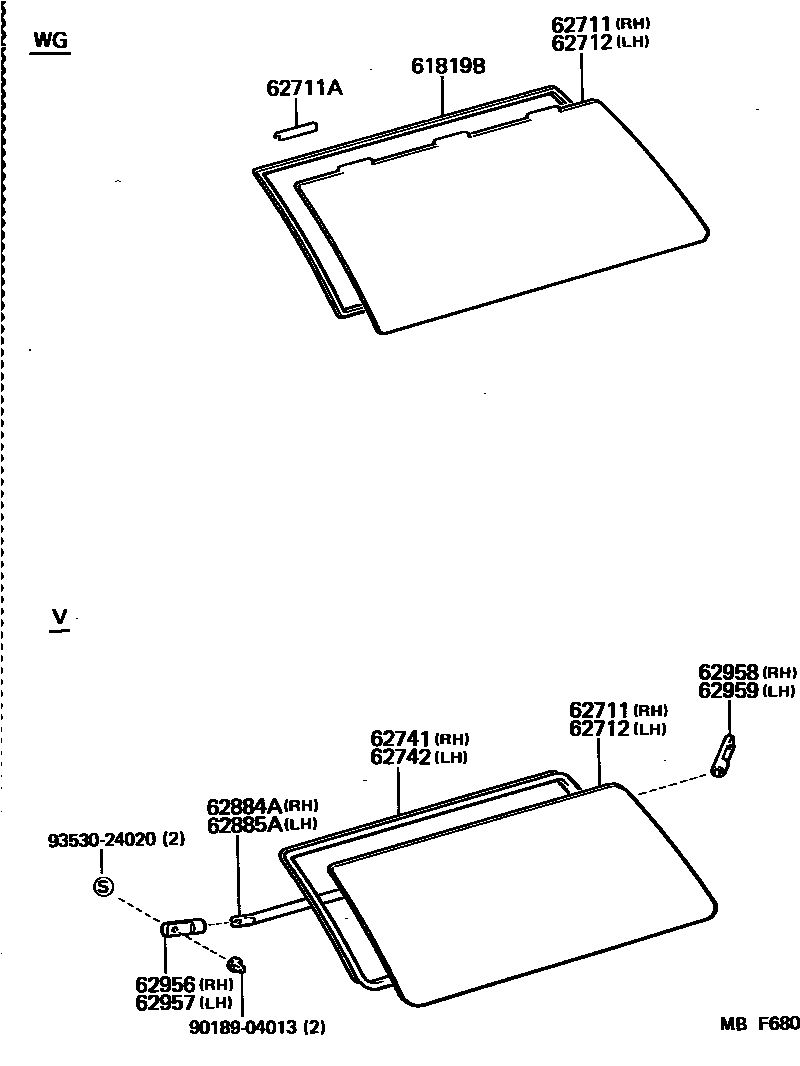

QUARTER WINDOW

61819BSEAL, QUARTER WINDOW REAR SHIELD

main61819-91701×2iGS120,LS120..WG198308-198708

62711GLASS, QUARTER WINDOW, RH

main62711-91707iGS126,LS126..STD198308-198708

*TEM,T=3.5

main62711-91708iGS126,LS126..DLX,SDX198308-198708

*TT,T=3.5

main62711-91709iGS120,LS120..WG198308-198708

*TT,T=3.5

main62711-91710iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT,T=3.5

62711ASPACER, QUARTER WINDOW GLASS, NO.1

main62785-12010×4iGS120,LS120..WG198308-198708

62712GLASS, QUARTER WINDOW, LH

main62712-91707iGS126,LS126..STD198308-198708

*TEM,T=3.5

main62712-91708iGS126,LS126..DLX,SDX198308-198708

*TT,T=3.5

main62712-91709iGS120,LS120..WG198308-198708

*TT,T=3.5

main62712-91710iGS120,LS120..WG..SAL198308-198708

BRONZE,*TT,T=3.5

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-91701iGS126,LS126198308-198708

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-91701iGS126,LS126198308-198708

62884AGUARD, QUARTER WINDOW, RH

main62884-91703iGS126,LS126198308-198708

62885AGUARD, QUARTER WINDOW, LH

main62885-91702iGS126,LS126198308-198708

62956BRACKET, GUARD PIPE QUARTER WINDOW, FRONT RH

main62885-91601iGS126,LS126198308-198408

main62885-91601-03iGS126,LS126198408-198708

GRAY,COOL GRAY

62957BRACKET, GUARD PIPE QUARTER WINDOW, FRONT LH

main62885-91601iGS126,LS126198308-198408

main62885-91601-03iGS126,LS126198408-198708

GRAY,COOL GRAY

62958BRACKET, GUARD PIPE QUARTER WINDOW, REAR RH

main62885-91601iGS126,LS126198308-198408

main62885-91601-03iGS126,LS126198408-198708

GRAY,COOL GRAY

62959BRACKET, GUARD PIPE QUARTER WINDOW, REAR LH

main62885-91601iGS126,LS126198308-198408

main62885-91601-03iGS126,LS126198408-198708

GRAY,COOL GRAY

9018904013

main90189-04013

9353024020

main93530-24020

14 parts on this diagram · 1 diagram in section
